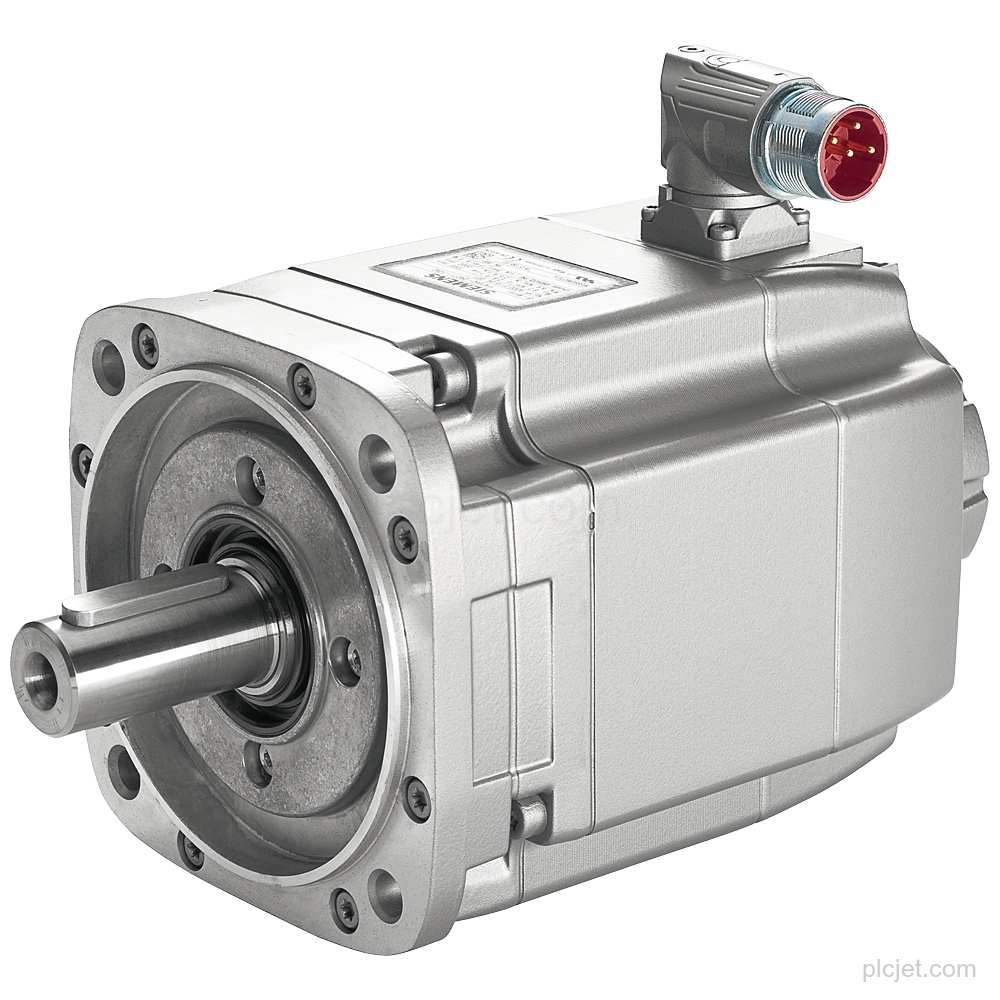

Product Overview
Technical Summary
| Rated power | PN=2 kW |
|---|---|
| DC-link voltage | UDC=600 V |
| Torque | M0=28 Nm (100 K) |
| Rated speed | NN=3000 rpm |
| Feedback | Multi-pole resolver (resolver P=4) |
| Brake | Holding brake |
| Mounting | Flange 1, frame size IM B5 (IM V1, IM V3) |
| Shaft | Plain shaft, tolerance N |
| Protection | IP65; DE flange IP67 |
| Cooling | Naturally cooled |
| Power connection | Rotatable power connector |
Key Features
PN=2 kW, NN=3000 rpm, and M0=28 Nm (100 K).
Multi-pole resolver (resolver P=4) and holding brake.
Plain shaft with tolerance N; flange 1 and frame size IM B5 (IM V1, IM V3).
Naturally cooled with a rotatable power connector and KTY temperature sensor.
Degree of protection IP65; DE flange IP67.
Product cancellation.
Frequently Asked Questions
What is the exact motor line item?
It is the Siemens 1FK7086-4CF71-1SH2 SIMOTICS S synchronous motor. Product lifecycle: Product cancellation.
Which feedback, brake, and connector configuration does it have?
It has a multi-pole resolver (resolver P=4), a holding brake, a KTY temperature sensor, and a rotatable power connector.
What mechanical and protection details should be retained in the quotation?
Retain the plain shaft with tolerance N, flange 1, frame size IM B5 (IM V1, IM V3), IP65 protection, and IP67 protection at the DE flange.
Which project details should accompany this line item?
Include the requested quantity, destination, schedule context, and any additional BOM lines with the quotation request.
