Product Overview
Technical Summary

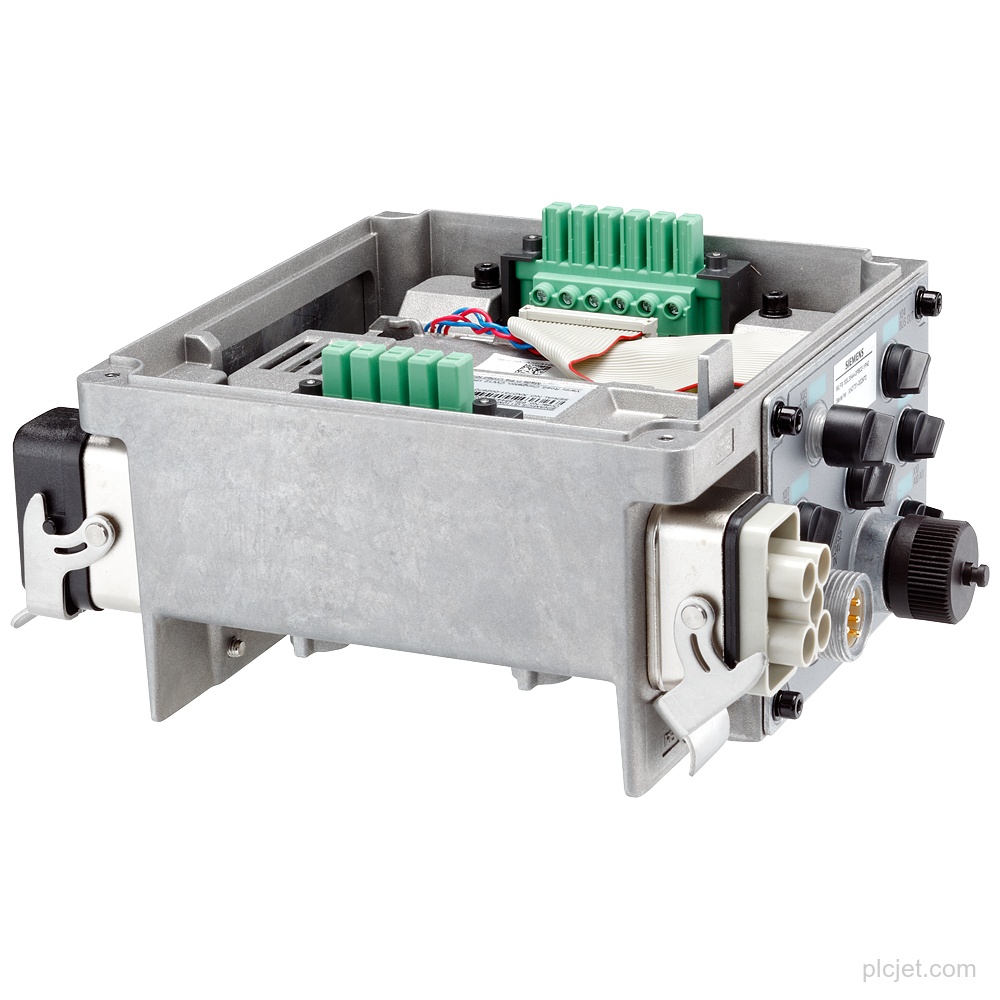

| Product type | SINAMICS G110M Control Unit CU240M DP Q |
|---|---|
| Communication interface | PROFIBUS DP |
| Digital inputs | 4 DI |
| Digital outputs | 2 DO |
| Analog inputs | 2 AI |
| Safety input | 1 F-DI PTC/KTY connection |
| Braking control | EM brake control |
| Degree of protection | IP65 |
| Ambient temperature | -10 to +55 °C |
| Configuration exclusion | Without Power Module |
Key Features
SINAMICS G110M Control Unit CU240M DP Q with PROFIBUS DP.
4 DI, 2 DO, 2 AI and 1 F-DI PTC/KTY connection.
EM brake control is included in the stated configuration.
Degree of protection: IP65; ambient temperature: -10 to +55 °C.
Dimensions: 105 x 171 x 216 mm (H x W x D); without Power Module.
Product cancellation.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6SL3544-0PB02-1PA0, a SINAMICS G110M Control Unit CU240M DP Q with PROFIBUS DP.
Which connections does this configuration have?
It has 4 DI, 2 DO, 2 AI and 1 F-DI PTC/KTY connection.
What protection and ambient temperature are specified?
The degree of protection is IP65, and the ambient temperature is -10 to +55 °C.
Is the Power Module included?
It is without Power Module. For a project quotation, provide the requested quantity, destination, schedule context and any additional BOM lines.
