Product Overview
Technical Summary
| Product lifecycle | Active Product |
|---|---|
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated power (HO) | 18.50 kW | 25.00 hp |
| Rated power (LO) | 22.00 kW | 30.00 hp |
| Maximum output current | 76.00 A |
| Output frequency | 0 … 200 Hz vector control; 0 … 550 Hz V/f control |
| Connections | M6 bolt; 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors |
| Protection and frame size | IP20 / UL open type; FSD |
Key Features
Rated power is 18.50 kW | 25.00 hp HO, with 38.00 A rated current and 76.00 A maximum output current.
Rated power is 22.00 kW | 30.00 hp LO, with 45.00 A rated current.
Input has 3 AC phases, 380 … 480 V ±10 % line voltage, and 47 … 63 Hz line frequency.
Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control.

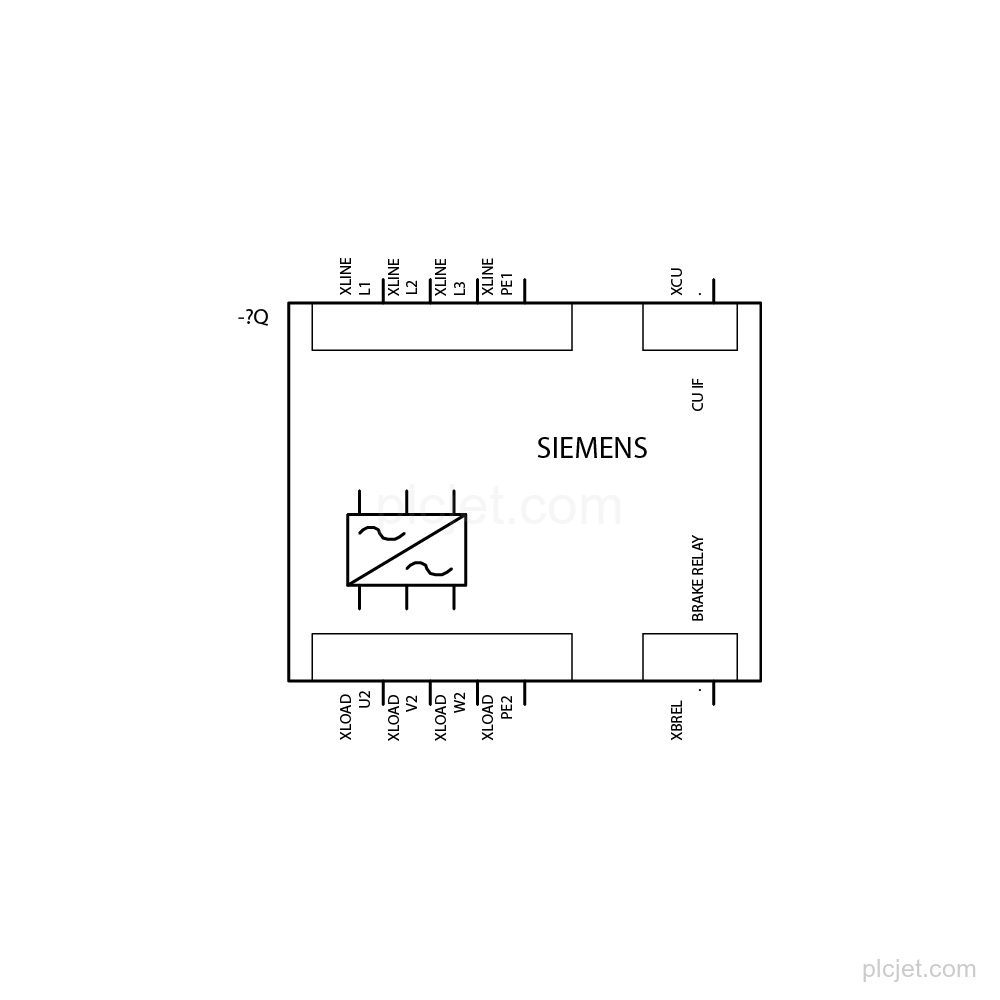

Line-side and motor-end connections use M6 bolts with 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors. Maximum motor cable length is 50 m (164.04 ft) shielded or 100 m (328.08 ft) unshielded.
Frame size is FSD. The module is without filter, control unit, and BOP, with IP20 / UL open type protection.
Frequently Asked Questions
What is the exact product identity?
It is Siemens 6SL3225-0BE31-8UA0, a SINAMICS G120 PM250 power module.
What are the HO and LO output ratings?
HO is 18.50 kW | 25.00 hp with 38.00 A rated current. LO is 22.00 kW | 30.00 hp with 45.00 A rated current.
Which connection details should be retained for verification?
Both the line side and motor end use M6 bolts and accept 10.00 … 35.00 mm2 (AWG 8 … AWG 2) conductors.
What is included in this configuration, and what should be listed separately?
It is without a filter, control unit, and BOP. Include the requested quantity, destination, schedule context, and any additional BOM lines in the project inquiry.
