Product Overview
Technical Summary
| Rated power (HO) | 45.00 kW | 60.00 hp |
|---|---|
| Rated power (LO) | 55.00 kW | 75.00 hp |
| Input voltage | 380 … 480 V ±10 % |
| Input frequency | 47 … 63 Hz |
| Rated current (HO) | 90.00 A output; 84.00 A input |
| Rated current (LO) | 110.00 A output; 102.00 A input |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Connections | M8 bolt; 25.00 … 120.00 mm2 conductors |
| Degree of protection | IP20 / UL open type |
Key Features
SINAMICS G120 PM250 power module without filter, without control unit and BOP, with regeneration possibility.
Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz. Output: 3 AC, 45.00 kW HO or 55.00 kW LO rated power.
HO output: 45 kW for 200% 3 s, 150% 57 s, 100% 240 s at 0 … 50 °C. LO output: 55 kW for 150% 3 s, 110% 57 s, 100% 240 s at 0 … 40 °C.

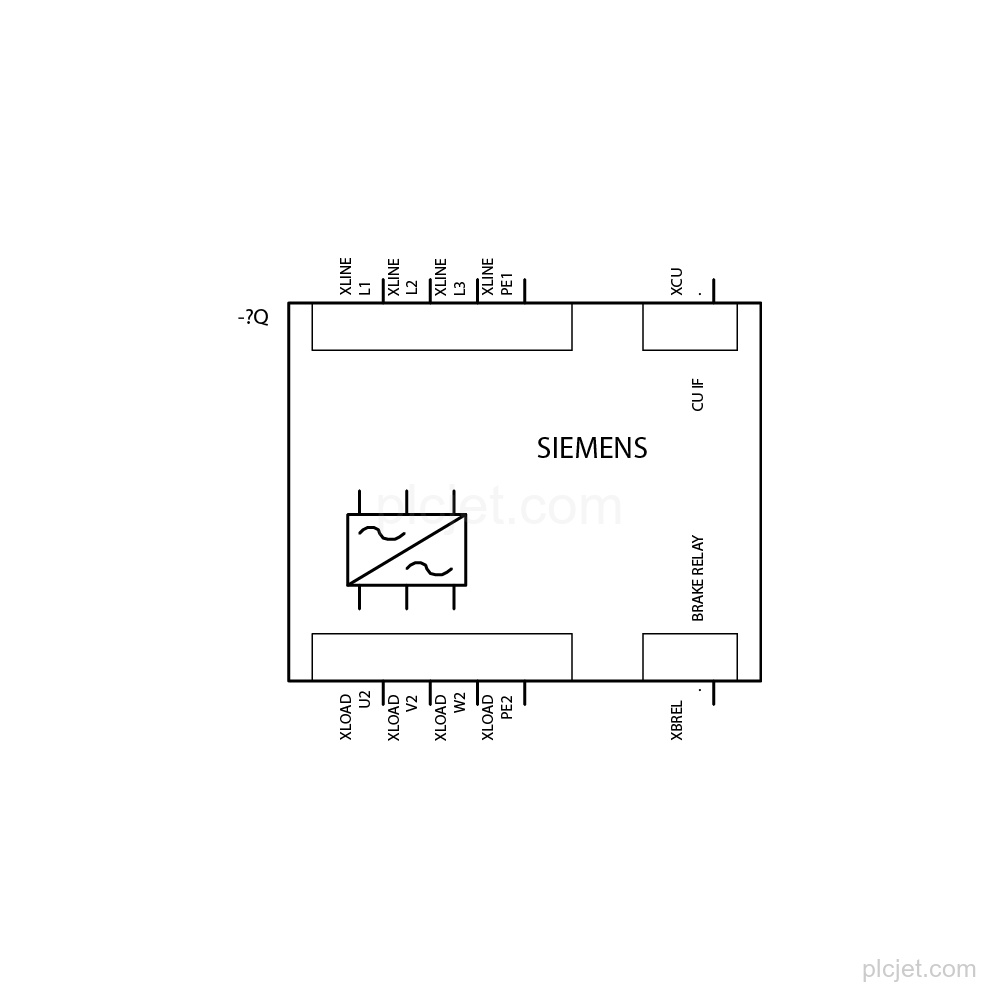

Line-side and motor-end connections use M8 bolts with 25.00 … 120.00 mm2 conductors. Maximum motor cable length: 50 m shielded or 100 m unshielded.
Frame size FSF; dimensions are 634 mm height × 350 mm width × 316 mm depth. Degree of protection: IP20 / UL open type.
Lifecycle status: Active Product.
Frequently Asked Questions
What is the exact product identity?
It is Siemens 6SL3225-0BE34-5UA0, a SINAMICS G120 PM250 power module.
What are the HO and LO power ratings?
HO rated power is 45.00 kW | 60.00 hp, and LO rated power is 55.00 kW | 75.00 hp.
What input supply does this power module use?
It uses 3 AC input at 380 … 480 V ±10 % and 47 … 63 Hz.
What is included in this configuration?
It is without a control unit and BOP, and without a filter.
What project details should be provided for quotation?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
