Product Overview
Technical Summary
| Product type | SINAMICS G120 Power Module PM250 |
|---|---|
| Input supply | 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz |
| Rated output power (HO) | 75.00 kW | 100.00 hp |
| Rated output power (LO) | 90.00 kW | 125.00 hp |
| Output frequency | 0 … 200 Hz vector control; 0 … 550 Hz V/f control |
| Maximum output current | 290.00 A |
| Frame size | FSF |
| Protection | IP20 / UL open type |
| Included configuration | Without control unit and BOP |
Key Features
Rated power is 75.00 kW | 100.00 hp (HO) or 90.00 kW | 125.00 hp (LO). The collected description specifies high overload: 75 kW for 200% 3 s, 150% 57 s, 100% 240 s at 0 … 50 °C.
Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
Output frequency is 0 … 200 Hz for vector control and 0 … 550 Hz for V/f control. Maximum output current is 290.00 A.

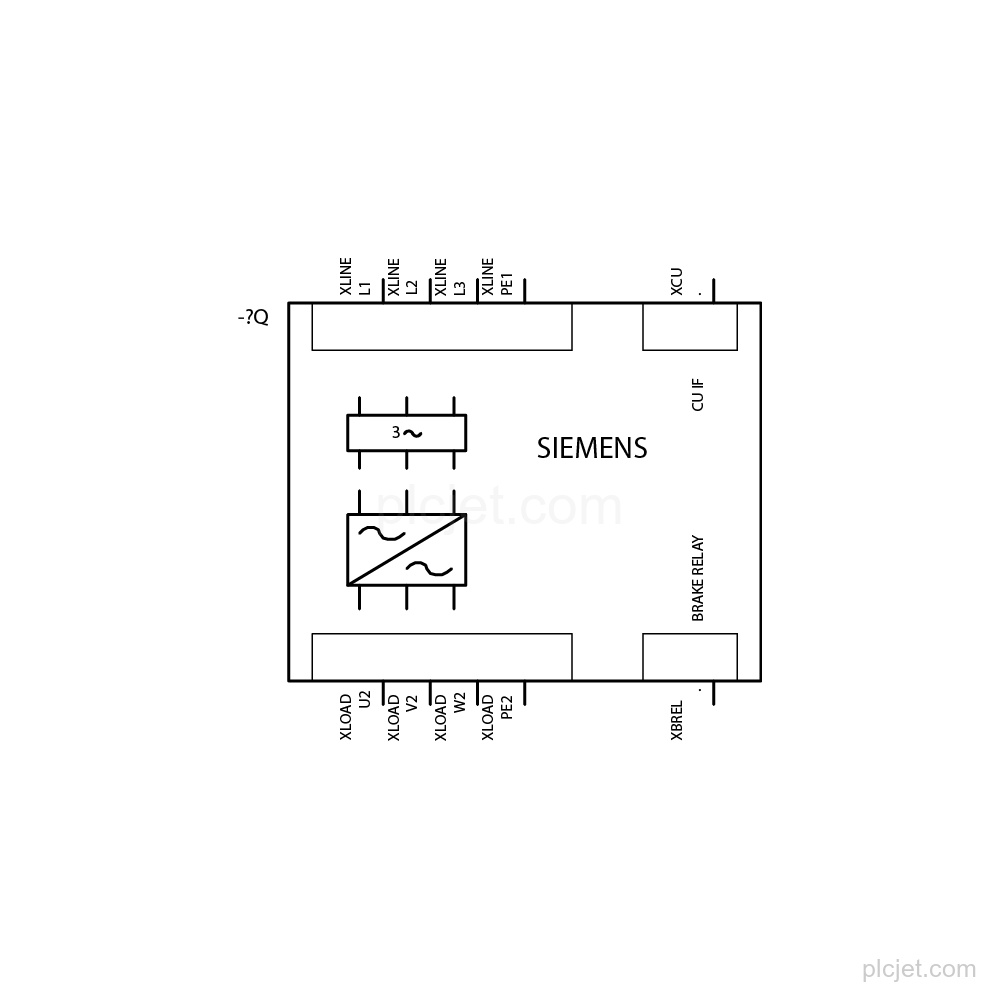

Line-side and motor-end connections use M8 bolts with 25.00 … 120.00 mm2 conductors. Maximum motor cable length is 50 m shielded or 100 m unshielded.
Frame size: FSF. Dimensions: 934 mm height × 350 mm width × 316 mm depth.
Protection degree: IP20 / UL open type. The unit has a built-in Class A filter and is without a control unit and BOP.
Frequently Asked Questions
What is the exact Siemens line item?
It is 6SL3225-0BE37-5AA0, a SINAMICS G120 Power Module PM250.
What input supply does this power module use?
Input is 3 AC, 380 … 480 V ±10 % at 47 … 63 Hz.
What is included in the configuration?
It is without a control unit and BOP; it has a built-in Class A filter and possibility of regeneration.
