Product Overview
Technical Summary

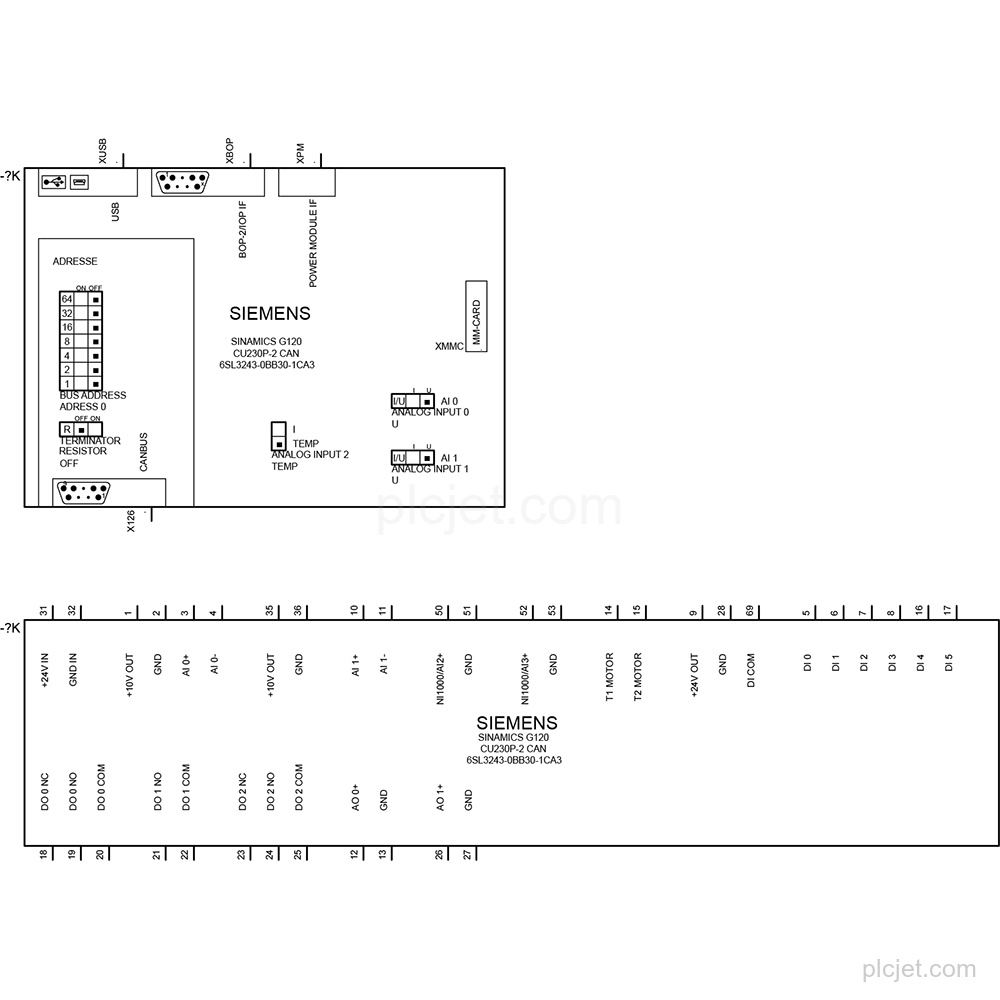

| Product type | SINAMICS G120 Control Unit CU230P-2 |
|---|---|
| CAN interface | Integrated CANopen |
| Digital inputs | 6 DI |
| Digital outputs | 3 DQ |
| Analog inputs | 4 AI |
| Analog outputs | 2 AQ |
| Motor temperature sensor input | 1 |
| PSU-out | 2 (10 V DC, 24 V DC) |
| PSU-in | 1 (24 V DC) |
| Interfaces | USB and MMC |
| Degree of protection | IP20 |
Key Features
SINAMICS G120 Control Unit CU230P-2 with integrated CANopen.
6 digital inputs and 3 digital outputs.
4 analog inputs and 2 analog outputs.
1 motor temperature sensor input, 2 PSU-out connections (10 V DC, 24 V DC), and 1 PSU-in connection (24 V DC).
USB and MMC interface with degree of protection IP20.
Product cancellation; net weight: 0.610 kg.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6SL3243-0BB30-1CA3, a SINAMICS G120 Control Unit CU230P-2.
Which I/O does this control unit have?
It has 6 DI, 3 DQ, 4 AI and 2 AQ.
Which interfaces and connections are included?
It has integrated CANopen, USB and MMC interfaces, 1 motor temperature sensor input, 2 PSU-out connections (10 V DC, 24 V DC), and 1 PSU-in connection (24 V DC).
What configuration details should be included in a quotation request?
Include the requested quantity, destination, schedule, and any additional BOM line items.
