Product Overview
Technical Summary
| Product type | SINAMICS G120C spare part drive |
|---|---|
| Rated power | 15.0 kW |
| Overload | 150% for 3 s |
| Supply | 380-480V3AC+10/-20% |
| Frequency | 47-63Hz |
| I/O interface | 6 DI, 2 DQ, 1 AI, 1 AQ |
| Fieldbus | CANopen integrated |
| Safety function | Safe Torque Off integrated |
| Protection | IP20/UL Open Type |
| Size | FSC, 295x 140x 203 (HxWxD) |
| Lifecycle | Start of final year of support |
Key Features
Rated power and overload
Rated power: 15.0 kW; overload: 150% for 3 s.
Supply
380-480V3AC+10/-20% at 47-63Hz.

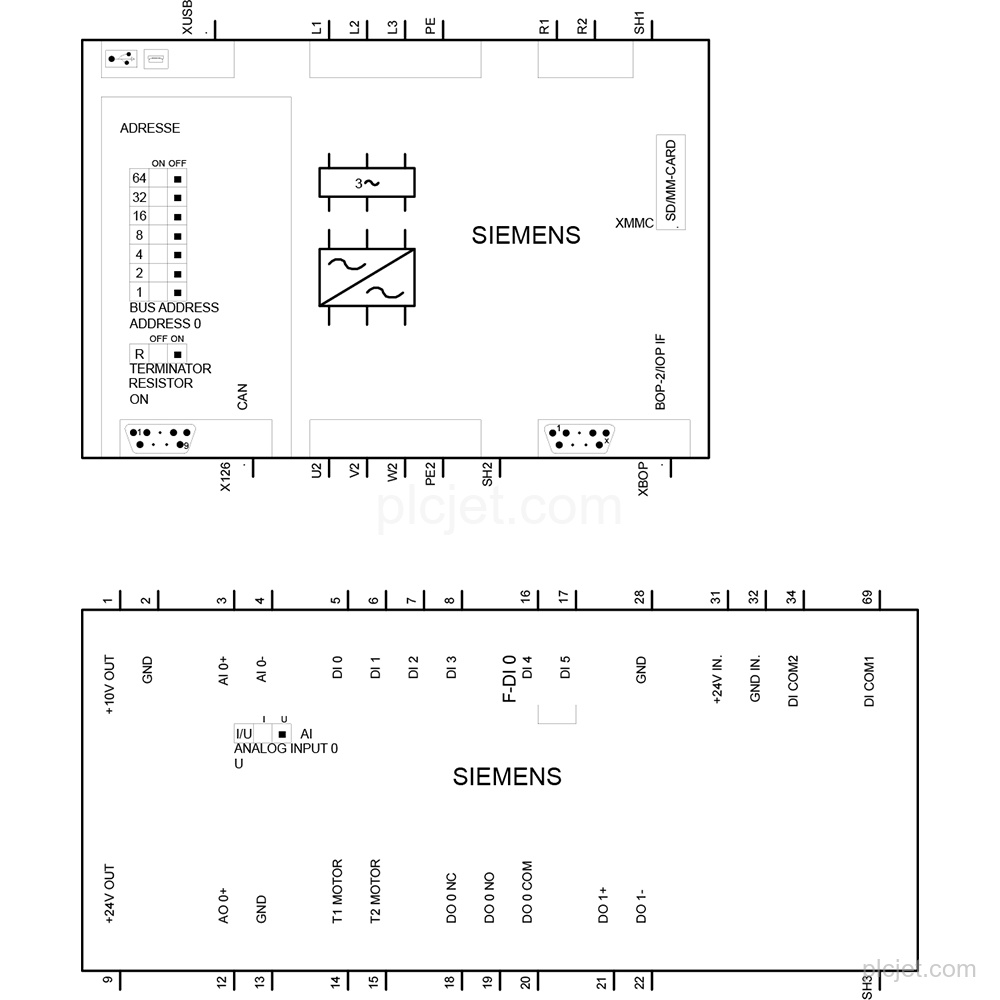

I/O interface
6 DI, 2 DQ, 1 AI and 1 AQ.
Integrated functions
Integrated filter class A, Safe Torque Off and CANopen fieldbus.
Protection and size
IP20/UL Open Type; size FSC, 295x 140x 203 (HxWxD).
External supply
External 24 V.
Frequently Asked Questions
What is the rated power of 6SL3210-1KE23-2AC1?
The rated power is 15.0 kW, with 150% overload for 3 s.
Which supply does this SINAMICS G120C drive use?
It uses 380-480V3AC+10/-20% at 47-63Hz.
Which I/O and fieldbus interfaces are included?
The I/O interface has 6 DI, 2 DQ, 1 AI and 1 AQ. CANopen fieldbus is integrated.
What configuration details should accompany a quotation request?
Please provide the requested quantity, destination, schedule context and any additional BOM lines.
