Product Overview
Applications
Supports the flexible installation of operator controls on fully IP65-enclosed 16:9 HMI / IPC devices.
Technical Summary
| Product type | Extension Unit 22" hardwired |
|---|---|

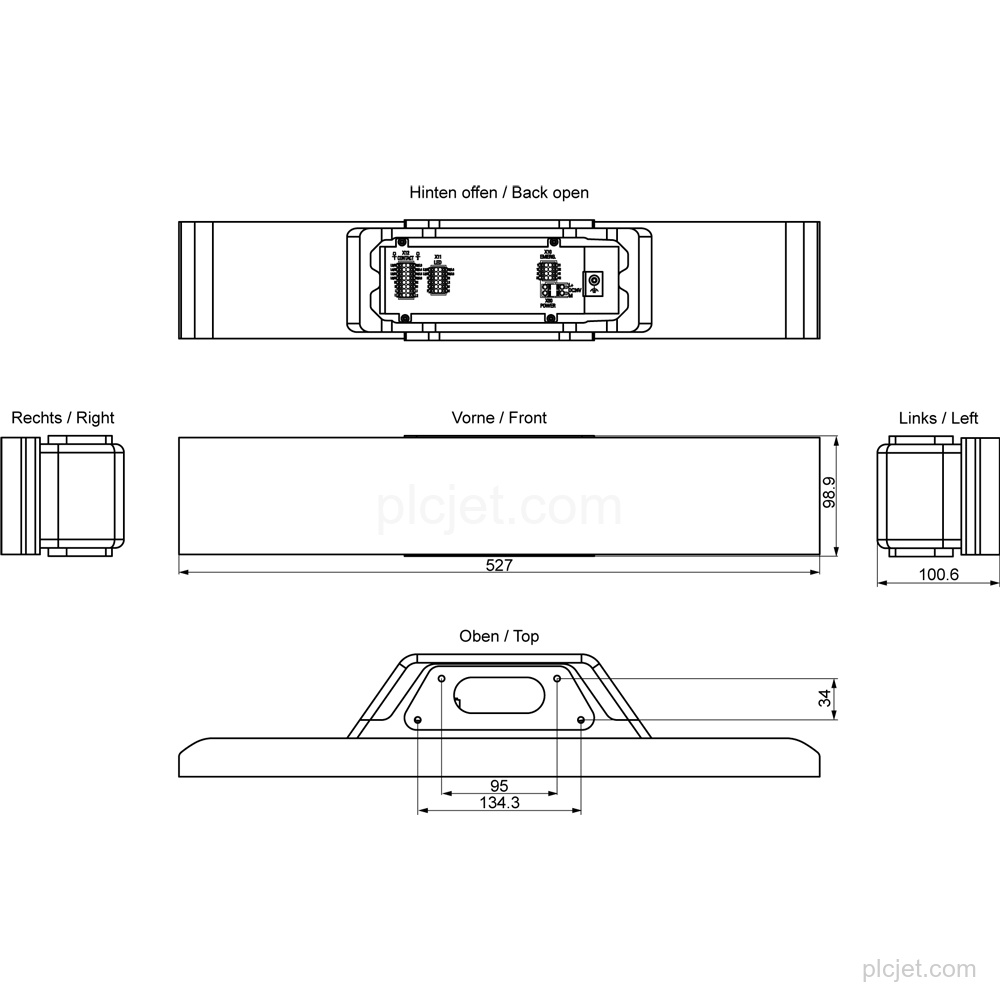

| Mounting | For mounting on a 16:9 HMI / IPC PRO device (lower part) |
| Mounting type | Screwed joint |
| Control element capacity | 10 slots; Max. 8 control elements + 1 emergency stop button can be mounted (refer to manual) |
| Supply voltage | DC, rated value 24 V; permissible range 19.2 V to 28.8 V |
| Current consumption | 10 mA; without load |
| Active power input | 0.1 W, typ. |
| Connectors | 12-pin connector; 16-pin connector; 8-pin connector |
| Protection | IP65 all-round; Enclosure Type 4 at the front: Yes |
| Lifecycle | Active Product |
Key Features

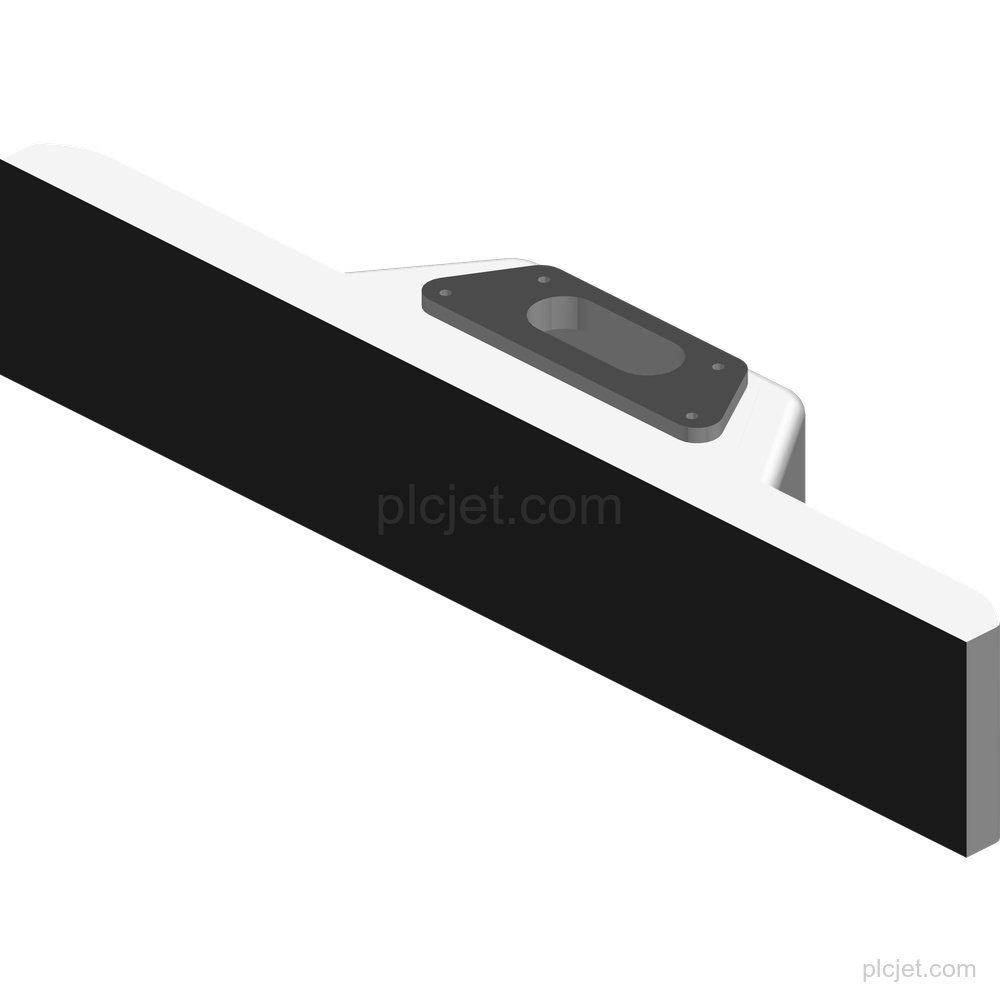

Extension Unit 22" hardwired.
For mounting on a 16:9 HMI / IPC PRO device (lower part) with a screwed joint.
10 slots; max. 8 control elements + 1 emergency stop button can be mounted (refer to manual).
DC, rated value 24 V; permissible range 19.2 V to 28.8 V.
12-pin connector for the LED module, 16-pin connector for control-element contacts, 8-pin connector for safety-related contacts, and IP65 all-round protection.
Frequently Asked Questions
What is the exact product type of 6AV7674-1LA61-0AA0?
It is an Extension Unit 22" hardwired.
How many control elements can be mounted?
There are 10 slots; max. 8 control elements + 1 emergency stop button can be mounted (refer to manual).
What supply voltage does the Extension Unit use?
The supply is DC with a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.

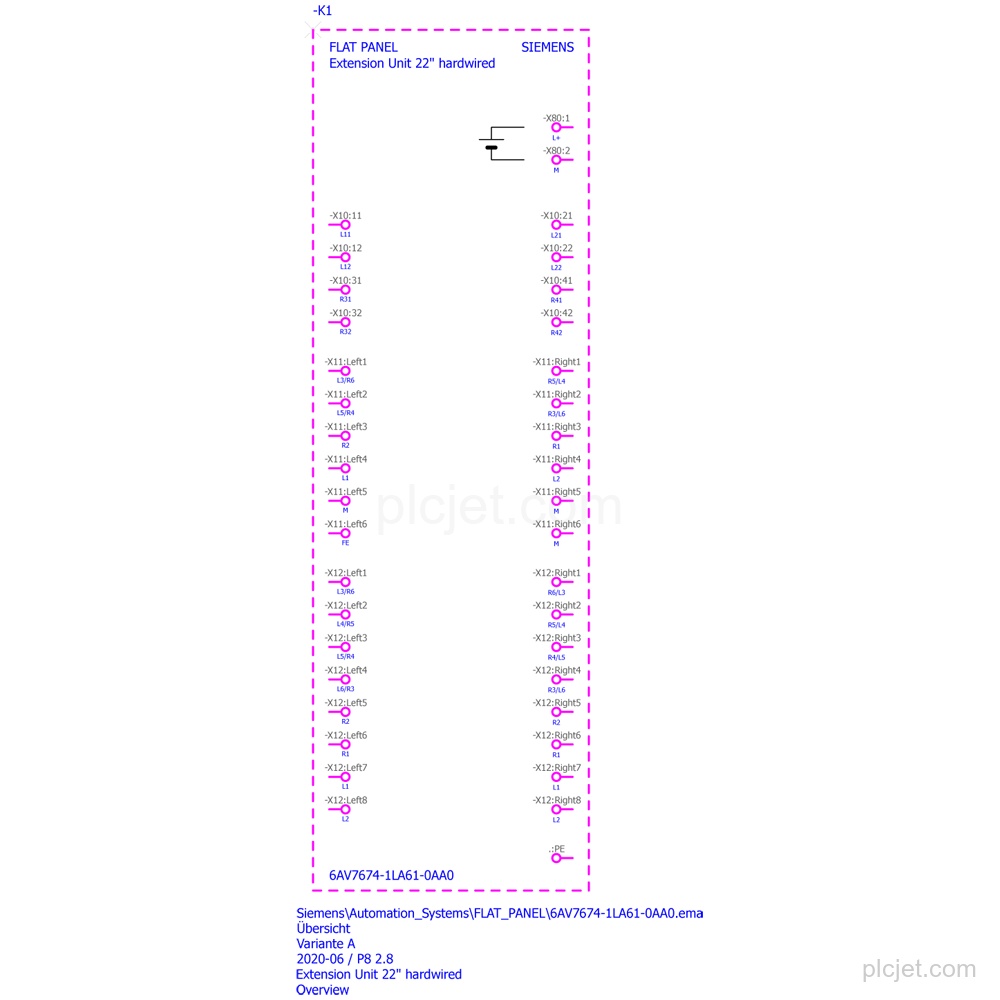

Which connectors are provided?
It has a 12-pin connector for the LED module, a 16-pin connector for the contacts of the control elements, and an 8-pin connector for the safety-related contacts.
