Product Overview
Technical Summary
| Product type | IFP1200 Basic |
|---|---|
| Display | TFT widescreen display, LED backlighting; 12.1 in; 1 280 x 800 |
| Touch operation | Single-touch screen; Analog-resistive |
| Supply voltage | DC; rated value 24 V; permissible range 20.4 V to 28.8 V |
| Video interfaces | DisplayPort; VGA |
| USB interfaces | 2; USB 2.0 downstream; USB 2.0 Type B touch interface |
| Mounting | Built-in unit; front mounting; VESA 100 x 100 integrated |
| Front protection | IP65 |
Key Features
TFT widescreen display with LED backlighting, 12.1 in screen diagonal, 1 280 x 800 image resolution, and analog-resistive single-touch operation.
DisplayPort and VGA interfaces are provided, with 2 USB 2.0 downstream interfaces and a USB 2.0 Type B touch interface.
DC supply with a rated value of 24 V and a permissible range of 20.4 V to 28.8 V.

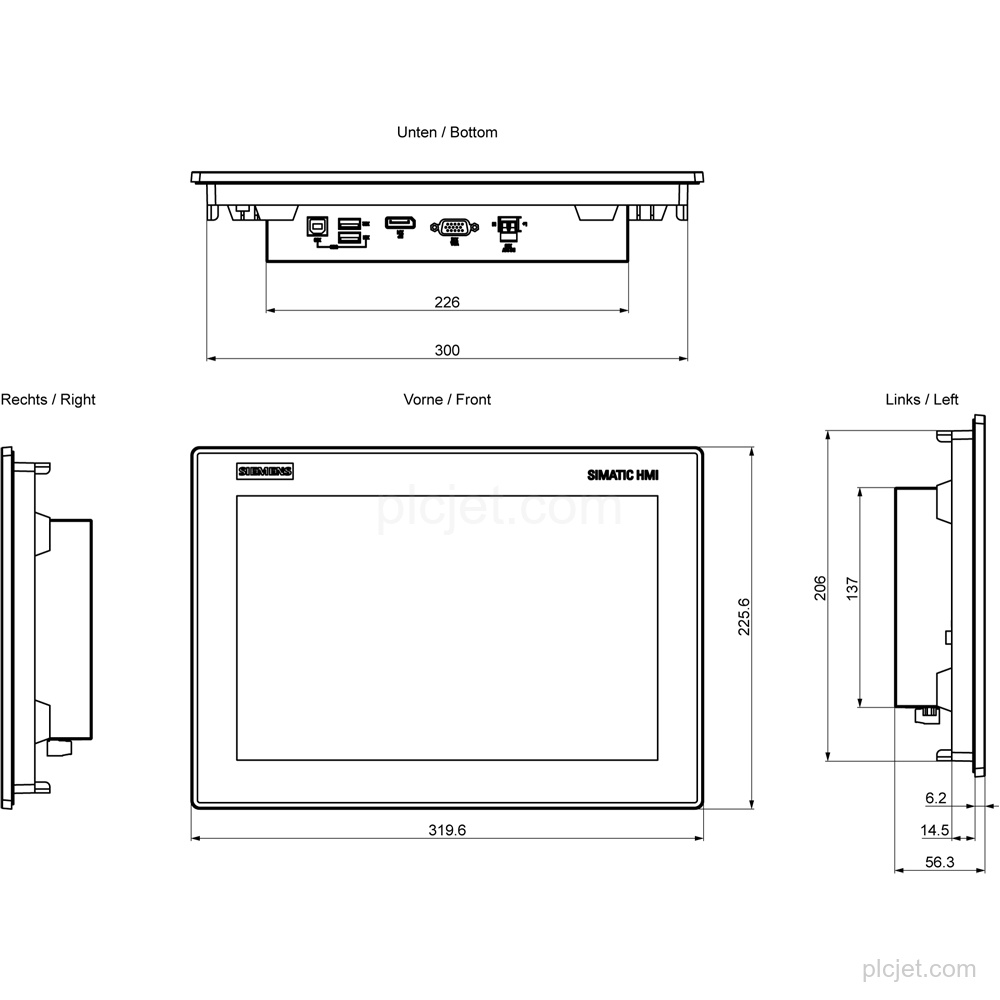

Built-in unit for front mounting with integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible. Front protection is IP65.
Frequently Asked Questions
What is the exact display variant?
It is the Siemens SIMATIC IFP1200 Basic Flat Panel, order number 6AV7862-2BC00-0AA0.
What display and touch configuration does it have?
It has a 12.1 in TFT widescreen display with 1 280 x 800 resolution, LED backlighting, and analog-resistive single-touch operation.
Which interfaces are available?

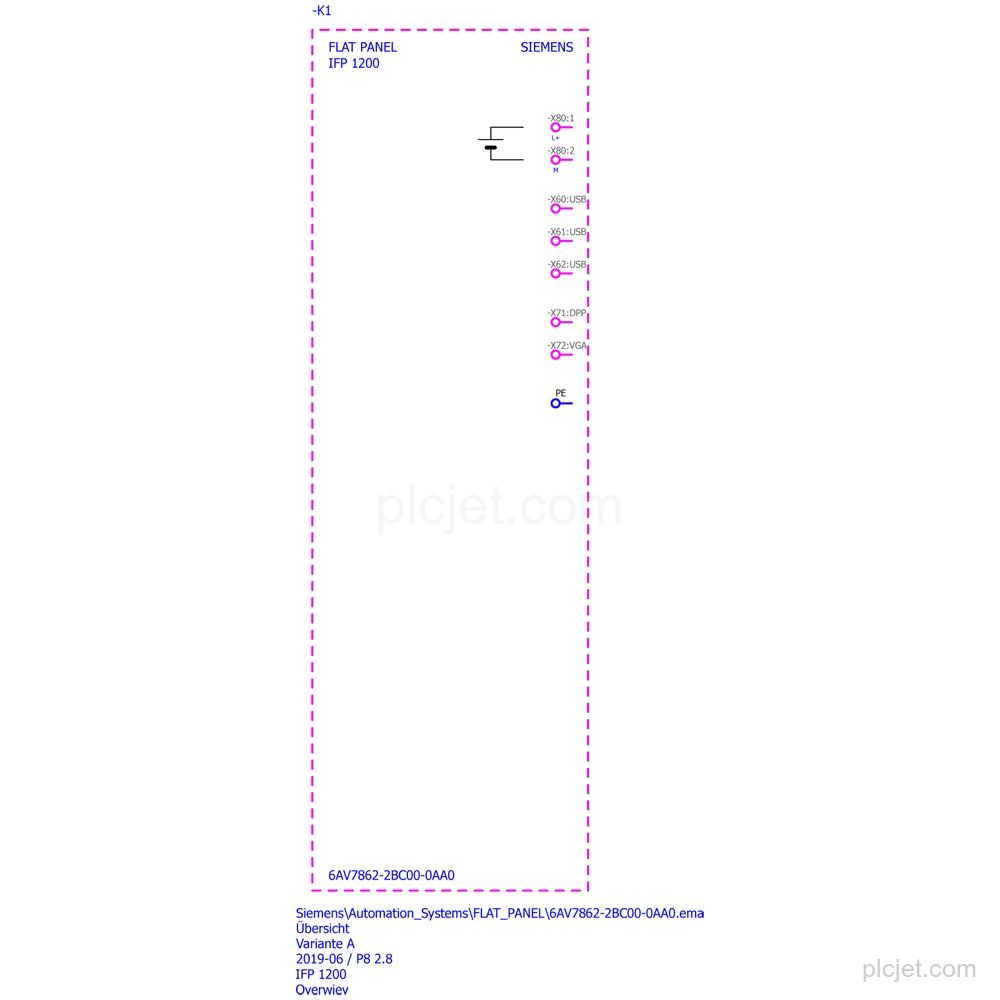

It has DisplayPort, VGA, 2 USB 2.0 downstream interfaces, and a USB 2.0 Type B touch interface.
How is this panel mounted and protected?
It is a built-in unit for front mounting with integrated VESA 100 x 100 mounting. Portrait and landscape mounting are possible, and front protection is IP65.
