Product Overview
Technical Summary
| Product type | IFP1200 Basic C |
|---|---|
| Display | TFT widescreen display, LED backlighting |
| Touch screen | Yes; Analog-resistive |
| Image resolution | 1 280 x 800 |

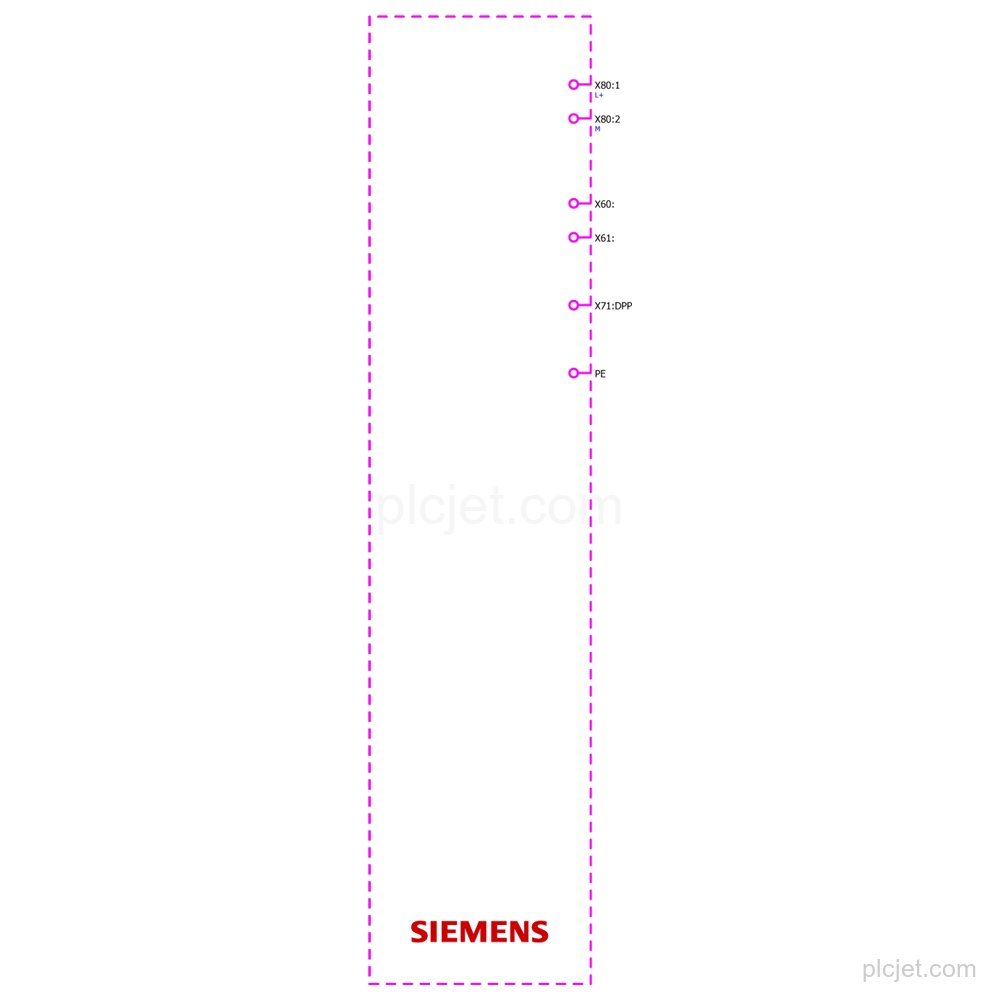

| Interfaces | DisplayPort; 1 USB 2.0 downstream; USB 2.0 type B |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |

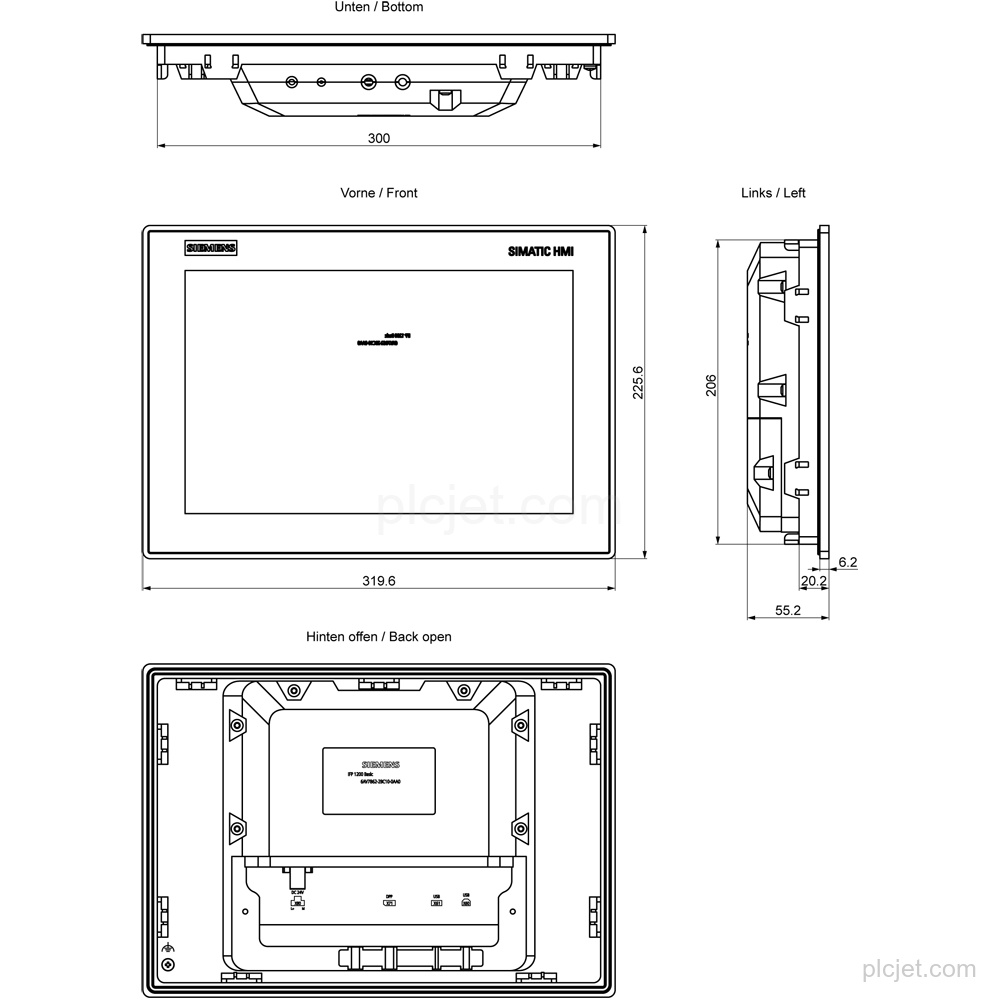

| Installation | Built-in unit; front mounting; VESA 75 x 75 integrated; portrait mode possible |
| Protection | IP65 at the front; IP65 at the rear |
Key Features
TFT widescreen display with LED backlighting, 12.1 in; 12" screen diagonal and 1 280 x 800 image resolution.
Single-touch screen with Analog-resistive design.
DisplayPort, 1 USB 2.0 downstream interface and USB 2.0 type B touch interface.
24 V DC rated value; permissible range 20.4 V to 28.8 V.
Built-in unit for front mounting, with integrated VESA 75 x 75 mounting; portrait mode possible.
IP65 at the front and IP65 at the rear.
Frequently Asked Questions
What is the exact product type of 6AV7862-2BC10-0AA0?
The product type designation is IFP1200 Basic C, with the short designation Basic Flat Panel 12" Touch.
What display and touch configuration does this line item have?
It has a TFT widescreen LED display with 1 280 x 800 resolution and a single-touch Analog-resistive touch screen.
Which interfaces and supply voltage are provided?
It has DisplayPort, 1 USB 2.0 downstream interface and USB 2.0 type B touch interface. The rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V.
How is the panel mounted and protected?
It is a built-in unit for front mounting with integrated VESA 75 x 75 mounting; portrait mode is possible. Protection is IP65 at the front and rear.
