Product Overview
Technical Summary
| Product type | IFP1900 Basic |
|---|---|
| Display | TFT widescreen display, LED backlighting |
| Touch operation | Yes; Analog-resistive |
| Image resolution | 1 366 x 768 pixels |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |

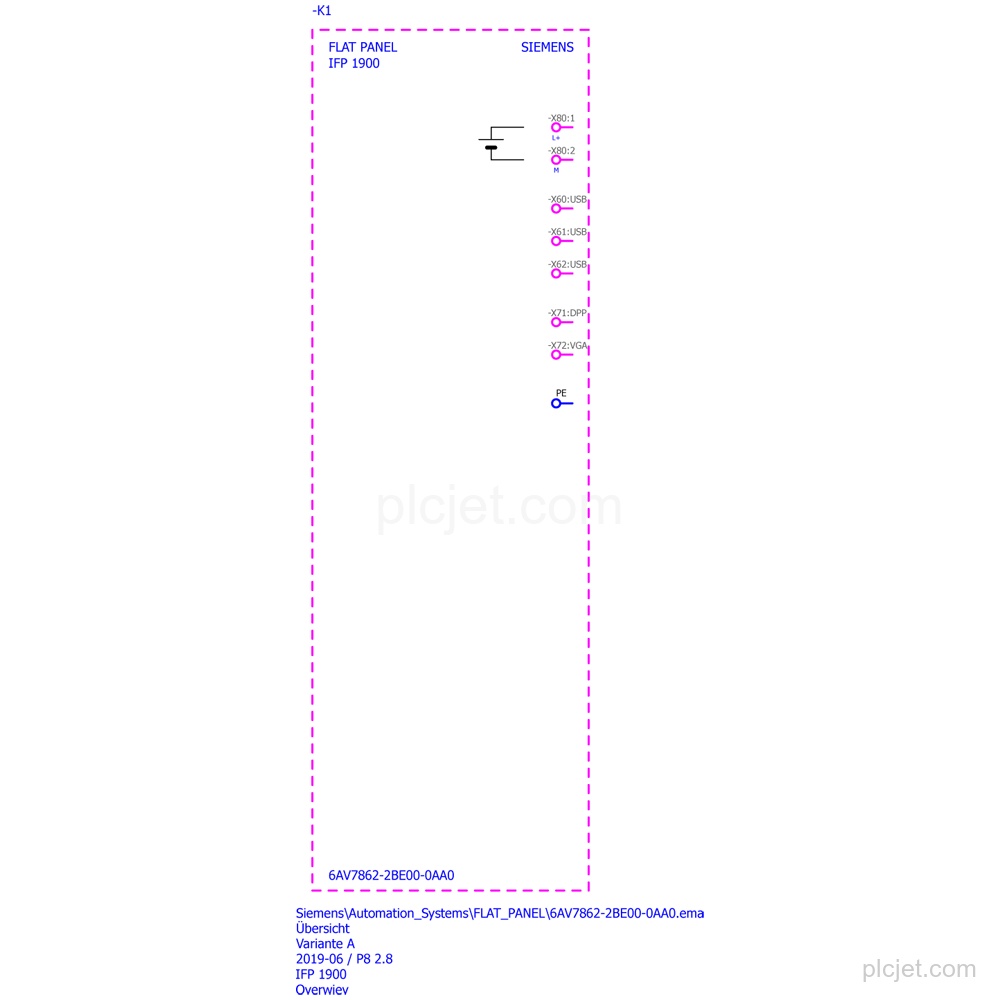

| Interfaces | DisplayPort; VGA; 2 USB 2.0 downstream; USB Type A touch |

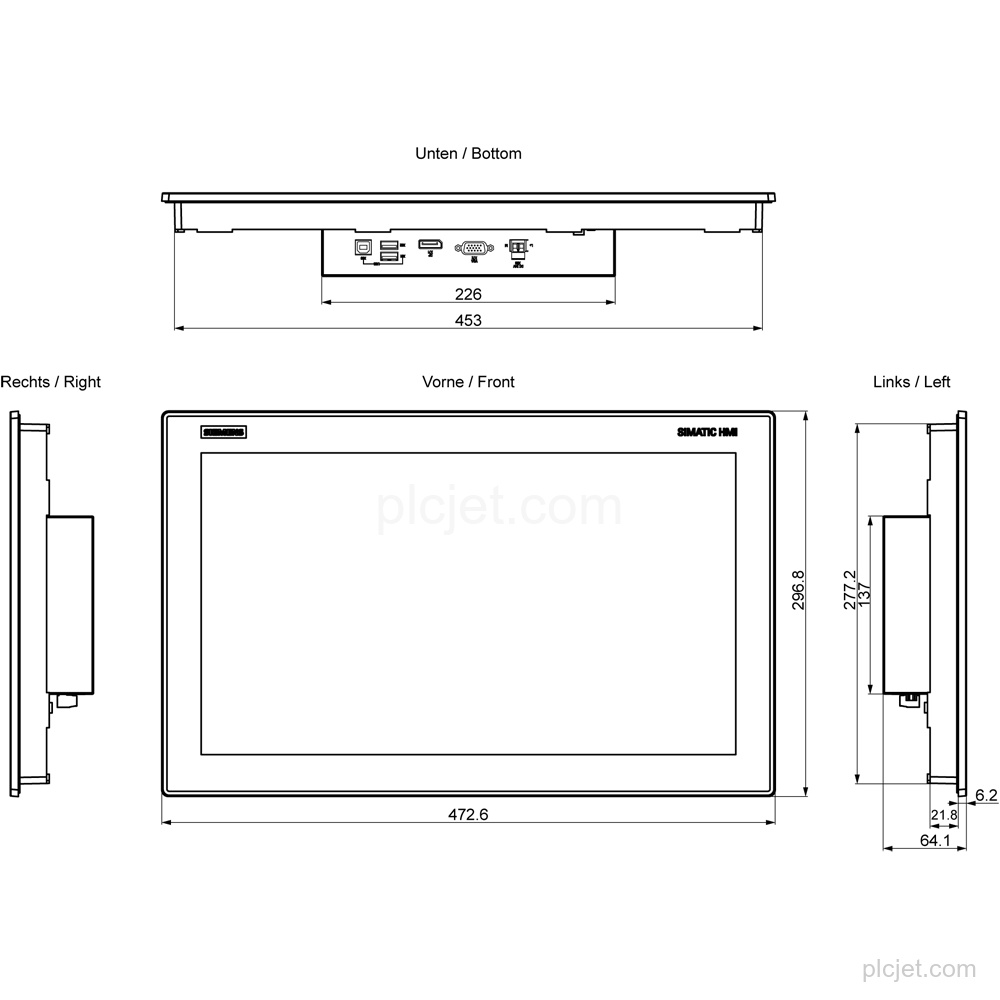

| Mounting | Built-in unit; front mounting; VESA 100 x 100 integrated |
| Mounting orientation | Portrait and landscape possible |
| Front protection | IP65 |
Key Features
TFT widescreen display with LED backlighting, 18.5 in; 19" screen diagonal, 16 000 000 colors and single-touch Analog-resistive operation.
Image resolution is 1 366 x 768 pixels.
DC supply with a rated value of 24 V and a permissible range from 20.4 V to 28.8 V.
DisplayPort and VGA interfaces; 2 USB 2.0 downstream interfaces, with 2 USB interfaces onboard at the rear and USB Type A for touch.
Built-in unit with front mounting and integrated VESA 100 x 100 mounting; portrait and landscape mounting are possible.
IP65 protection at the front.
Frequently Asked Questions
What is the exact display line item?
It is Siemens 6AV7862-2BE00-0AA0, SIMATIC IFP1900 Basic.
What display and touch configuration does it have?
It has an 18.5 in; 19" TFT widescreen display with 1 366 x 768 resolution, LED backlighting and single-touch Analog-resistive operation.
Which interfaces and supply are provided?
It has DisplayPort, VGA, 2 USB 2.0 downstream interfaces and USB Type A for touch. The supply is 24 V DC, with a permissible range from 20.4 V to 28.8 V.
How should this line be included in a quotation request?
Include the requested quantity, destination, schedule context and any additional BOM lines.
