Product Overview
Technical Summary
| Product type | IFP2200 PRO |
|---|---|
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 |
| Supply | 24 V DC; PELV / SELV floating |

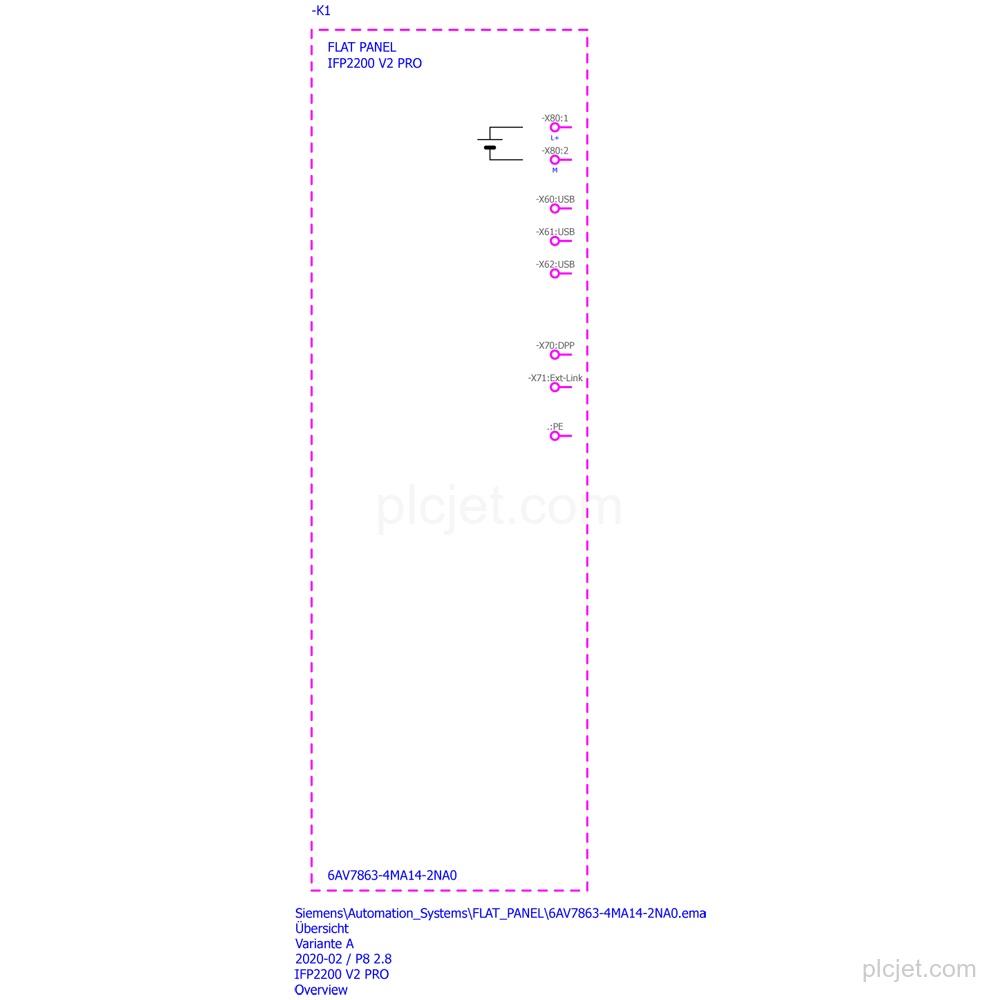

| Interfaces | DisplayPort V1.2; 2 USB 2.0 type A |
| Mounting | Stand mounting; VESA mounting with VESA adapter set |
| Protection | IP65 at the front and rear |
Key Features

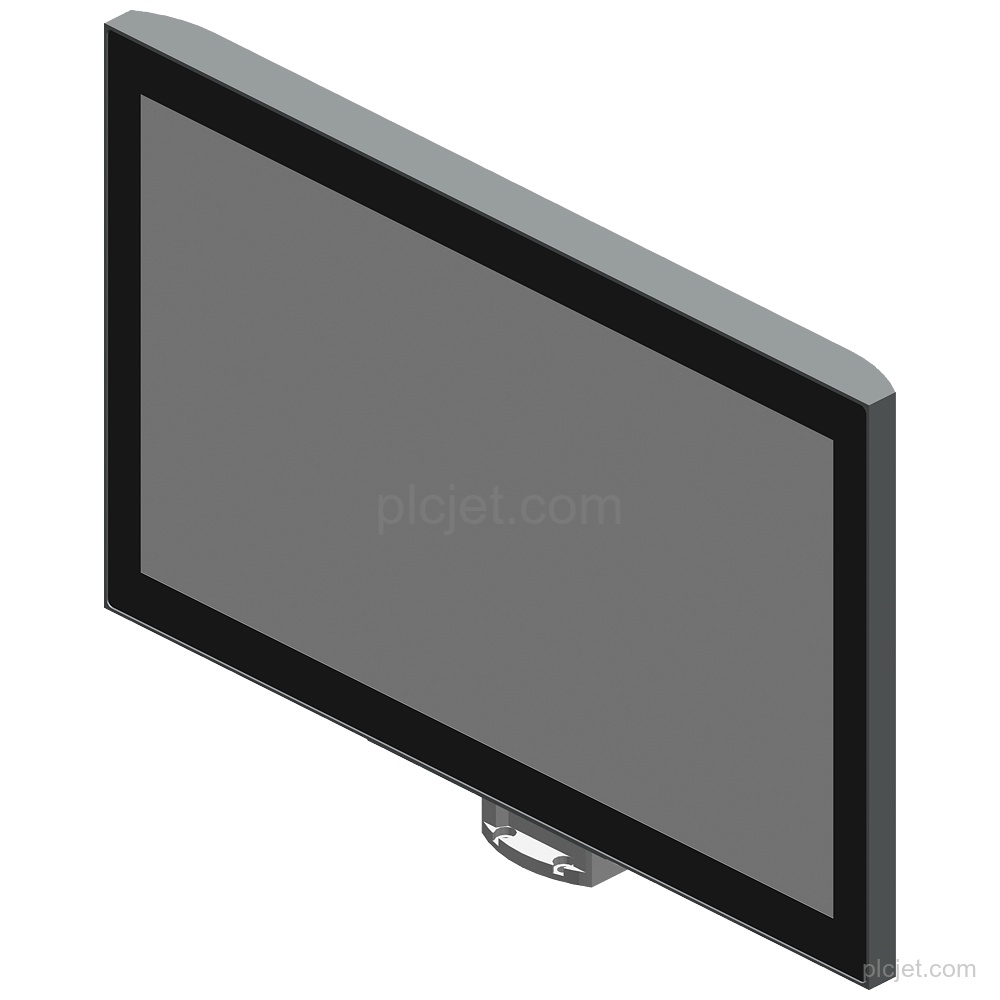

TFT widescreen display with LED backlighting, 21.5 in; 22" screen diagonal and 1 920 x 1 080 image resolution.
Projective-capacitive multi-touch screen with monitor keyboard and integrated mouse cursor control.
DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear; USB supports keyboard and mouse connection.
24 V DC rated supply; permissible range 19.2 V to 28.8 V.
Stand mounting and VESA mounting with VESA adapter set; front mounting and support arm mounting are not available.
IP65 at the front and rear; Enclosure Type 4 and Type 4x at the front.
Frequently Asked Questions
What display configuration does 6AV7863-4MA14-2NA0 have?
It has a 21.5 in; 22" TFT widescreen multi-touch display with 1 920 x 1 080 resolution and a PRO variant stand.
What supply does this line item require?
Supply is 24 V DC; the permissible range is 19.2 V to 28.8 V, with PELV / SELV floating.
Which interfaces are included?
It has DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear. USB is provided for keyboard and mouse connection.
Which mounting options are available for the requested configuration?
Stand mounting is available, and VESA mounting is available with a VESA adapter set. Front mounting and support arm mounting are not available.
