Product Overview
Applications
Suitable for installation in stationary panels in closed rooms.
Technical Summary
| Product type | 7KM PAC1020 |
|---|---|
| Measurement functions | Voltage, current, active power, reactive power and frequency |
| Rated voltage | Ue rated max: 400/230 V |
| Measurable line frequency | 45 Hz to 65 Hz |
| Communication protocol | Modbus RTU |
| Supply voltage | 100 … 250 V AC/DC |
| Display | Graphical LCD, 56 mm x 74 mm |
| Digital inputs/outputs | 1 digital input and 1 digital output |
| Mounting position | Vertical; DIN-rail mounting: No |
| Front protection | IP40 |
Key Features
Measures voltage, current, active power, reactive power and frequency; voltage and current measurement use TRMS.
Ue rated max: 400/230 V; line frequency: 45 Hz to 65 Hz.
Protocol: Modbus RTU; 1 Fast Ethernet interface; transfer rate: 4 800 kbit/s to 115 200 kbit/s.
Graphical LCD with adjustable backlight and contrast, 4 keys, 1 digital input and 1 digital output.

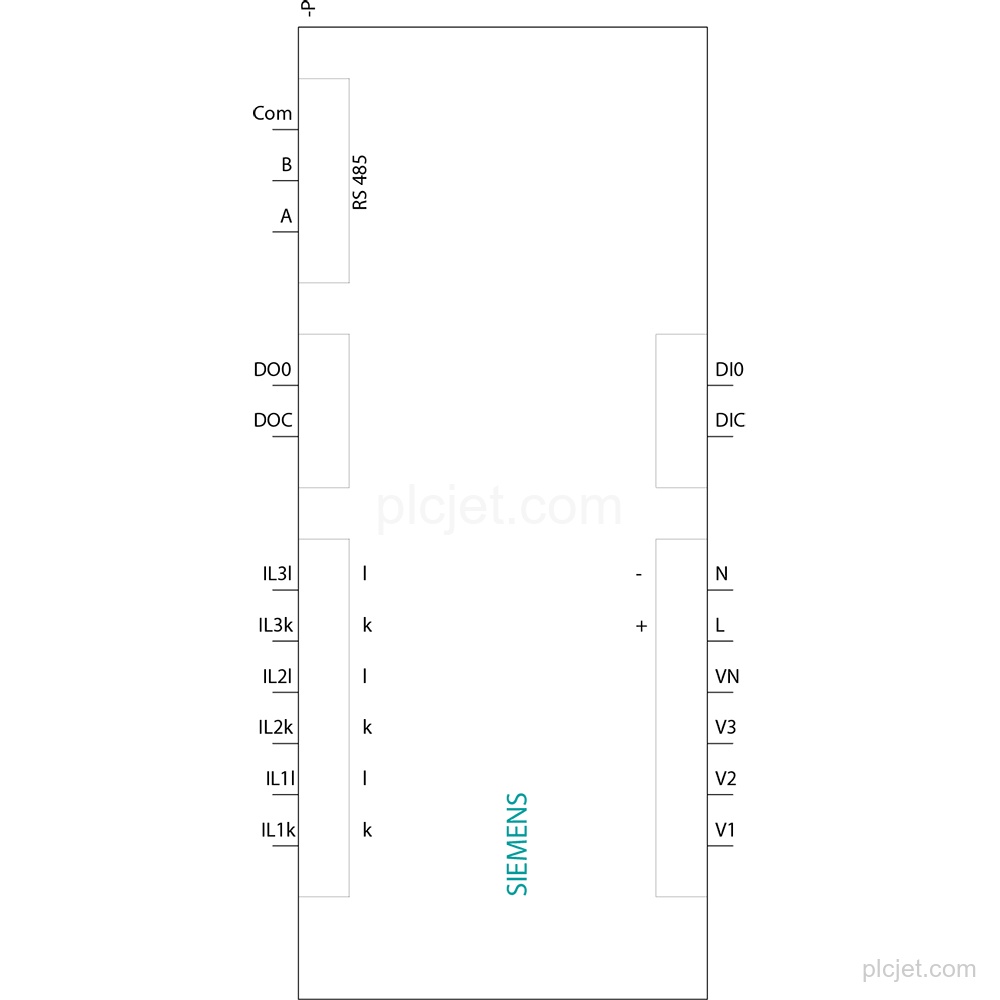

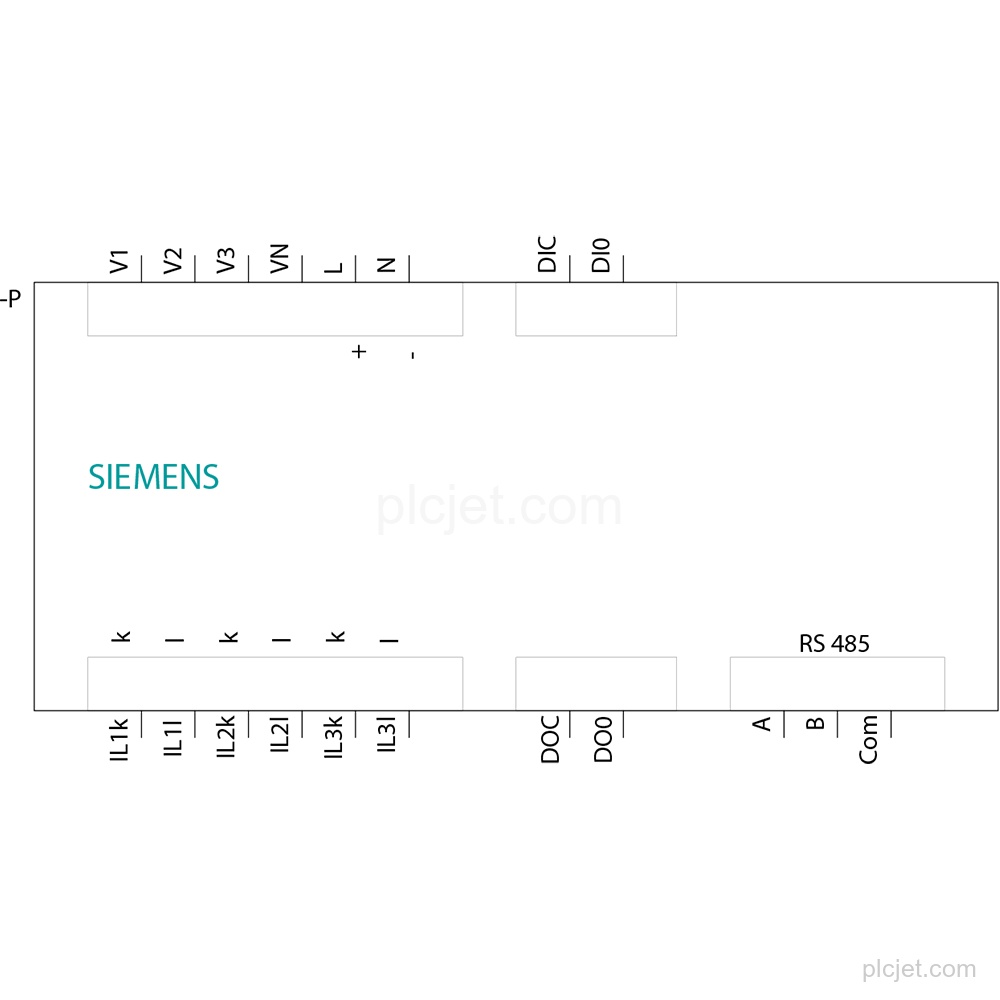

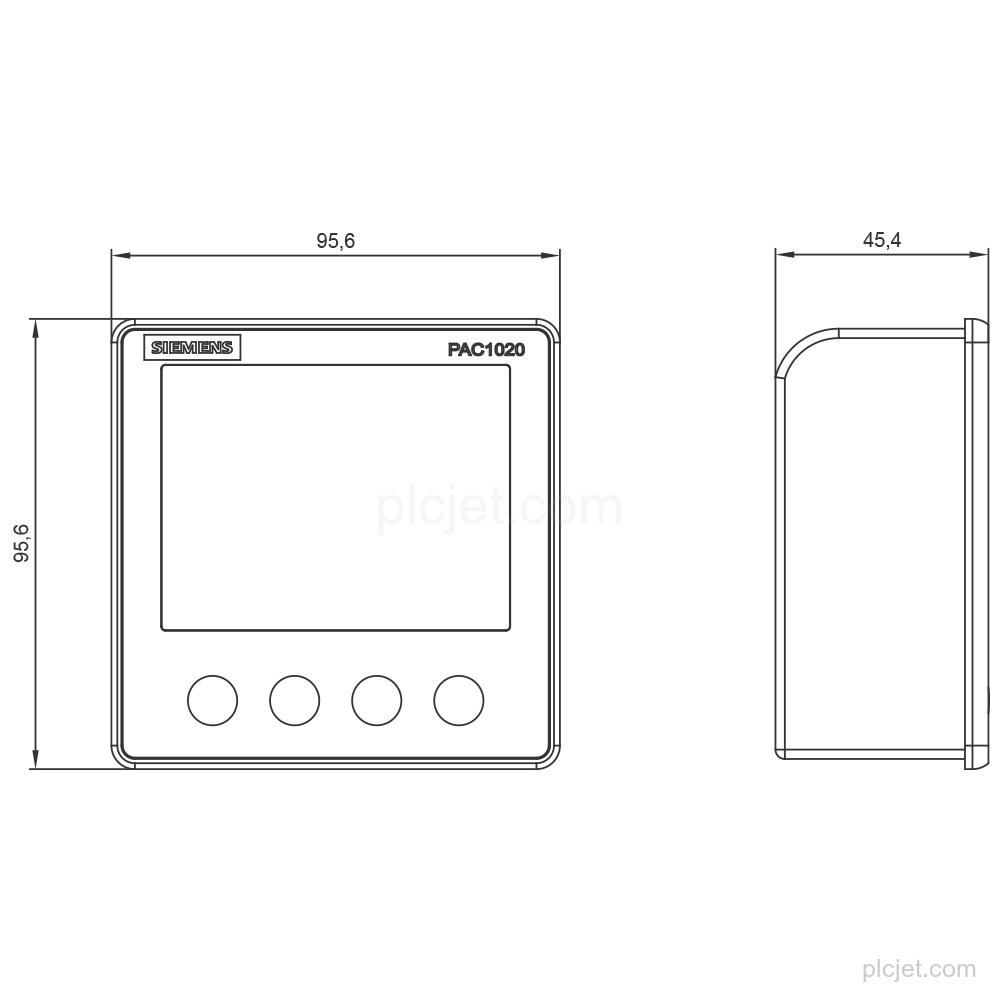

Size: 96; dimensions: 96 mm x 96 mm x 42 mm; vertical mounting position; DIN-rail mounting: No.
Front protection class: IP40; product lifecycle: Active Product.
