Product Overview
Applications
Measures voltage, current, active power, reactive power, and frequency.
Measures apparent energy, active energy, and reactive energy.
Technical Summary
| Product type | SENTRON measuring device, 7KM PAC3200 |
|---|---|
| Measurement procedure | Voltage: RMS; current: TRMS; measured value detection: complete |
| Line frequency | 45 Hz to 65 Hz; automatic line frequency detection: Yes |
| Supply | Extra-low voltage power supply unit, DC 22 … 65 V +/- 10% |
| Communication | 1 Fast Ethernet interface; MODBUS TCP; 10 000 kbit/s |
| Voltage measurement | Up to 500 V between line conductors; up to 289 V between (PE)N and L at the rated value |
| Current measurement | Rated values: 1 A and 5 A; measuring range: 10 % to 120 % |
| Digital I/O | 1 digital input and 1 digital output; switching or pulse output function |
| Display | LCD; 54 mm x 72 mm; 4 keys |
| Protection | Front IP65; operating resource protection class II |
Key Features
Measures voltage, current, active power, reactive power, frequency, apparent energy, active energy, and reactive energy.
Voltage measurement supports up to 500 V between line conductors and up to 289 V between (PE)N and L at the rated value; current rated values are 1 A and 5 A.
Has 1 Fast Ethernet interface with MODBUS TCP and a transfer rate of 10 000 kbit/s.
Has a 54 mm x 72 mm LCD display, 4 keys, and display languages ger, en, fr, spa, ita, por, tur, chi.
Uses an extra-low voltage DC power supply at 22 … 65 V +/- 10%; front protection class is IP65.

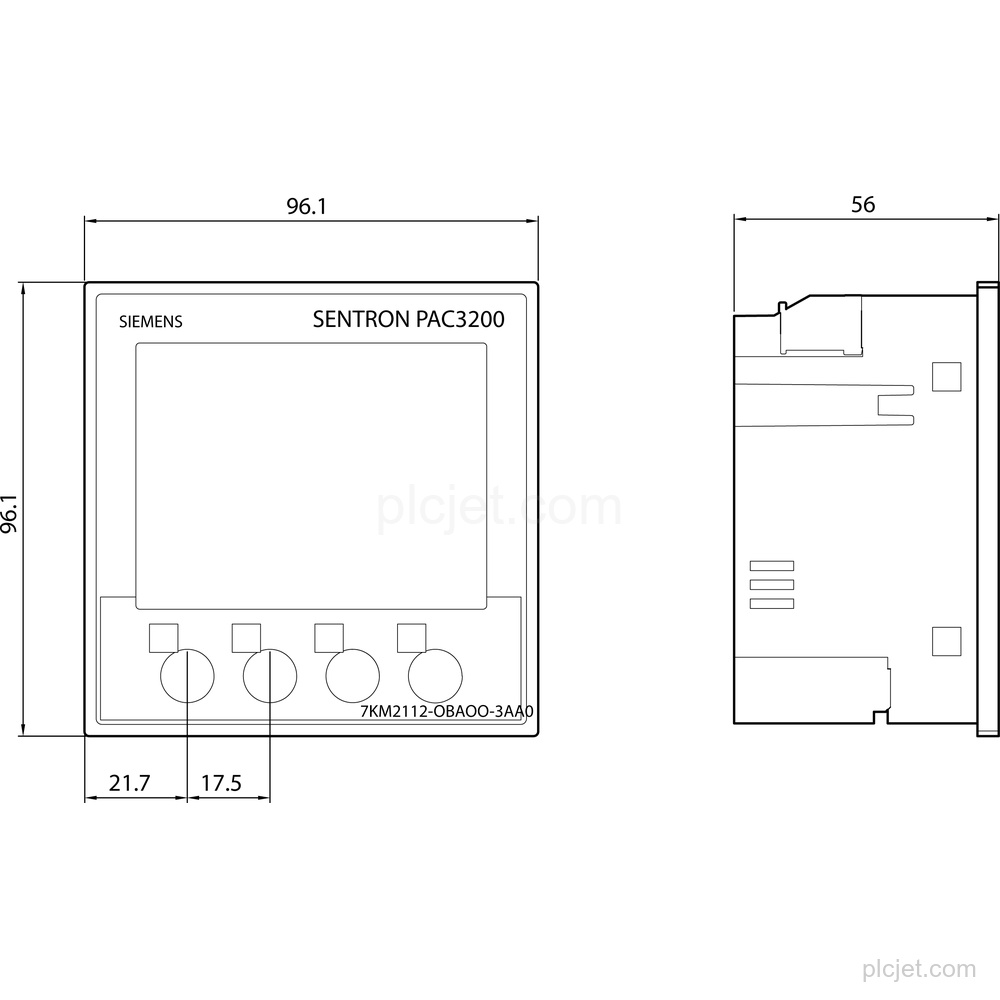

Size 96 device with 96 mm height, 96 mm width, 56 mm depth, 51 mm installation depth, and vertical mounting position.
Frequently Asked Questions
What is the exact Siemens line item?
It is the SENTRON 7KM2111-1BA00-3AA0 measuring device, 7KM PAC3200.
Which supply voltage does this configuration use?
It uses an extra-low voltage DC power supply at 22 … 65 V +/- 10%.
Which communication interface and protocol are provided?
It has 1 Fast Ethernet interface and supports MODBUS TCP at 10 000 kbit/s.
What are the mounting dimensions?
The device is 96 mm high, 96 mm wide, and 56 mm deep, with 51 mm installation depth and vertical mounting.
Can this line item be included in a project quotation with other BOM lines?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
