Product Overview
Technical Summary
| Product type | IFP2200 V2 |
|---|---|
| Display | TFT widescreen display, LED backlighting |
| Screen diagonal | 21.5 in; 22" |
| Image resolution | 1 920 x 1 080 |
| Touch screen | Projective-capacitive multi-touch |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| Interfaces | DisplayPort V1.2; 2 USB 2.0 type A |
| Mounting | Built-in unit; VESA 100 x 100 integrated |
| Protection | IP65 at the front; IP20 at the rear |
| Separation distance | 100 m; HDBaseT protocol |
| Lifecycle | Active Product |
Key Features

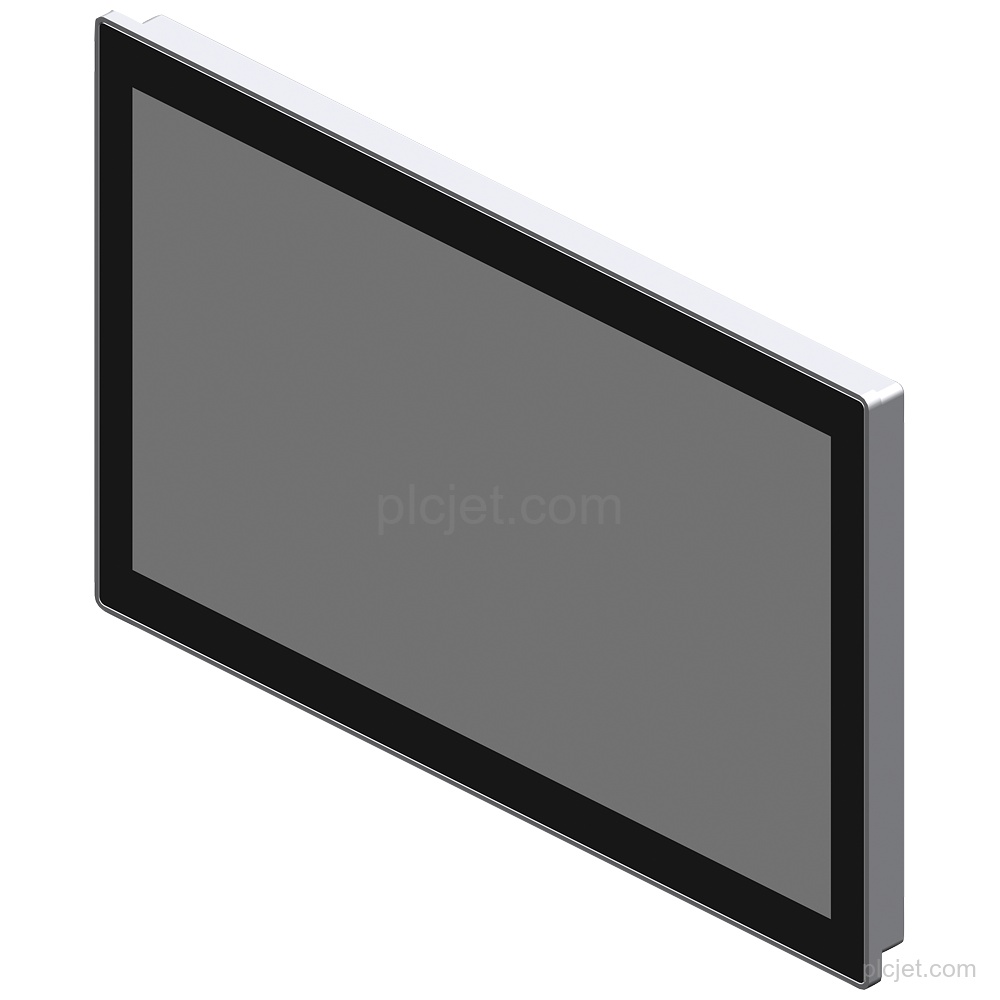

TFT widescreen display with LED backlighting, 22" diagonal, and 1 920 x 1 080 image resolution.
Projective-capacitive multi-touch screen with DisplayPort V1.2 and 2 USB 2.0 type A interfaces on the rear.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; IP65 at the front and IP20 at the rear.
Built-in unit with front and VESA 100 x 100 mounting; detachable from the computer unit up to 100 m using HDBaseT.
Frequently Asked Questions
What display resolution does the 6AV7863-4MA10-2NA0 provide?
Image resolution is 1 920 x 1 080.
What supply voltage and interfaces are specified?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Interfaces include DisplayPort V1.2 and 2 USB 2.0 type A interfaces.
