Product Overview
Technical Summary
| Output | 24 V DC/5 A; 120 W typical supplied active power |
|---|---|
| Input | 1-phase AC or DC; 120–240 V AC; 120 … 240 V DC |
| Diagnostic interface | Unidirectional; data sent to the higher-level control and analysis system |
| Output protection | Short-circuit proof; constant current characteristic; < 33 V overvoltage protection |
| Protection class | IP20 |
Key Features
Stabilized output: 24 V DC/5 A, with 120 W typical supplied active power.
Input: 1-phase AC or DC; 120–240 V AC and 120 … 240 V DC supply voltage.
Communication function: Yes. The unidirectional interface can only send data to the higher-level control and analysis system.
The output is short-circuit proof, with constant current characteristic and < 33 V overvoltage protection.
Protection class: IP20. Operating resource protection class: Class I.
Galvanic isolation between input and output: Yes. Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7).
Frequently Asked Questions
What is the exact power module variant?

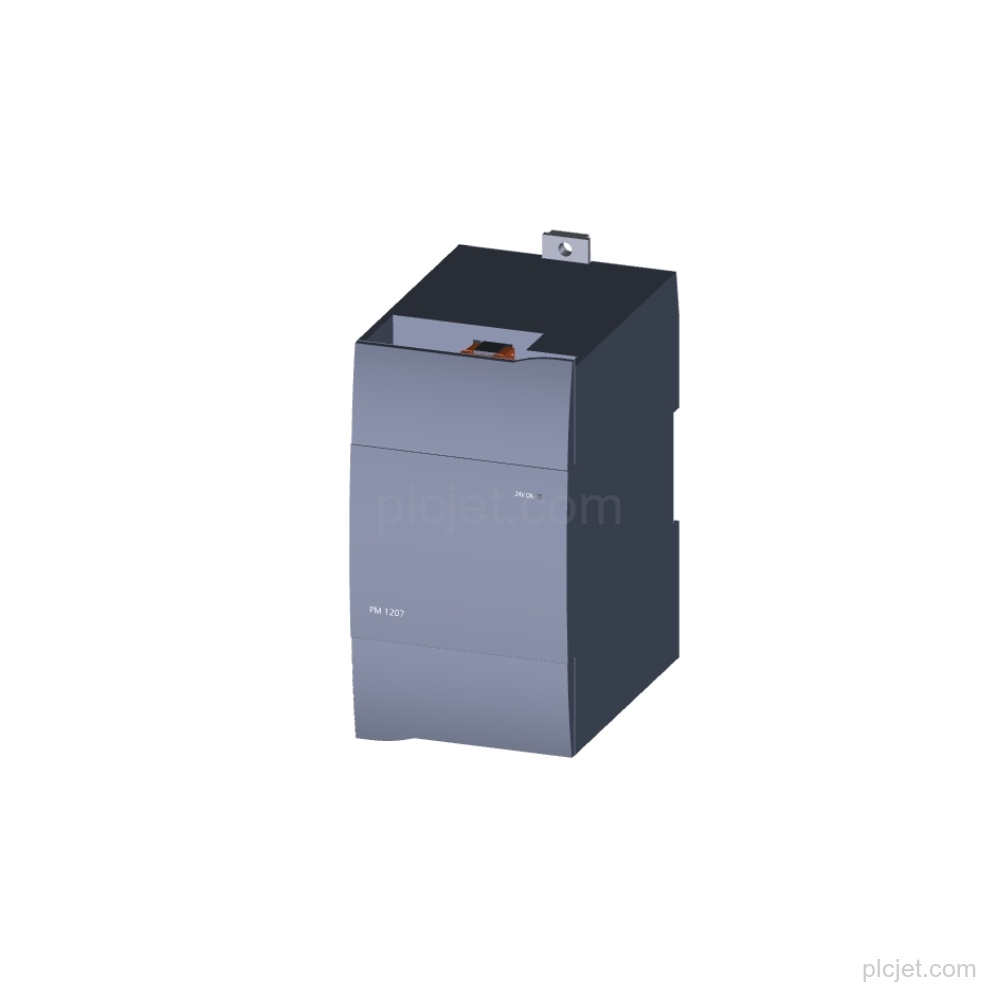

It is Siemens 6EP3333-4SB00-3AX0, a SIMATIC S7-1200 PM 1207 power module.
What input and output values does it have?
Input: 1-phase AC or DC, 120–240 V AC and 120 … 240 V DC. Output: 24 V DC/5 A.
What interface is provided?
It has a unidirectional communication interface that can only send data to the higher-level control and analysis system.
What protection details should be retained in the quotation?
The output is short-circuit proof, the overvoltage protection is < 33 V, and the protection class is IP20.
