6AV2123-2GB03-0AX0

6AV2123-2GB03-0AX0 is a Siemens SIMATIC HMI Basic Panel with a 7 in TFT display, PROFINET interface and 24 V DC supply. Include this line item in a project quotation with quantity and destination.

Product Code: 6AV2123-2GB03-0AX0

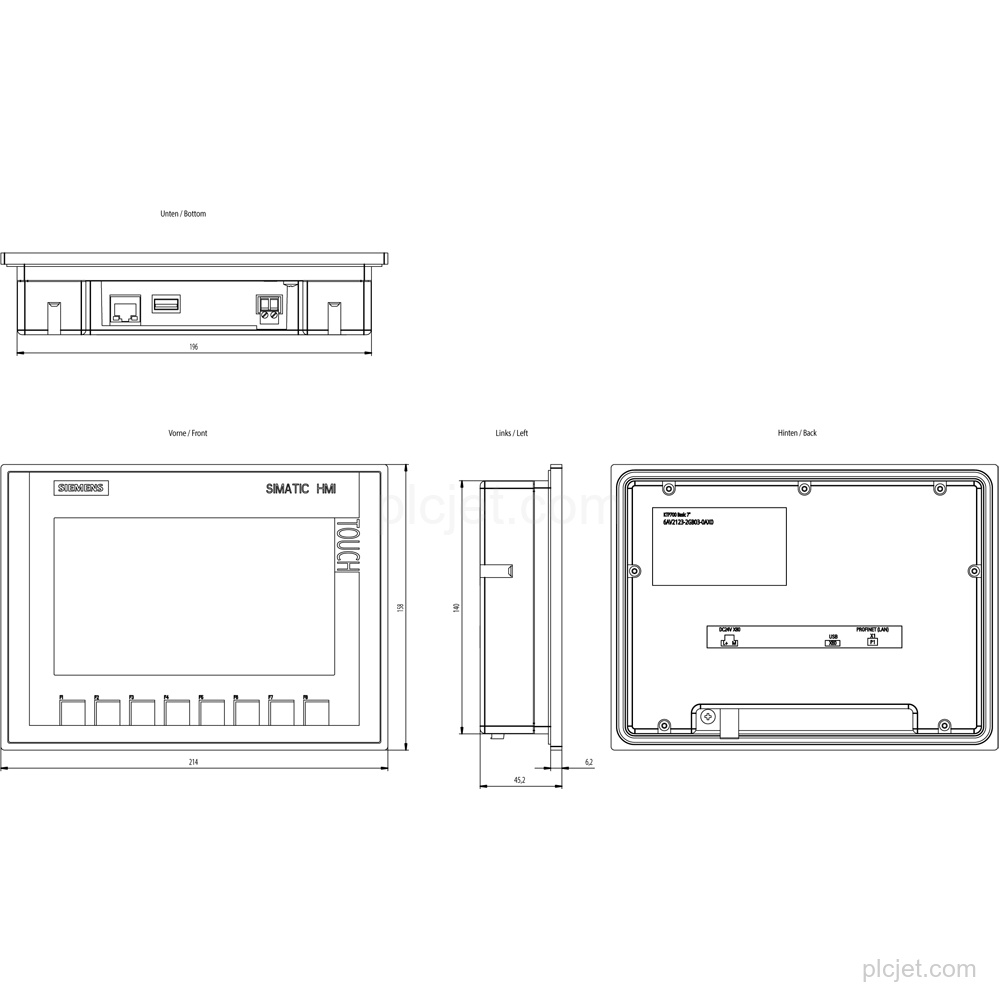

Dimensions: 27.6 × 20.5 × 7.8 cm
Weight: 0.977 kg
Lifecycle: Active Product
Availability: in stock
Lead Time: Confirmed with quotation
Product Attachment: Download Datasheet

Product Tags

Request a Quote

Product Overview

Technical Summary

Product type designation	KTP700 Basic color PN
Display	7 in TFT widescreen display, LED backlighting; 65 536 colors
Resolution	800 pixel × 480 pixel
Operation	Key/touch operation; analog-resistive touch screen; 8 function keys
Industrial Ethernet interfaces	1
USB interface	1; up to 16 GB
Supported protocols	PROFINET; EtherNet/IP; TCP/IP; DHCP; DCP; LLDP; MODBUS TCP/IP
Supply voltage	24 V DC rated; permissible range from 19.2 V to 28.8 V
Typical active power input	5.5 W
Mounting	Vertical; portrait and landscape mounting possible
Protection	IP65 at the front; IP20 at the rear

Key Features

Display and operation

7 in TFT widescreen display with LED backlighting, 65 536 colors, 800 pixel × 480 pixel resolution, key/touch operation and an analog-resistive touch screen.

Function keys and keyboards

8 function keys, numeric and alphanumeric onscreen keyboards, and no function keys with LEDs.

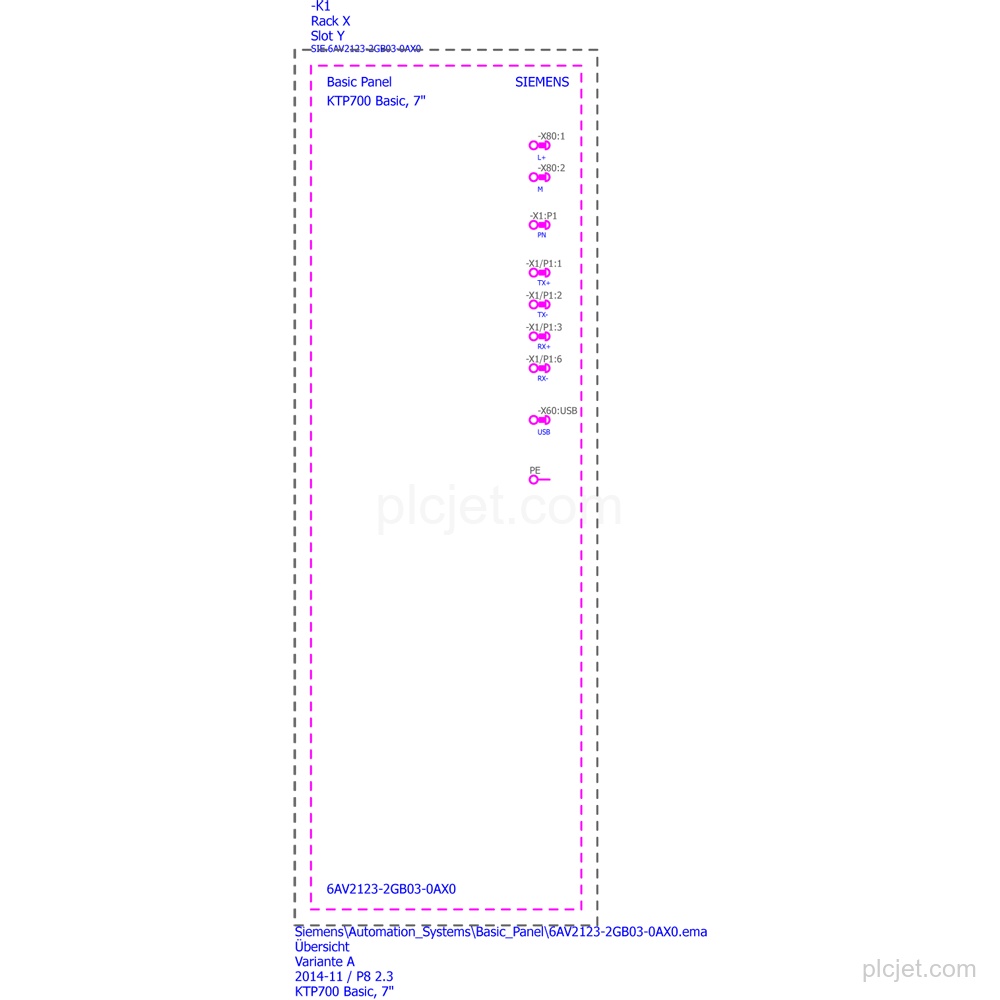

Interfaces and protocols

1 industrial Ethernet interface and 1 USB interface supporting up to 16 GB; PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP and MODBUS TCP/IP are supported.

Supply and power

24 V DC rated supply with a permissible range from 19.2 V to 28.8 V; rated current consumption is 230 mA and typical active power input is 5.5 W.

Mounting and protection

Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.

Frequently Asked Questions

What is the exact product variant?

The product type designation is KTP700 Basic color PN, order number 6AV2123-2GB03-0AX0.

What display configuration does this Basic Panel have?

It has a 7 in TFT widescreen display with LED backlighting, 65 536 colors and 800 pixel × 480 pixel resolution.

Which interfaces and protocols are supported?

It has 1 industrial Ethernet interface and 1 USB interface supporting up to 16 GB. Supported protocols include PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP and MODBUS TCP/IP.

What supply voltage is required?

The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
