Product Overview
Technical Summary

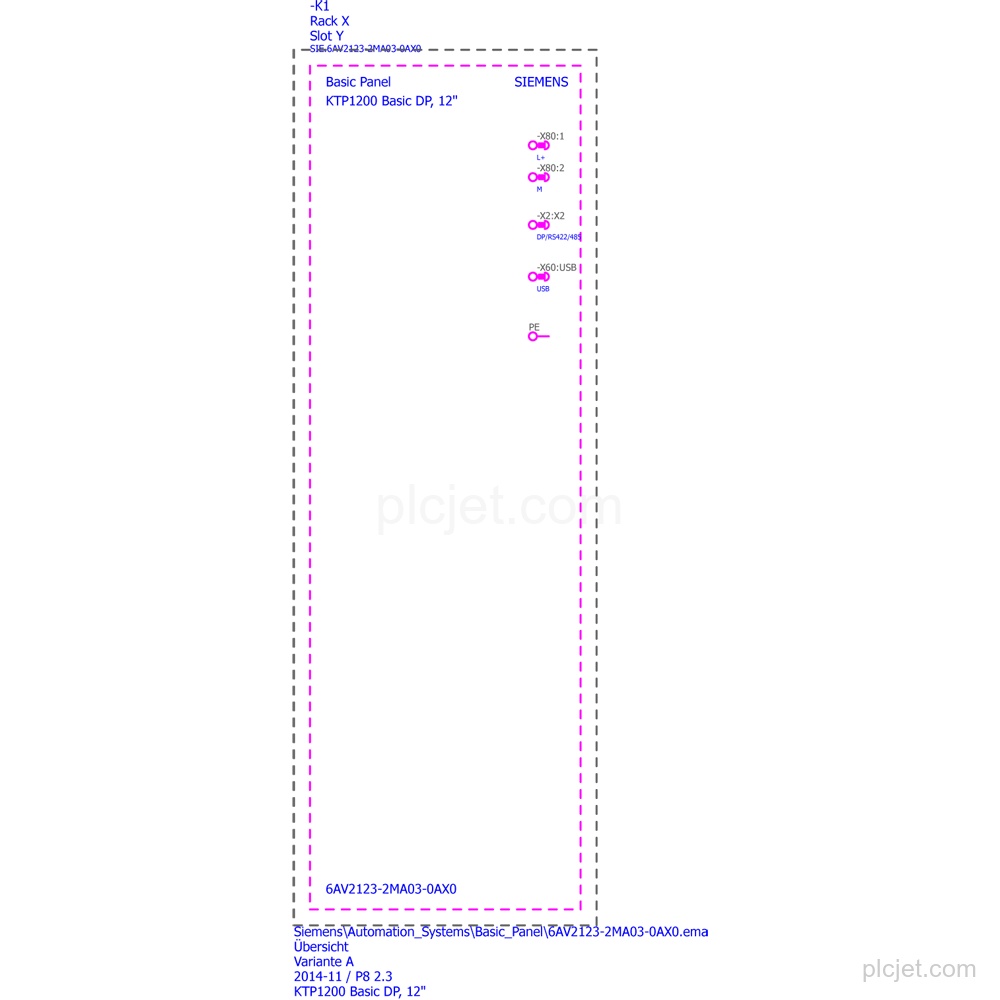

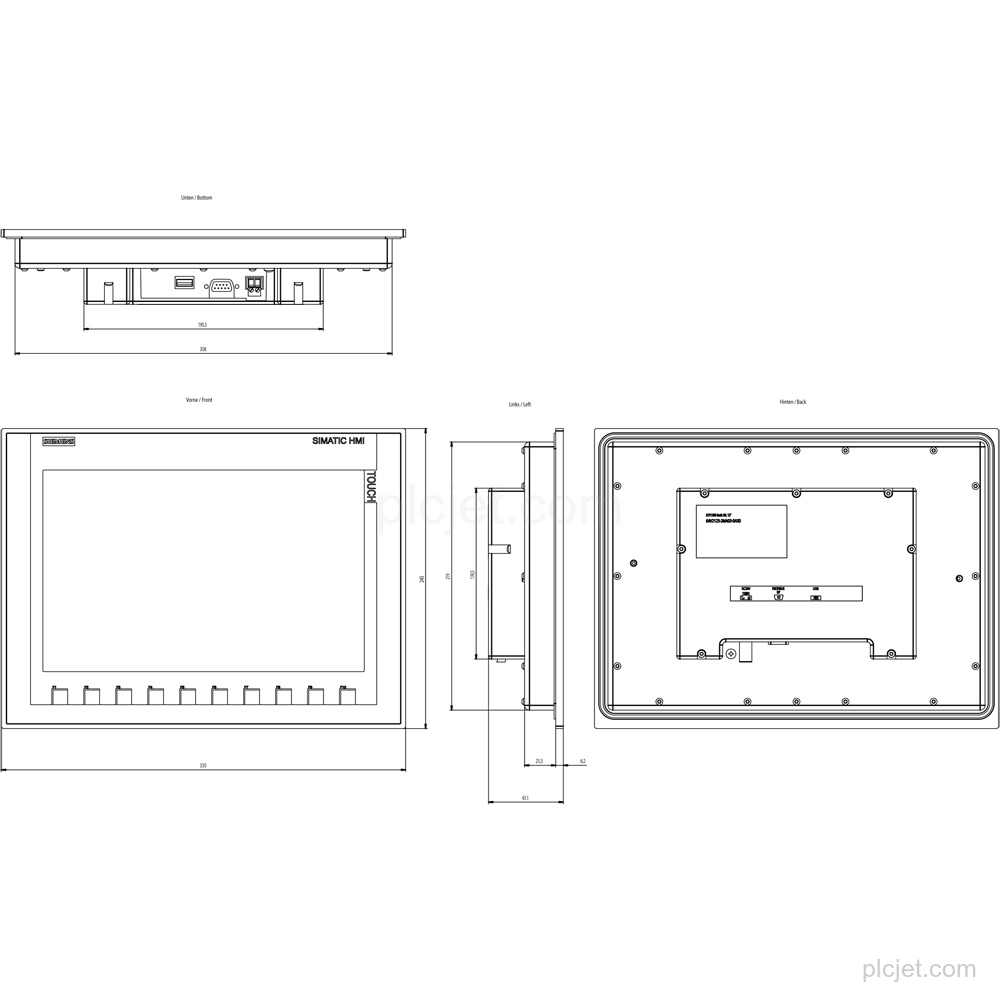

| Product type designation | KTP1200 Basic color DP |
|---|---|
| Display | 12 in TFT widescreen display, LED backlighting; 65 536 colors |
| Resolution | 1 280 × 800 pixel |
| Operation | Key/touch operation; analog-resistive touch screen |
| Interfaces | 1 RS 485; 1 RS 422 together with RS 485; 1 USB up to 16 GB |
| Protocols | PROFIBUS; MPI; MODBUS RTU |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Power input | 13.2 W active power input, typ. |
| User data memory | 10 Mbyte |
| Mounting | Vertical; portrait and landscape formats possible; maximum permissible angle of inclination without external ventilation: 35° |
| Protection | IP65 at the front; IP20 at the rear |
| Software | Configurable as of WinCC Basic V13 / STEP 7 Basic V13 |
Key Features
KTP1200 Basic color DP with key/touch operation.
12 in TFT widescreen display with LED backlighting, 65 536 colors, and 1 280 × 800 pixel resolution.
1 RS 485 interface, 1 RS 422 interface together with RS 485, 1 USB interface up to 16 GB, PROFIBUS and MPI.
24 V DC rated supply value with a permissible range from 19.2 V to 28.8 V.
Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection: IP65 at the front and IP20 at the rear.
Configurable as of WinCC Basic V13 / STEP 7 Basic V13; contains open-source software provided free of charge on the enclosed CD.
Frequently Asked Questions
What is the exact product variant?
It is the Siemens 6AV2123-2MA03-0AX0, KTP1200 Basic color DP.
What display and operation configuration does it have?
It has a 12 in TFT widescreen display with 65 536 colors and 1 280 × 800 pixel resolution, with key/touch operation and an analog-resistive touch screen.
Which interfaces and protocols are provided?
It has 1 RS 485 interface, 1 RS 422 interface together with RS 485, and 1 USB interface up to 16 GB. PROFIBUS, MPI, and MODBUS RTU are supported.
What supply and mounting facts should be retained in the quotation?
Supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Mounting is vertical; portrait and landscape formats are possible, with a maximum permissible angle of inclination without external ventilation of 35°.
Can this line item be included with quantity, destination, schedule, and additional BOM lines?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines for project quotation review.
