Product Overview
Technical Summary
| Product type | KTP1200 Basic color PN |
|---|---|
| Display | 12 in TFT widescreen display, LED backlighting; 65 536 colors |
| Resolution | 1 280 × 800 pixel |
| Operation | Key/touch operation; analog-resistive touch screen; 10 function keys |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |
| Power input | 12.2 W typical |

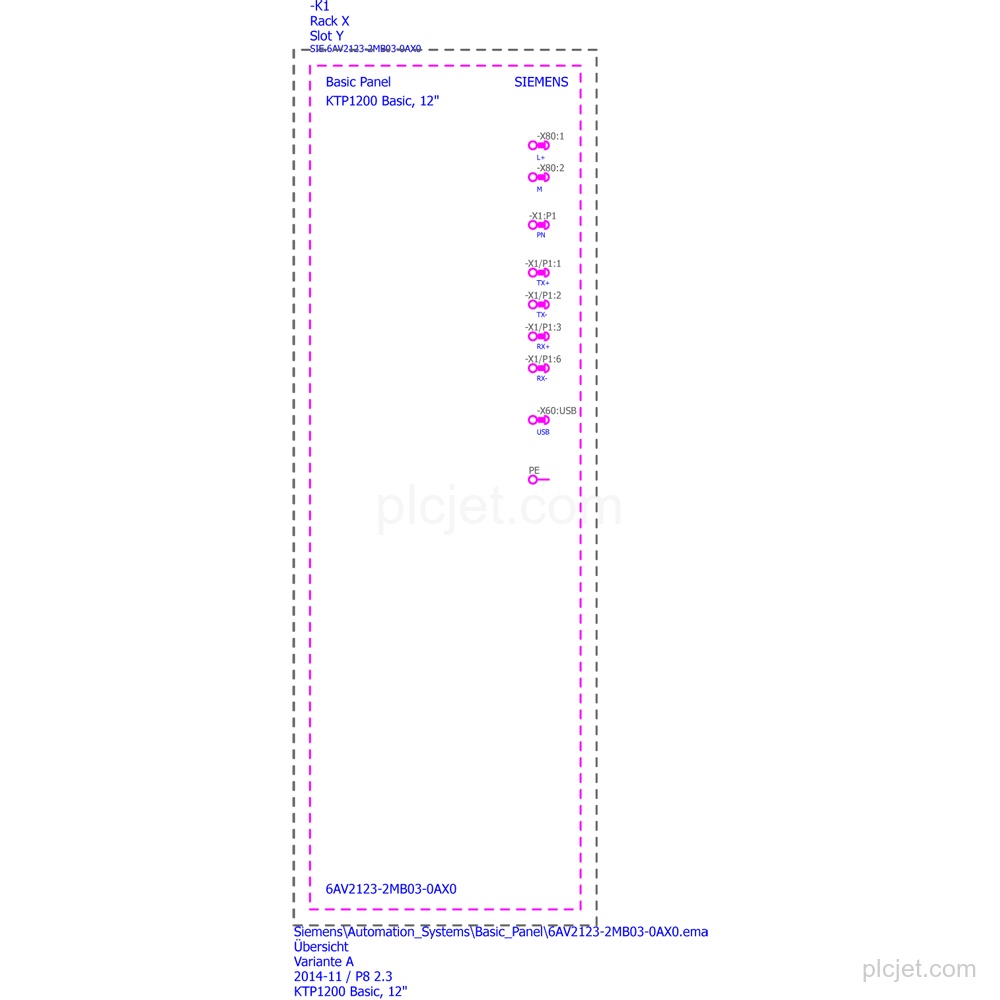

| Interfaces | 1 industrial Ethernet interface; 1 USB interface, up to 16 GB |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; DCP; LLDP; MODBUS TCP/IP |

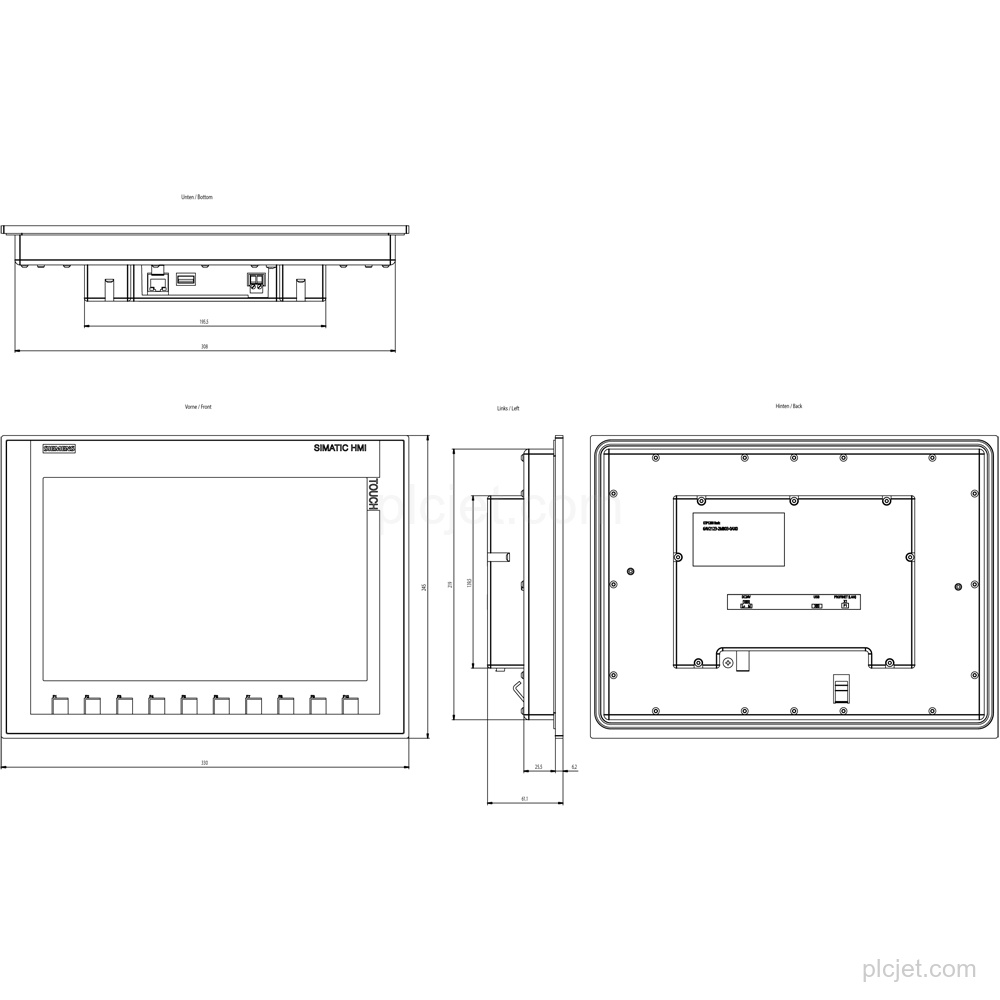

| Mounting | Vertical; portrait or landscape format possible; inclination up to 35° without external ventilation |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
12 in TFT widescreen display with LED backlighting, 65 536 colors, 1 280 × 800 pixel resolution, 10 function keys, and analog-resistive touch operation.
DC supply with a rated value of 24 V, permissible range from 19.2 V to 28.8 V, and typical active power input of 12.2 W.
1 industrial Ethernet interface, 1 USB interface supporting up to 16 GB, PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP.
Vertical mounting with portrait or landscape format possible; maximum permissible inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
Configurable from WinCC Basic V13/STEP 7 Basic V13. The product contains open-source software provided free of charge on the enclosed CD.
Frequently Asked Questions
What exact HMI line item is 6AV2123-2MB03-0AX0?
It is a SIMATIC HMI KTP1200 Basic color PN with key/touch operation.
What display configuration does this panel have?
It has a 12 in TFT widescreen display with LED backlighting, 65 536 colors, and 1 280 × 800 pixel resolution.
Which interfaces and protocols are provided?
It has 1 industrial Ethernet interface and 1 USB interface supporting up to 16 GB. Supported protocols include PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP.
How can this panel be mounted?
Mounting is vertical, with portrait or landscape format possible. The maximum permissible inclination without external ventilation is 35°.
