Product Overview
Technical Summary

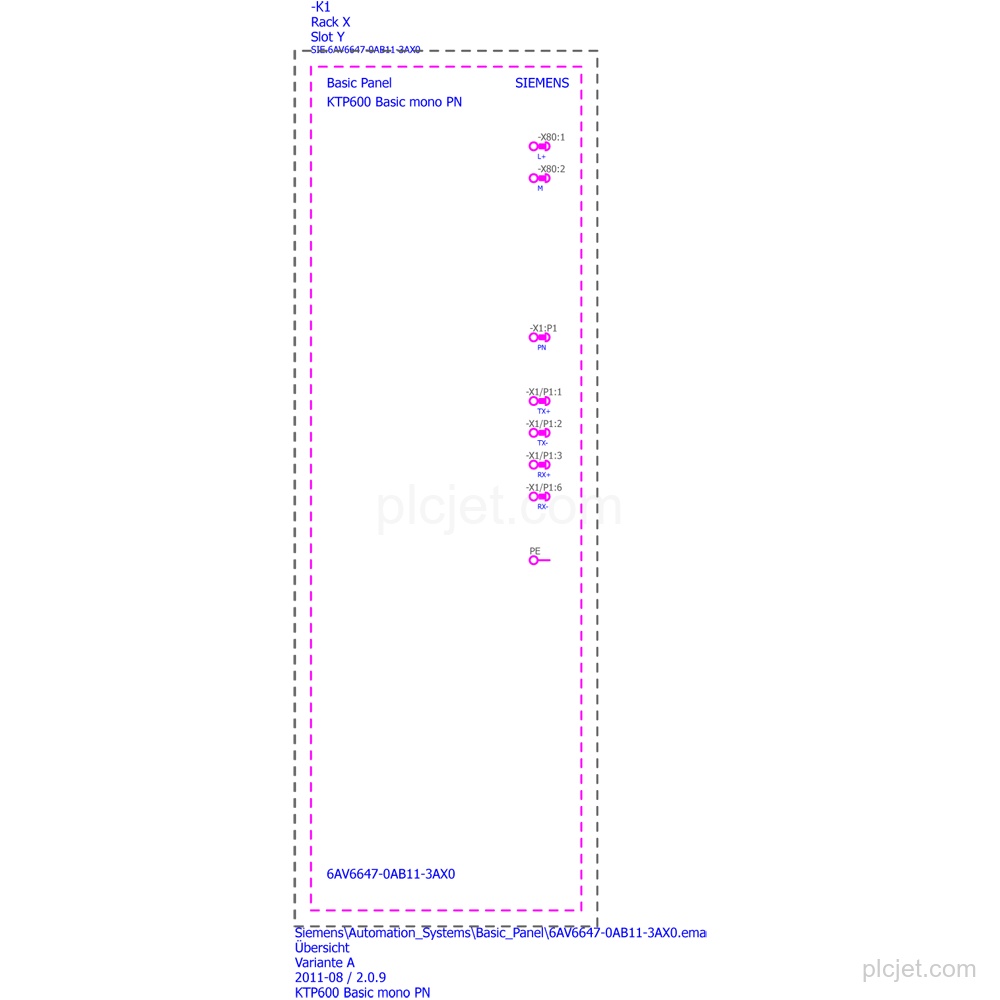

| Product type | KTP600 Basic mono PN |
|---|---|
| Display | 5.7 in STN, 4 grayscales |
| Resolution | 320 pixel × 240 pixel |
| Operation | Key/touch operation; analog-resistive touch screen |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Industrial Ethernet | 1 interface; 2 status LEDs |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; SNMP; DCP; LLDP; MODBUS TCP/IP |
| User data memory | 1 Mbyte |
| Protection | IP65 at the front; IP20 at the rear |
| Mounting | Vertical; portrait and landscape possible; 35° maximum permissible angle without external ventilation |
| Configuration | WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5 |
| Lifecycle | Product cancellation |
Key Features
KTP600 Basic mono PN with key/touch operation.
5.7 in STN display with 4 grayscales and 320 pixel × 240 pixel resolution.
24 V DC rated supply value; permissible range: 19.2 V to 28.8 V.
1 industrial Ethernet interface; PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°.
Product cancellation. Configurable as of WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5; contains open-source software provided free of charge on the enclosed CD.
Frequently Asked Questions
What is the exact product type of 6AV6647-0AB11-3AX0?
It is a KTP600 Basic mono PN HMI with key/touch operation, a 5.7 in STN display, and 4 grayscales.
What supply voltage does the KTP600 Basic mono PN use?
It uses 24 V DC, with a permissible range from 19.2 V to 28.8 V.
Which interfaces and protocols are provided?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
How can this line item be configured?
It is configurable as of WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5.
