Product Overview
Technical Summary
| Product type | KTP600 Basic color DP |
|---|---|
| Display | TFT, 256 colors, 320 pixel × 240 pixel |
| Operation | Key/touch operation with 6 function keys and analog-resistive touch screen |

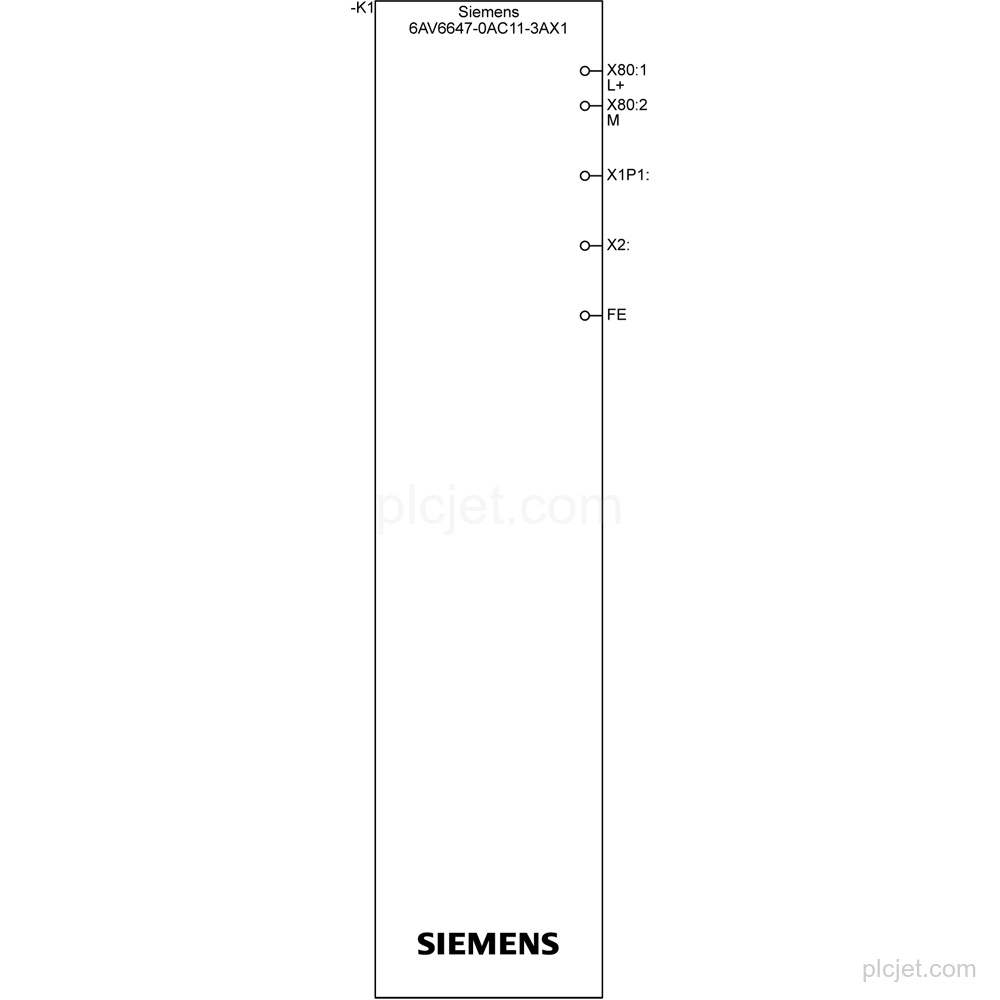

| Interfaces | 1 RS 485; 1 RS 422 |
| Protocols | PROFIBUS, MPI; MODBUS RTU: Modicon |
| Supply | 24 V DC rated value; permissible range 19.2 V to 28.8 V |
| Current consumption | 0.35 A rated value |
| Active power input | 9 W, typ. |
| User data memory | 1 Mbyte |

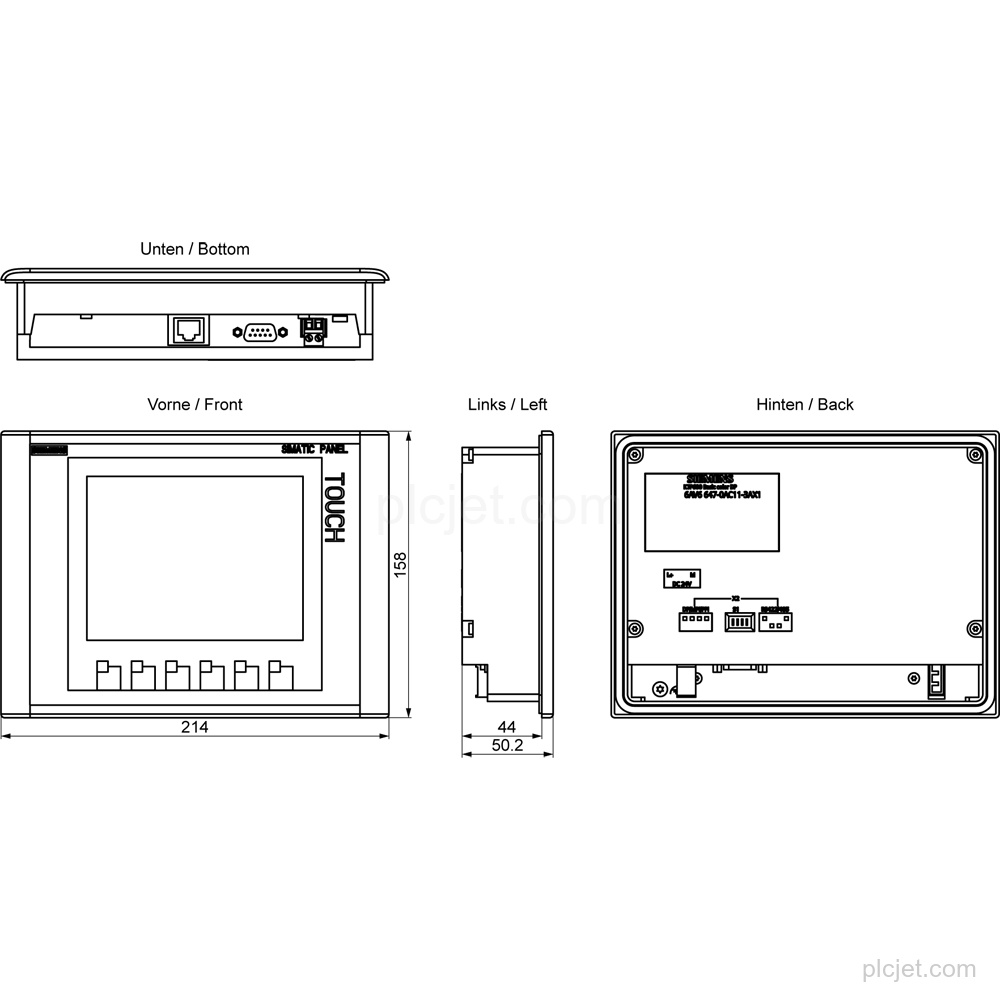

| Mounting | Vertical; portrait and landscape possible; maximum permissible angle of inclination without external ventilation 35° |
| Protection | IP65 at the front; IP20 at the rear |
| Lifecycle | Product cancellation |
Key Features
TFT display with 256 colors, 320 pixel horizontal image resolution, 240 pixel vertical image resolution, 6 function keys, and key/touch operation.
Analog-resistive touch screen with numeric and alphanumeric onscreen keyboards.
1 RS 485 interface and 1 RS 422 interface; PROFIBUS and MPI supported. PROFINET, EtherNet/IP, and USB are not supported.
24 V DC rated supply, permissible range 19.2 V to 28.8 V, current consumption 0.35 A, and typical active power input 9 W.
Vertical mounting position; portrait and landscape mounting possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection is IP65 at the front and IP20 at the rear.
Configurable as of WinCC flexible 2008 SP2 Compact, WinCC Basic V11, or STEP 7 Basic V11. Product cancellation; contains open-source software provided free of charge on the enclosed CD.
Frequently Asked Questions
What is the exact HMI variant?
It is the SIMATIC HMI KTP600 Basic Color DP, product 6AV6647-0AC11-3AX1.
Which interfaces and protocols does this configuration support?
It has 1 RS 485 interface and 1 RS 422 interface, with PROFIBUS and MPI supported. MODBUS RTU is supported as Modicon; PROFINET and EtherNet/IP are not supported.
What supply does the panel require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
How is the panel mounted and protected?
The mounting position is vertical, with portrait and landscape mounting possible. The maximum permissible angle of inclination without external ventilation is 35°; protection is IP65 at the front and IP20 at the rear.
