Product Overview
Technical Summary
| Product type | KTP600 Basic color PN |
|---|---|
| Display | TFT, 256 colors |
| Display resolution | 320 pixel × 240 pixel |
| Operation | 6 function keys and analog-resistive touch screen |

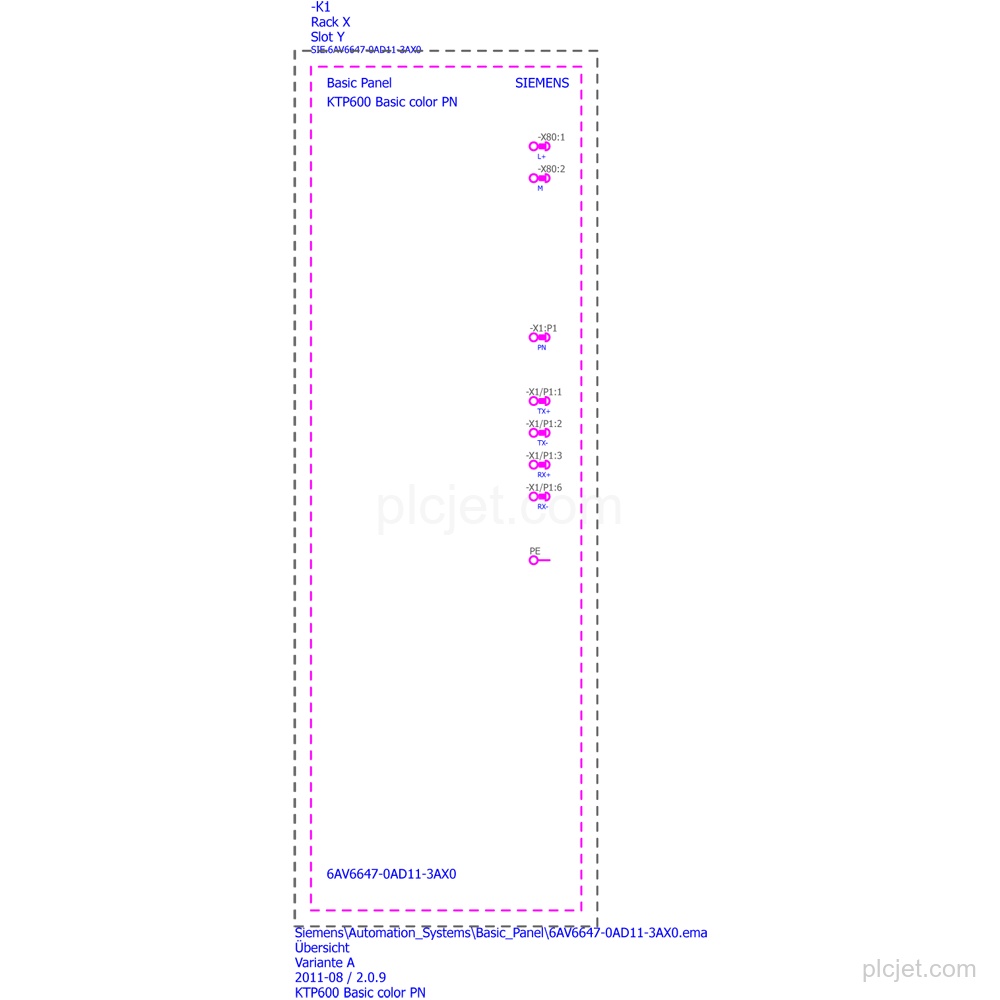

| Industrial Ethernet interfaces | 1 |
| PROFINET | Yes |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V |
| User data memory | 1 Mbyte |

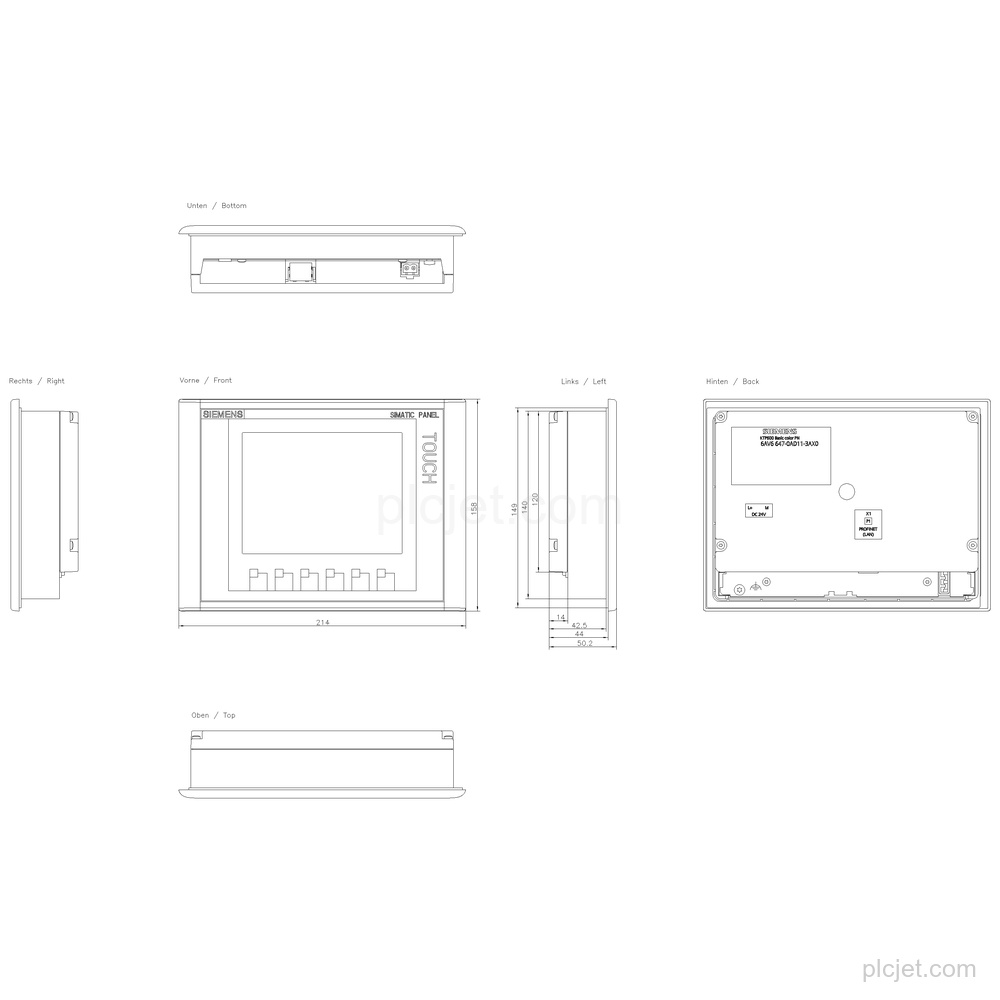

| Mounting | Vertical; portrait and landscape possible |
| Front protection | IP65 |
| Rear protection | IP20 |
Key Features
TFT display with 256 colors, 320 pixel horizontal resolution, 240 pixel vertical resolution, 6 function keys, and analog-resistive touch operation.
1 industrial Ethernet interface with PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP; 2 industrial Ethernet status LEDs.
24 V DC rated supply with a permissible range of 19.2 V to 28.8 V.
Configurable as of WinCC flexible 2008 SP2 Compact, WinCC Basic V10.5, and STEP 7 Basic V10.5.
Vertical mounting position; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection: IP65 at the front and IP20 at the rear.
Product cancellation. Contains open-source software provided free of charge; the enclosed CD is included.
Frequently Asked Questions
What exact HMI model is 6AV6647-0AD11-3AX0?
It is the SIMATIC HMI KTP600 Basic Color PN, product type designation KTP600 Basic color PN.
What display and operator controls does it have?
It has a 256-color TFT display with 320 pixel × 240 pixel resolution, 6 function keys, and an analog-resistive touch screen.
Which interfaces and protocols are included?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP.
What supply and mounting details should be retained in the quotation?
The supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape mounting possible; protection is IP65 at the front and IP20 at the rear.
How should this line item be included in a project inquiry?
Include the requested quantity, destination, schedule context, and any additional BOM lines with 6AV6647-0AD11-3AX0.
