Product Overview
Technical Summary
| Product type | KP300 Basic mono PN |
|---|---|
| Display | FSTN; 240 pixel × 80 pixel resolution |
| Function keys | 10; 0 with LEDs |
| Industrial Ethernet interfaces | 1 |
| Supply voltage | DC, 24 V rated; 19.2 V to 28.8 V permissible range |

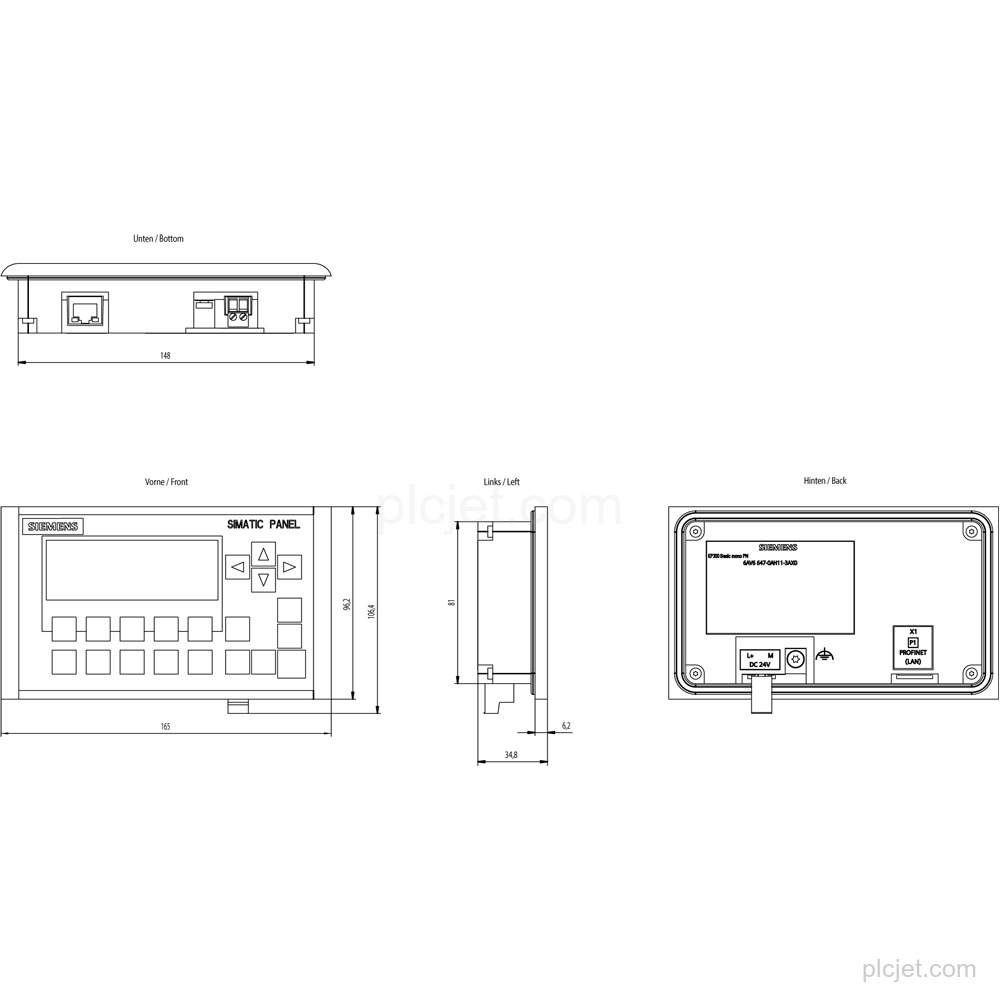

| Mounting | Vertical; landscape format possible; maximum permissible angle of inclination without external ventilation: 35° |
| Protection | IP65 at the front; IP20 at the rear |
| Configuration | WinCC Basic V11 / STEP 7 Basic V11 |
| Product lifecycle | Product cancellation |
Key Features
KP300 Basic mono PN with key operation, 10 function keys, numeric keyboard, and alphanumeric keyboard.
FSTN display with 240 pixel horizontal image resolution and 80 pixel vertical image resolution.

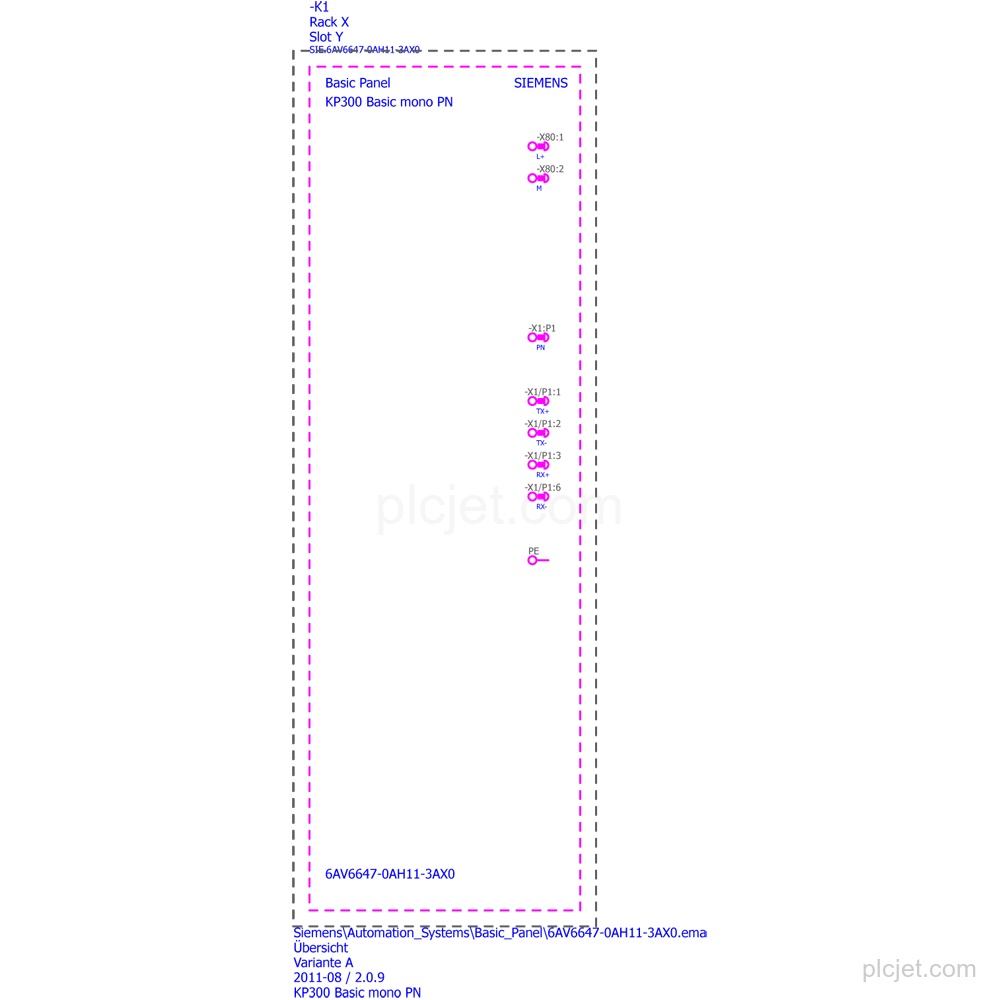

Has 1 industrial Ethernet interface and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
DC supply with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
Vertical mounting is supported, landscape mounting is possible, and protection is IP65 at the front and IP20 at the rear.
Configurable as of WinCC Basic V11 / STEP 7 Basic V11; product cancellation.
Frequently Asked Questions
What exact HMI variant is Siemens 6AV6647-0AH11-3AX0?
It is the SIMATIC HMI KP300 Basic mono PN with key operation.
What interfaces and protocols does this line item have?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
What supply voltage does the KP300 Basic mono PN use?
The supply is DC, with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
How is this HMI mounted and protected?
Mounting is vertical, landscape format is possible, and the protection ratings are IP65 at the front and IP20 at the rear.
