Product Overview
Technical Summary

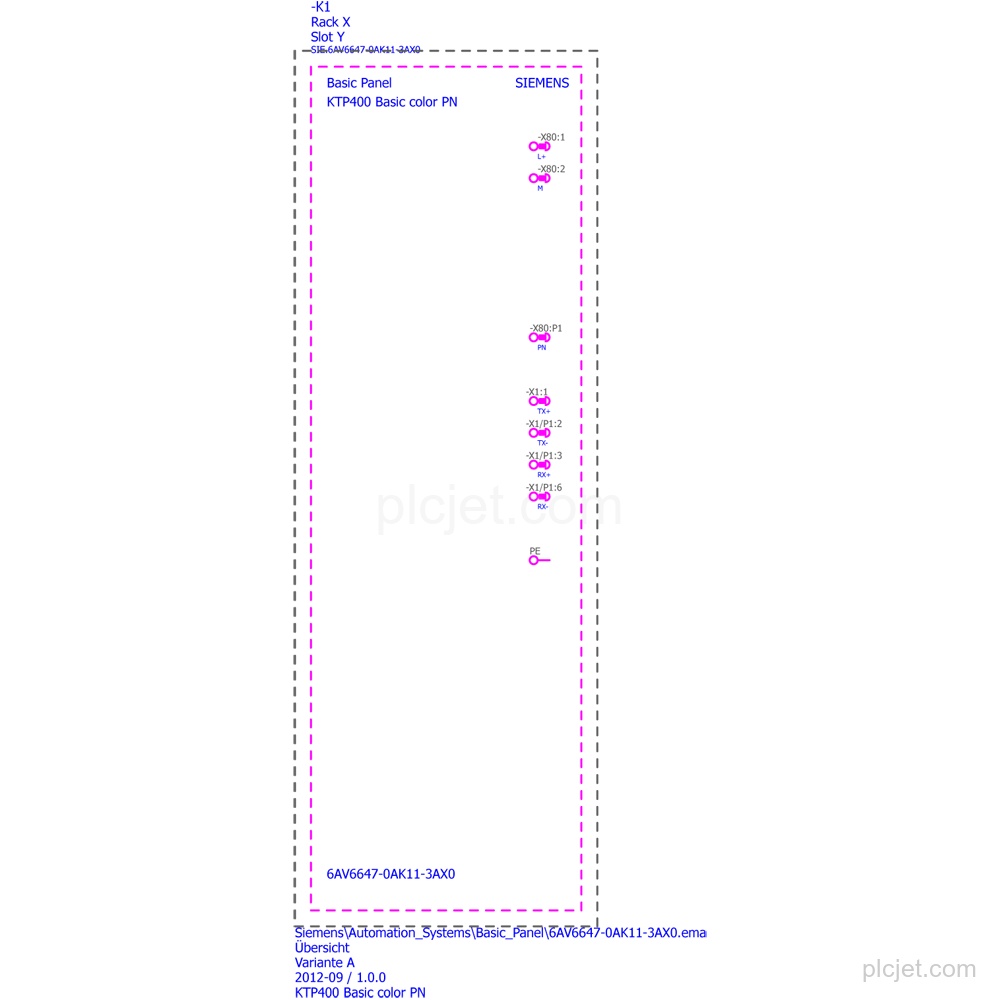

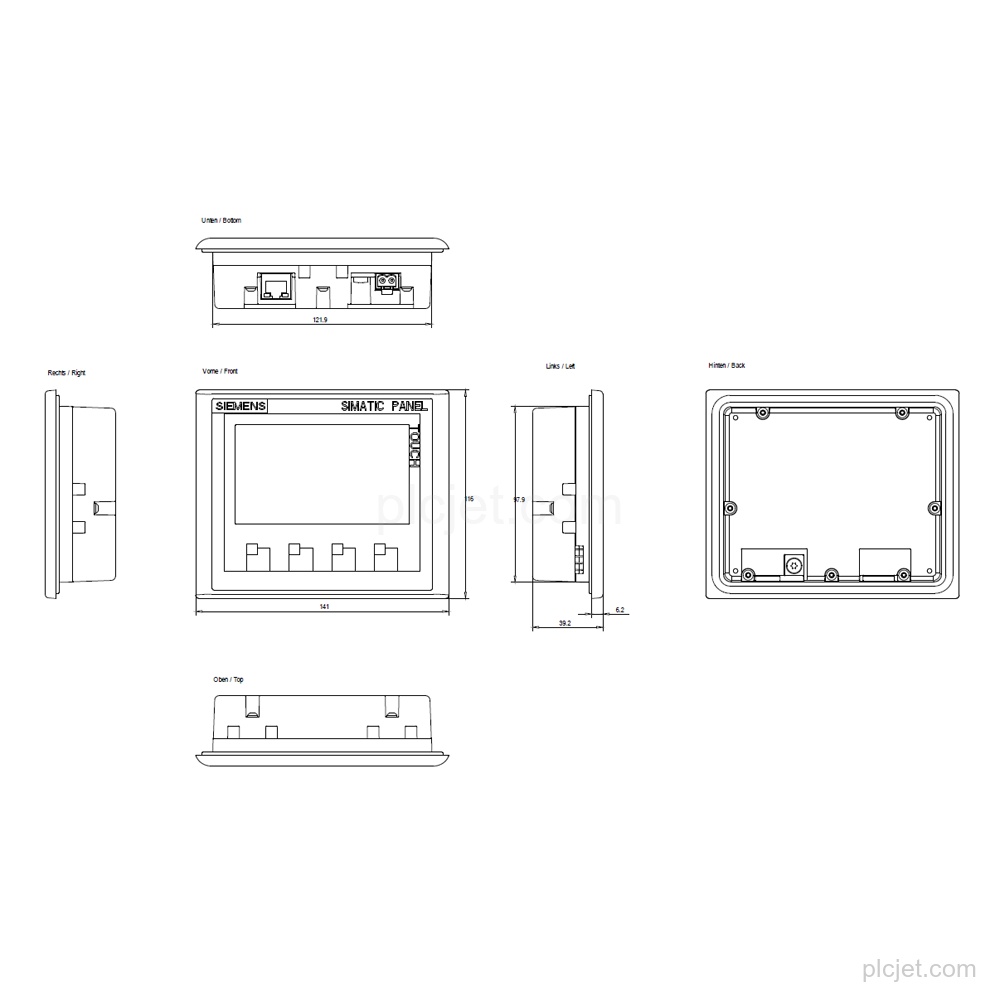

| Product type designation | KTP400 Basic color PN |
|---|---|
| Display | 4.3 in widescreen TFT, 256 colors |
| Resolution | 480 pixel × 272 pixel |
| Operation | Key/touch operation; 4 function keys; analog-resistive touch screen |
| Industrial Ethernet interfaces | 1 |
| Protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; SNMP; DCP; LLDP; MODBUS TCP/IP |
| Supply | DC, 24 V rated; permissible range 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape mounting possible |
| Protection | IP65 front, IP20 rear; Enclosure Type 4 and Enclosure Type 4x at the front |
| Product lifecycle | Product cancellation |
Key Features
The panel has key/touch operation, 4 function keys, and an analog-resistive touch screen.
The TFT display has a 4.3 in screen diagonal, 480 pixel × 272 pixel resolution, and 256 colors.
The device has 1 industrial Ethernet interface and supports PROFINET, TCP/IP, DHCP, SNMP, DCP, and LLDP.
The DC supply has a rated value of 24 V and a permissible range of 19.2 V to 28.8 V.
Vertical mounting is supported, with portrait and landscape mounting possible. The maximum permissible angle of inclination without external ventilation is 35°.
The front has IP65 protection and Enclosure Type 4 and Enclosure Type 4x; the rear has IP20 protection.
Frequently Asked Questions
What is the exact product designation of 6AV6647-0AK11-3AX0?
The product type designation is KTP400 Basic color PN.
What display and operation configuration does this line item have?
It has a 4.3 in widescreen TFT display with 256 colors and 480 pixel × 272 pixel resolution, plus key/touch operation and 4 function keys.
Which interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
What supply and mounting details should be retained in the BOM?
The supply is DC, 24 V rated, with a permissible range of 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape mounting possible.
