Product Overview
Technical Summary
| Product type | KTP400 Basic color PN |
|---|---|
| Display | 4.3 in TFT, 256 colors |
| Resolution | 480 pixel × 272 pixel |
| Operation | Key/touch operation; 4 function keys; analog-resistive touch screen |

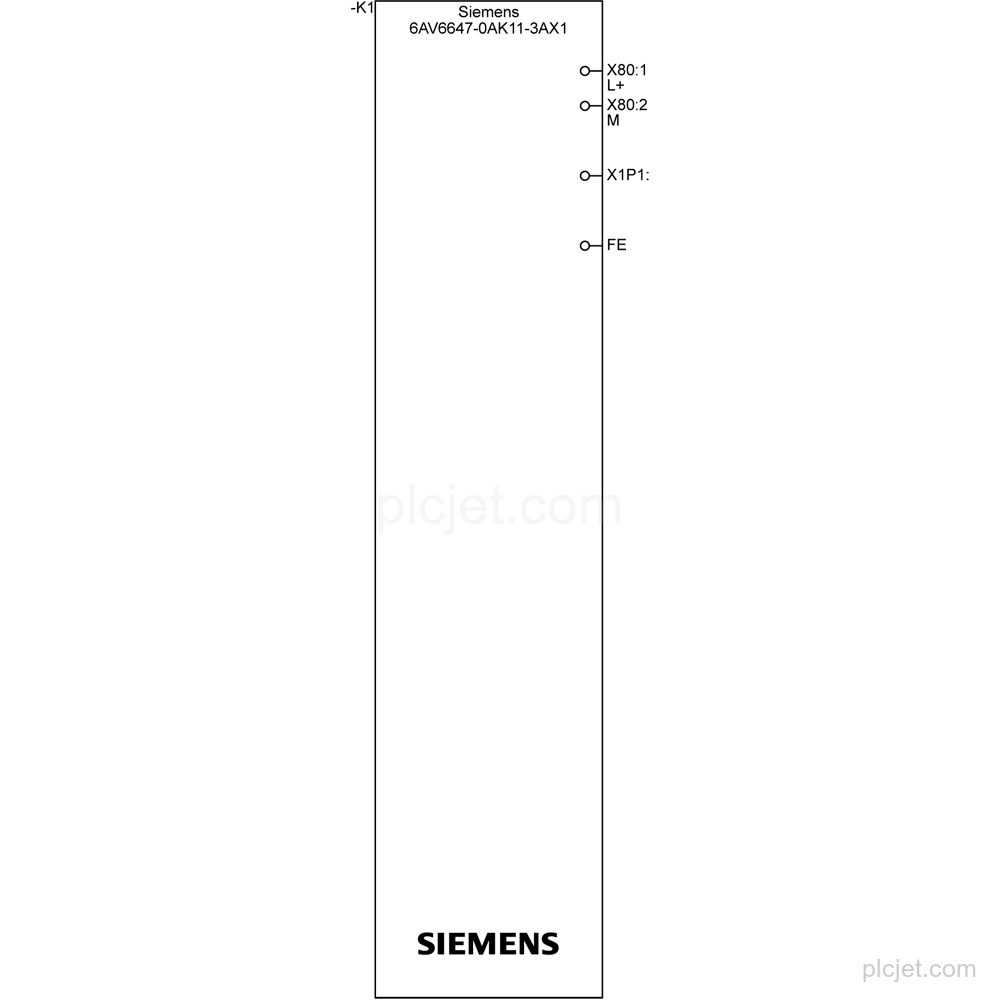

| Interface | 1 industrial Ethernet interface; PROFINET |
| Supply | 24 V DC; permissible range from 19.2 V to 28.8 V |

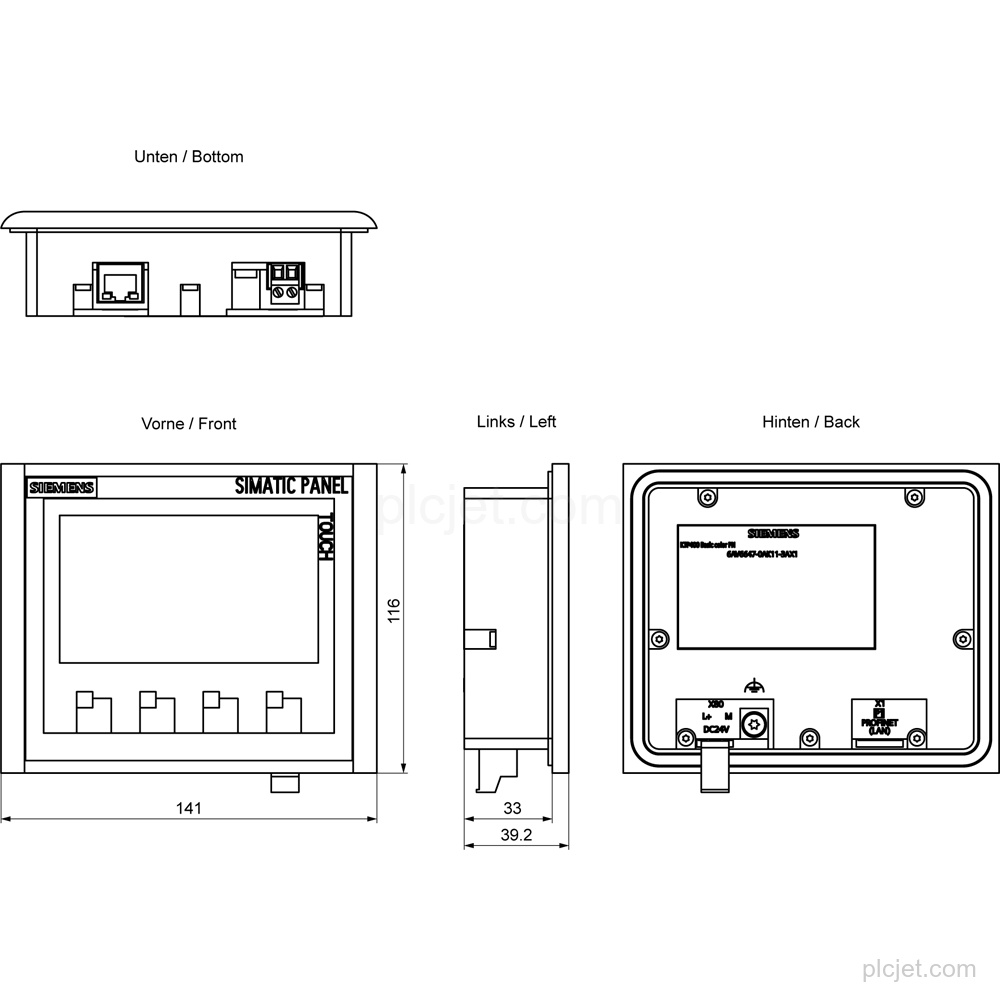

| Mounting | Vertical; portrait and landscape possible; maximum permissible angle of inclination without external ventilation: 35° |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
4.3 in TFT display with 480 pixel horizontal resolution, 272 pixel vertical resolution, and 256 colors.
Key/touch operation with 4 function keys and an analog-resistive touch screen; numeric and alphanumeric onscreen keyboards are available.
1 industrial Ethernet interface with PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, and LLDP; MODBUS TCP/IP is supported.
24 V DC rated supply value with a permissible range from 19.2 V to 28.8 V.
Vertical mounting; portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
IP65 at the front and IP20 at the rear; Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
What is the exact product type of 6AV6647-0AK11-3AX1?
It is a SIMATIC HMI KTP400 Basic Color PN with product type designation KTP400 Basic color PN.
What display and operation configuration does it have?
It has a 4.3 in TFT display with 256 colors, 4 function keys, and an analog-resistive touch screen with numeric and alphanumeric onscreen keyboards.
Which communication interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, SNMP, DCP, LLDP, and MODBUS TCP/IP.
What supply and mounting details should be retained in a quotation?
The supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V. Mounting is vertical, with portrait and landscape mounting possible.
