Product Overview
Technical Summary

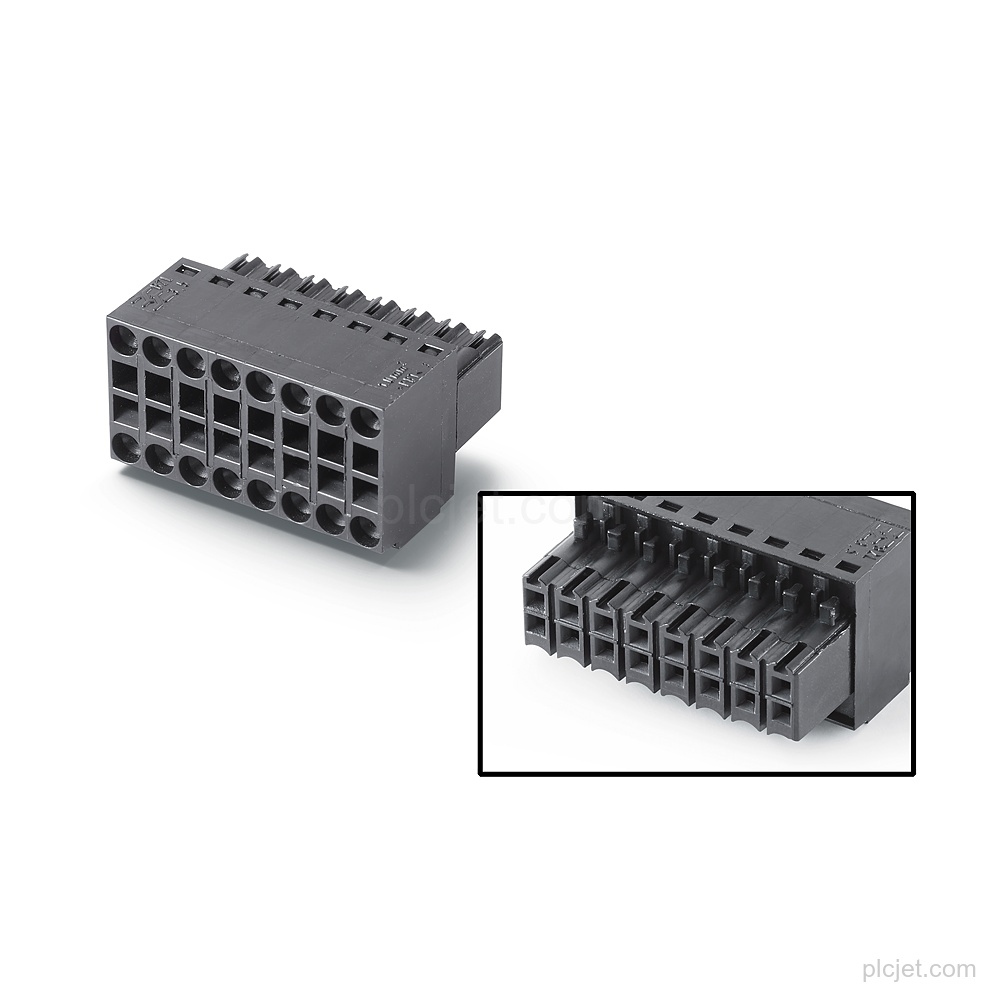

| Product type | Connector, female, 16-pin |
|---|---|
| Orientation | 180° |
| Conductor cross-section | 0.14 to 1.5 mm2 |
| HMI-side interface | 16 female spring-loaded terminals, 3.5 mm grid |
| Device-side interface | 16 female spring-loaded terminals, 0.75 mm2 |
| Mounting | Wall mounting/direct mounting; can be plugged into SIMATIC HMI device |
| Scope of supply | 10 plugs |
| Rated value (DC) | 24 V |
| Current consumption (rated value) | 9 A; typical, maximum value |
Key Features
Female, 16-pin connector with 180° orientation.
0.14 to 1.5 mm2.
16 female spring-loaded terminals on a 3.5 mm grid.
16 female spring-loaded terminals for 0.75 mm2.
Wall mounting/direct mounting; can be plugged into SIMATIC HMI device.
10 plugs.
Frequently Asked Questions
What is the exact connector configuration?
It is a female, 16-pin connector with 180° orientation.
What conductor cross-section does it support?
The conductor cross-section is 0.14 to 1.5 mm2.
What terminals are provided on the HMI side and device side?
The HMI side has 16 female spring-loaded terminals on a 3.5 mm grid. The device side has 16 female spring-loaded terminals for 0.75 mm2.
How many plugs are included, and what project details should be requested?
The scope of supply is 10 plugs. Include the requested quantity, destination, schedule, and any additional BOM lines in the quotation request.
