Product Overview
Applications
Provides operator help for resistive touch operation.
Provides operator help for capacitive touch operation.
Technical Summary
| Product type | Universal touch pen system (resistive/capacitive), including support |
|---|---|
| Touch operation | Operator help for resistive and capacitive touch operation: Yes |
| Mounting type | Wall-mounting bracket with mounting disk, 2x M3 screw, or adhesive pads |
| Mounting position | Horizontal |
| Front mounting | Yes; optimized for PRO Extension Unit 22.5 mm opening (from HS01) |
| Wall mounting/direct mounting | Yes; using approx. 60 cm retaining cord |
| Front protection | IP65 (depending on mounting) |

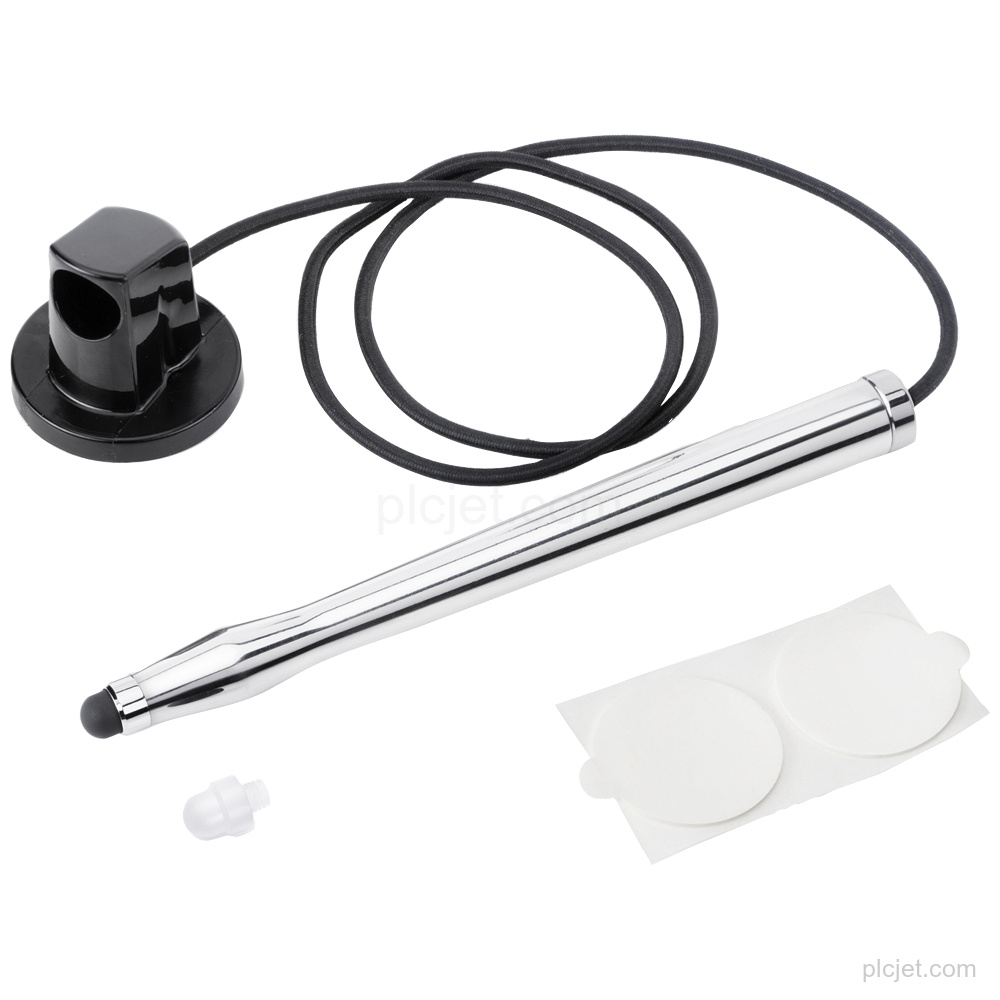

| Scope of supply | 1 touch pen with cap resistive/capacitive, 1 resistive cap, 1 holding cord, 1 wall holder |
| Product lifecycle | Active Product |
Key Features
Supports resistive and capacitive touch screens and includes a V2A pen.
Scope of supply: 1 touch pen with cap resistive/capacitive, 1 resistive cap in the touch pen, 1 holding cord, and 1 wall holder.
The wall-mounting bracket can be mounted with a mounting disk, 2x M3 screw, or adhesive pads.
Horizontal mounting; wall mounting or direct mounting is possible using an approx. 60 cm retaining cord.
Front mounting is also optimized for PRO Extension Unit 22.5 mm opening (from HS01).
Front protection: IP65 (depending on mounting). Packaging dimensions: 15.10 x 9.50 x 4.50 cm; net weight: 0.177 kg.
Frequently Asked Questions
What is the exact product type of 6AV6881-0AV22-0AA0?
It is a universal touch pen system for resistive and capacitive touch screens, including a support.
What is included in the configuration?
It includes 1 touch pen with cap resistive/capacitive, 1 resistive cap in the touch pen, 1 holding cord, and 1 wall holder.
How can the wall-mounting bracket be installed?
It can be mounted with a mounting disk, 2x M3 screw, or adhesive pads.
What should be provided for a project quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
