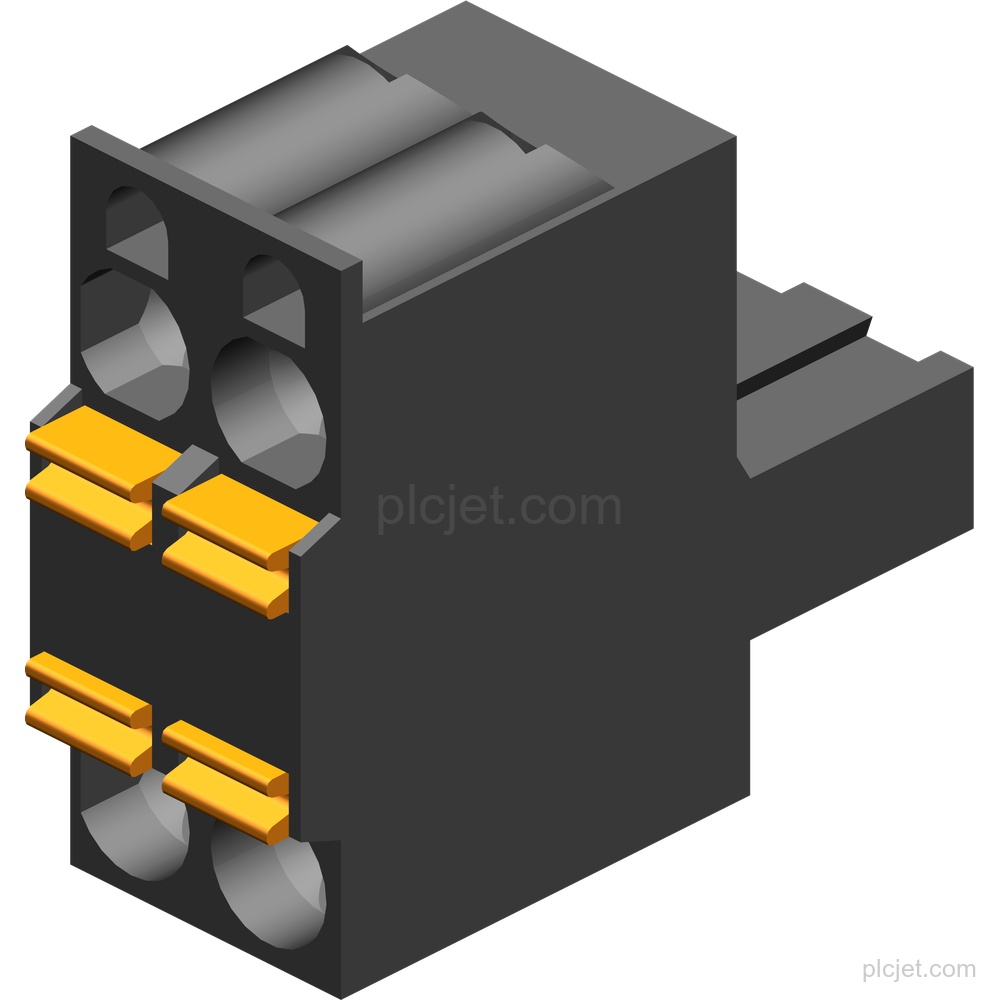

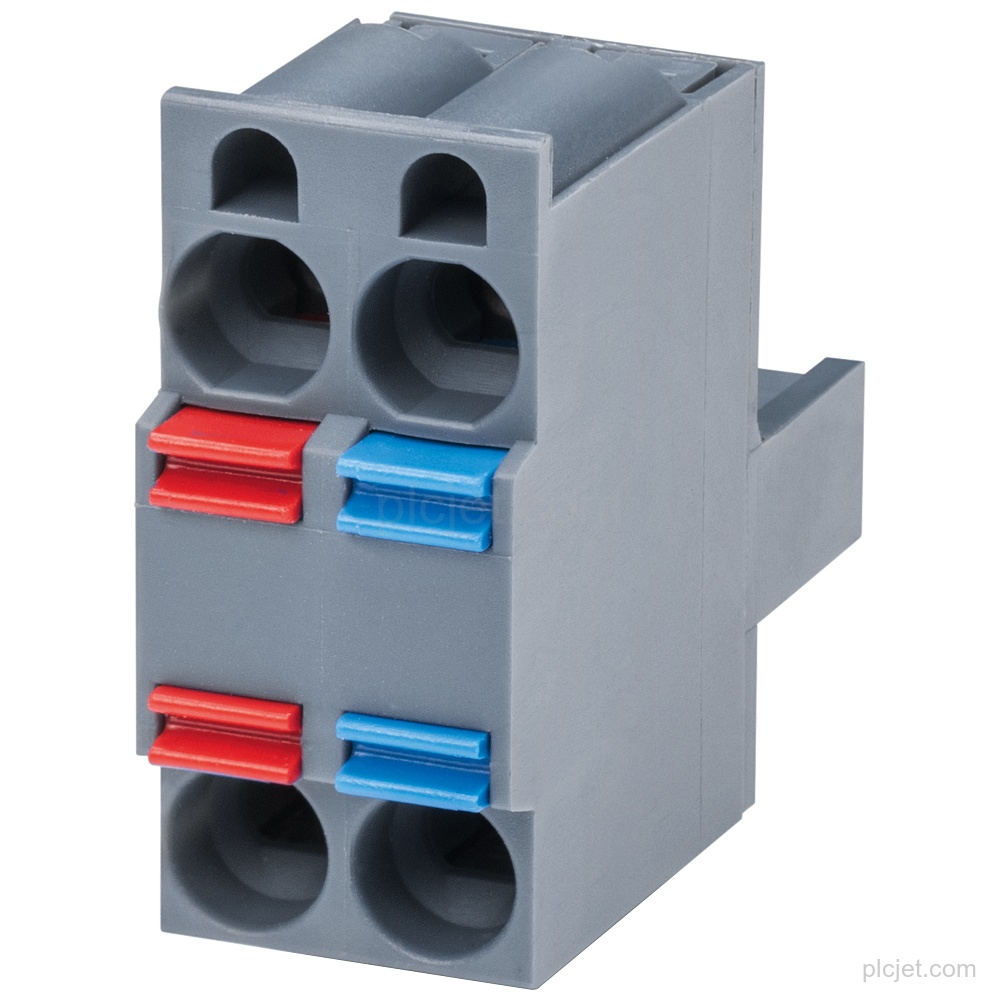

Product Overview
Technical Summary
| Product type | Connector, female, 2×2-pin |
|---|---|
| HMI-side interface | 2 pins; outgoing side jumpered internally, color-coded |
| Device-side interface | 4 pins; female, spring-loaded terminals 0.75 mm2 |
| Rated supply voltage | 24 V DC |
| Mounting | Wall mounting/direct mounting; can be plugged into SIMATIC HMI device |
| Scope of supply | 10 plugs |
| Product lifecycle | Active Product |
Key Features
Female connector, 2×2-pin.
2 pins; outgoing side jumpered internally and color-coded.
4 pins with female, spring-loaded terminals 0.75 mm2.
24 V rated DC.
Wall mounting/direct mounting; can be plugged into SIMATIC HMI device.
10 plugs.
Frequently Asked Questions
What is the exact product type of 6ES7193-4JB00-0AA0?
It is a connector, female, 2×2-pin.
How is the HMI-side interface configured?
It has 2 pins; the outgoing side is jumpered internally and color-coded.
What mounting is supported?
Wall mounting/direct mounting is supported, and the connector can be plugged into SIMATIC HMI device.
How many plugs are supplied?
The scope of supply is 10 plugs.
What quantity, destination, schedule, and additional BOM lines should be included in a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM lines.
