Product Overview
Technical Summary
| Product type | TP277 |
|---|---|
| Display | TFT, 5.7 in, 256 colors |
| Display resolution | 320 pixel horizontal x 240 pixel vertical |
| Touch operation | Analog, resistive touch screen |
| Processor | RISC 32 bit |
| User-data memory | 4 Mbyte |
| Main memory capacity, max. | 64 Mbyte |
| Interfaces | 1x RS 422, 1x RS 485, 1x Ethernet (RJ45), 1 USB interface |
| Memory card slot | 1x Multimedia Card slot, up to 128 MB |
| Protocols | PROFINET IO, PROFIBUS, TCP/IP, MODBUS |

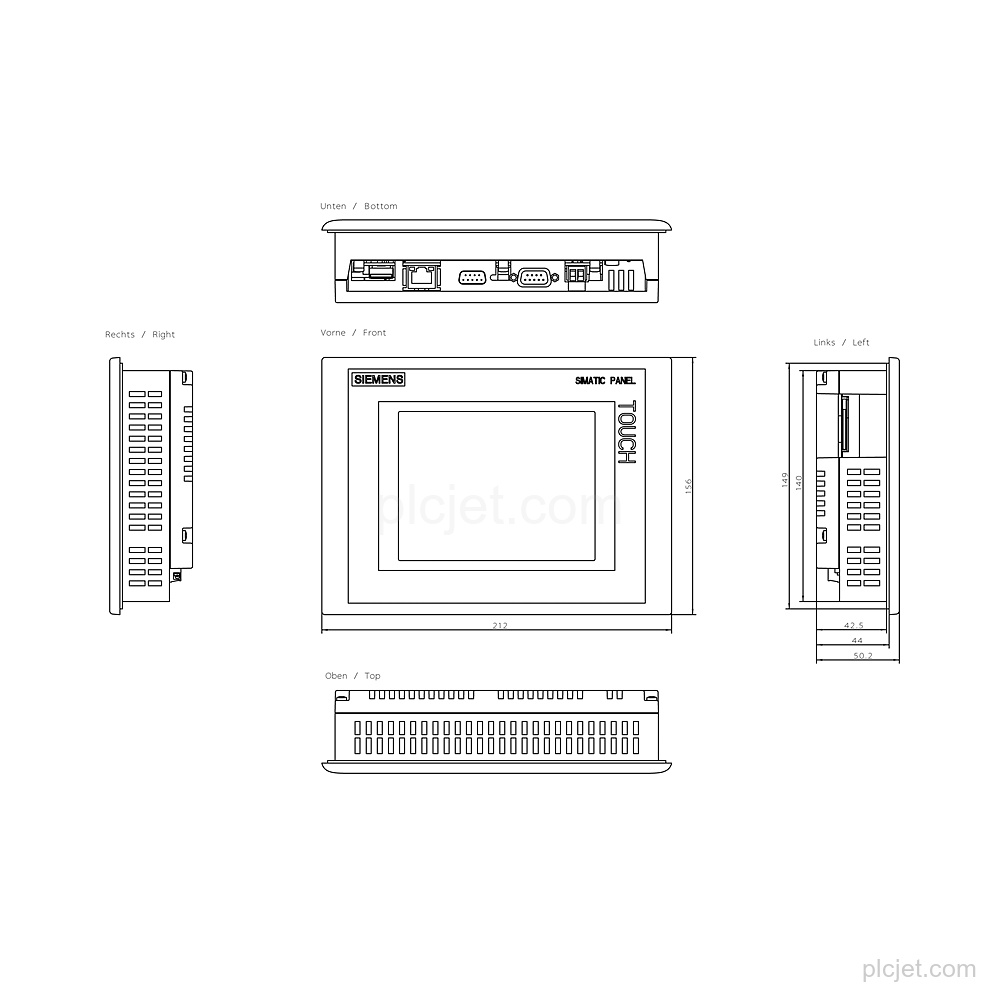

| Mounting position | Vertical |
| Protection | IP65 front, IP20 rear; NEMA 4x front when installed |

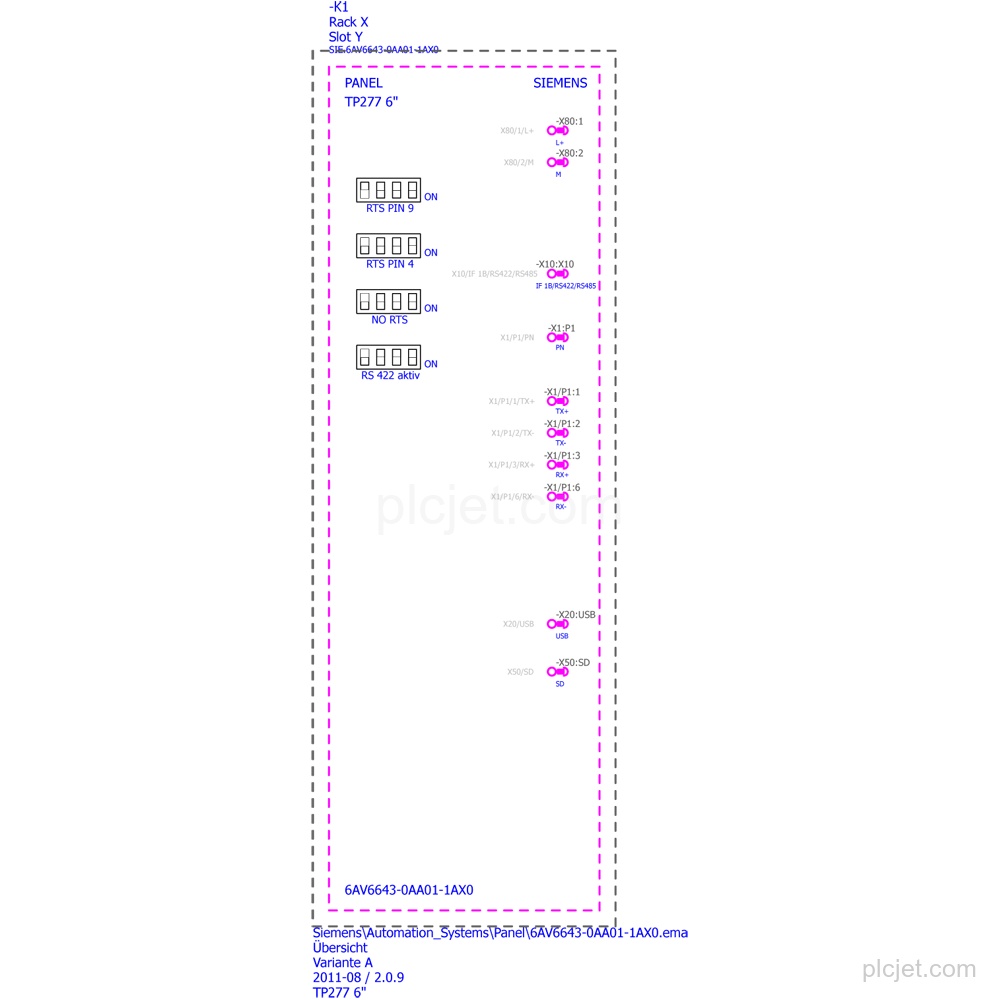

Key Features
The display has a 5.7 in screen diagonal, 256 colors and 320 pixel horizontal by 240 pixel vertical resolution.
The panel has an analog, resistive touch screen, plus numeric, alphanumeric and hexadecimal keyboards.
Interfaces include 1x RS 422, 1x RS 485 and 1x Ethernet (RJ45), with 1 USB interface and 1 Multimedia Card slot up to 128 MB.
The panel supports PROFINET IO, PROFIBUS, TCP/IP and MODBUS.
It has a RISC 32 bit processor, Flash / RAM memory, 4 Mbyte available for user data and 64 Mbyte maximum main-memory capacity.
Mounting position is vertical. Protection is IP65 at the front, IP20 at the rear and NEMA 4x at the front when installed.
Frequently Asked Questions
What exact product is Siemens 6AV6643-0AA01-1AX0?
It is a SIMATIC TP 277 touch panel with a 5.7 in TFT color display.
What interfaces are available on this TP277 panel?
It has 1x RS 422, 1x RS 485, 1x Ethernet (RJ45) and 1 USB interface, plus 1 Multimedia Card slot up to 128 MB.
How is the panel mounted and protected?
The mounting position is vertical. Protection is IP65 at the front, IP20 at the rear and NEMA 4x at the front when installed.
