Product Overview
Technical Summary

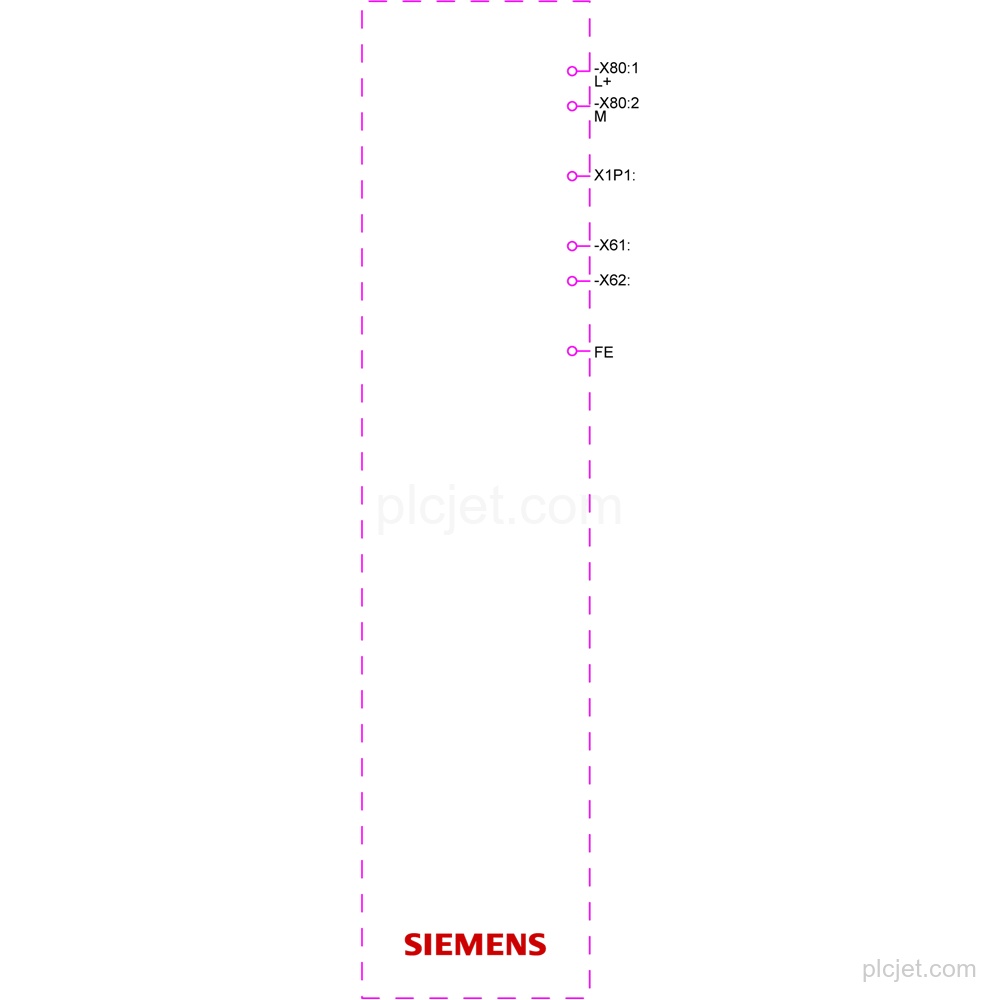

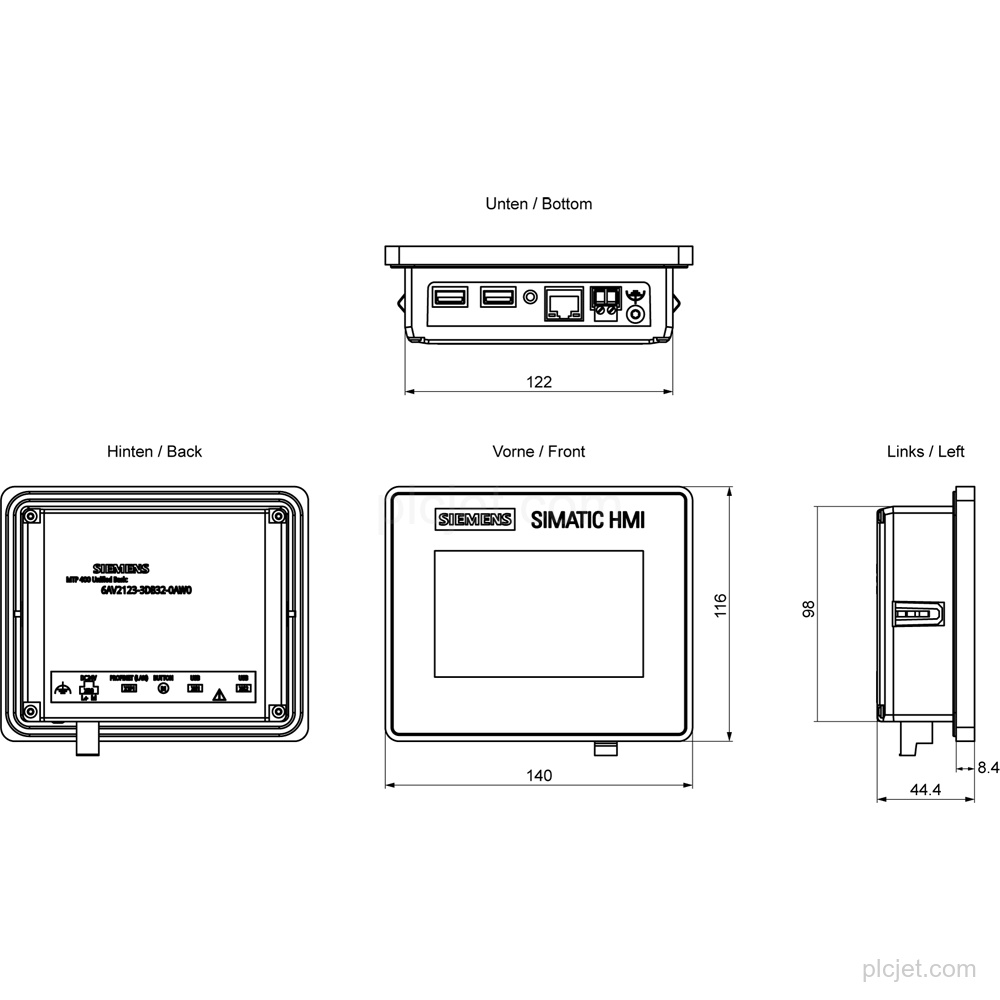

| Product type | MTP400 Unified Basic |
|---|---|
| Display | 4.3 in TFT, 800 pixel × 480 pixel, 16 777 216 colors |
| Touch operation | Touch screen and multi-touch screen |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| Industrial Ethernet | 1 Gigabit Ethernet (IE/PN), RJ45; PROFINET |
| USB | 2 USB 2.0 interfaces |
| Mounting | Vertical; portrait and landscape formats possible |
| Inclination | 35° maximum permissible angle without external ventilation |
| Protection | IP65 front; IP20 rear |
| Configuration | WinCC Unified Basic V18 Update 3 or later |
Key Features
4.3 in TFT widescreen display with 800 pixel horizontal resolution, 480 pixel vertical resolution, 16 777 216 colors, touch operation and multi-touch screen.
1 Gigabit Ethernet (IE/PN) interface with RJ45 connection; PROFINET, TCP/IP, DHCP, SNMP, DCP and LLDP are supported.
24 V DC rated supply with a permissible range from 19.2 V to 28.8 V.
2 USB 2.0 interfaces; RS 485, RS 422, parallel interfaces and SD card slots: 0.
Vertical mounting; portrait and landscape formats are possible. Maximum permissible angle of inclination without external ventilation: 35°. Protection: IP65 at the front and IP20 at the rear.
Configurable as of WinCC Unified Basic V18 Update 3; contains open-source software provided free of charge.
Frequently Asked Questions
What is the exact product designation?
The exact product is Siemens SIMATIC HMI MTP400 Unified Basic Panel, order number 6AV2123-3DB32-0AW0.
What display does this HMI panel have?
It has a 4.3 in TFT touch display with 800 pixel × 480 pixel resolution and 16 777 216 colors.
Which interfaces and protocols are included?
It has 1 Gigabit Ethernet (IE/PN) RJ45 interface and 2 USB 2.0 interfaces. PROFINET, TCP/IP, DHCP, SNMP, DCP and LLDP are supported; protocol for PROFINET IO is not supported.
What supply voltage is required?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
