Product Overview
Applications
Connects SIMATIC S7-1500 to Industrial Ethernet.
Technical Summary
| Product model | 6GK7543-1AX00-0XE0 |
|---|---|
| Product type | CP 1543-1 |
| Interface | 1x RJ45 port |
| Transfer rate | 10 … 1000 Mbit/s |
| Supply | 15 V DC from backplane bus |
| Typical consumed current | 0.35 A |
| Power loss | 5.3 W |
| Mounting | S7-1500 rail mounting |
| Protection class | IP20 |
| Configuration software | STEP 7 Professional V14 (TIA Portal) or higher |
Key Features
Connects SIMATIC S7-1500 to Industrial Ethernet with TCP/IP, ISO, UDP and S7 communication.
Has 1x RJ45 port with a transfer rate of 10 … 1000 Mbit/s.
Uses 15 V DC from the backplane bus; typical consumed current is 0.35 A and power loss is 5.3 W.
Provides stateful inspection firewall, IPSec VPN, IEEE 802.1X (radius), SNMPv1/v3 and NTP support.

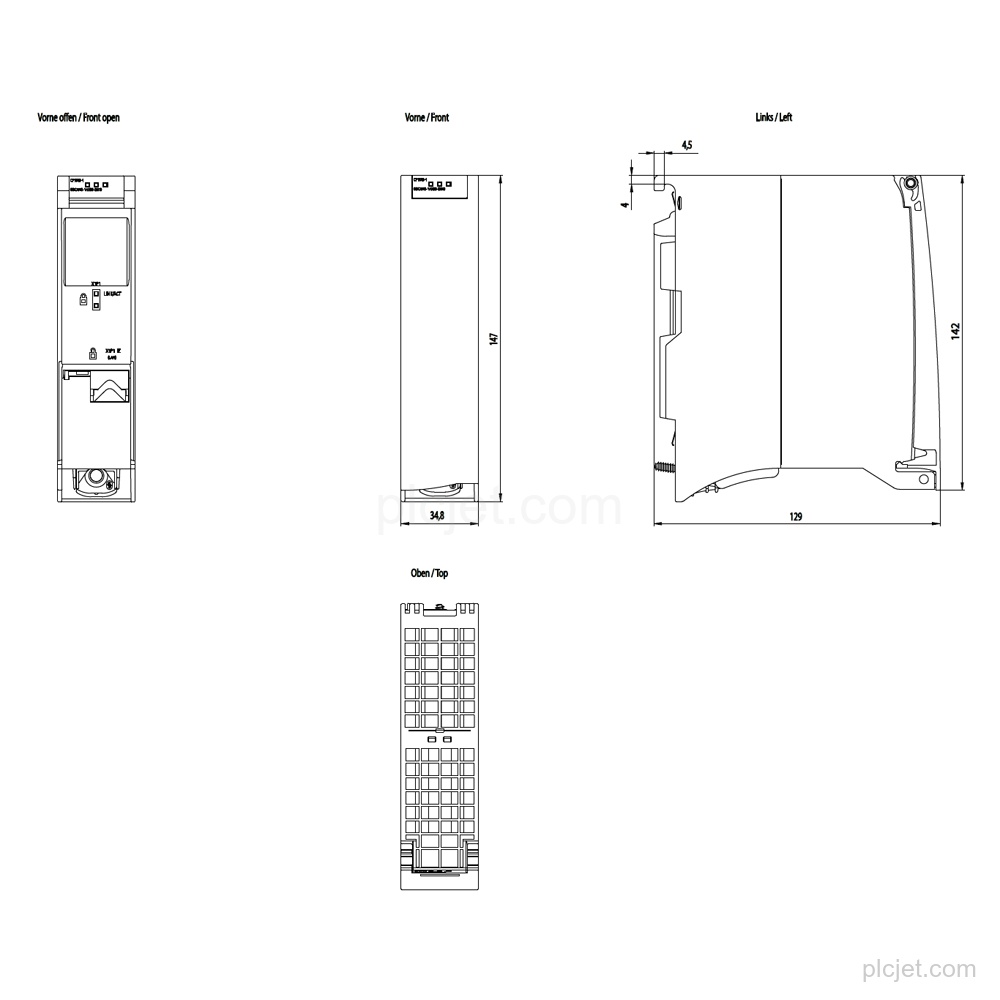

Compact module S7-1500 single width; 35 mm wide, 142 mm high and 129 mm deep, with S7-1500 rail mounting.
Product lifecycle: Start of final year of support.
Frequently Asked Questions
What is the exact product type of Siemens 6GK7543-1AX00-0XE0?
It is a CP 1543-1 communications processor with SIMATIC NET product brand name.
Which interface does this communications processor have?
It has 1x RJ45 port with a transfer rate of 10 … 1000 Mbit/s.
What supply does the module use?
It uses 15 V DC from the backplane bus, with a typical consumed current of 0.35 A.
How is the module mounted?
It has S7-1500 rail mounting and a compact module S7-1500 single-width format.
Can this line item be included in a project quotation?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines for quotation review.
