Product Overview
Applications
Connects an SIMATIC S7-ET 200SP to Industrial Ethernet.
Provides open communication using TCP/IP, ISO-on-TCP and UDP.
Technical Summary
| Product | CP 1543SP-1 |
|---|---|
| Industrial Ethernet interfaces | 1 |
| Transfer rate | 10 … 100 Mbit/s |
| Electrical connections | 2 via ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch |

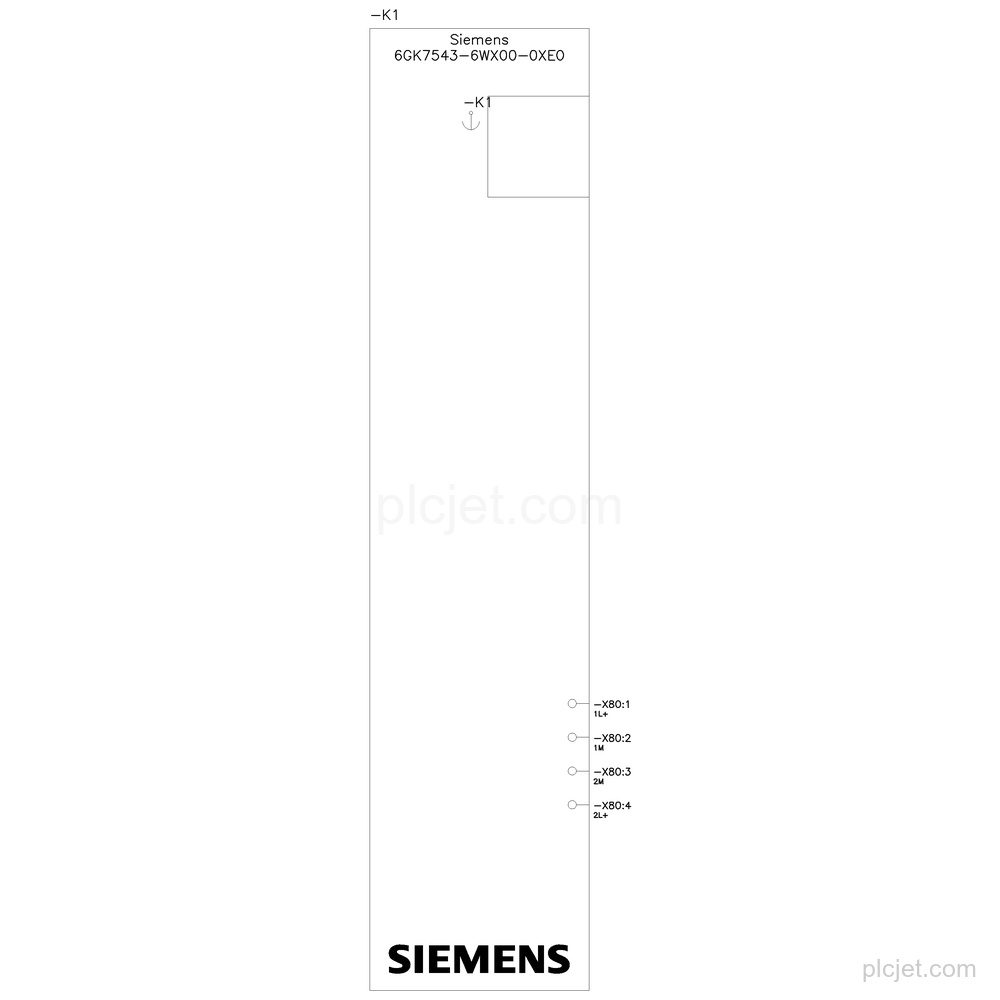

| Supply voltage | DC 24 V; 19.2 … 28.8 V |
| Power loss | 6 W |
| Open communication connections | 32 maximum by means of T blocks |
| VPN connections | 4 maximum |

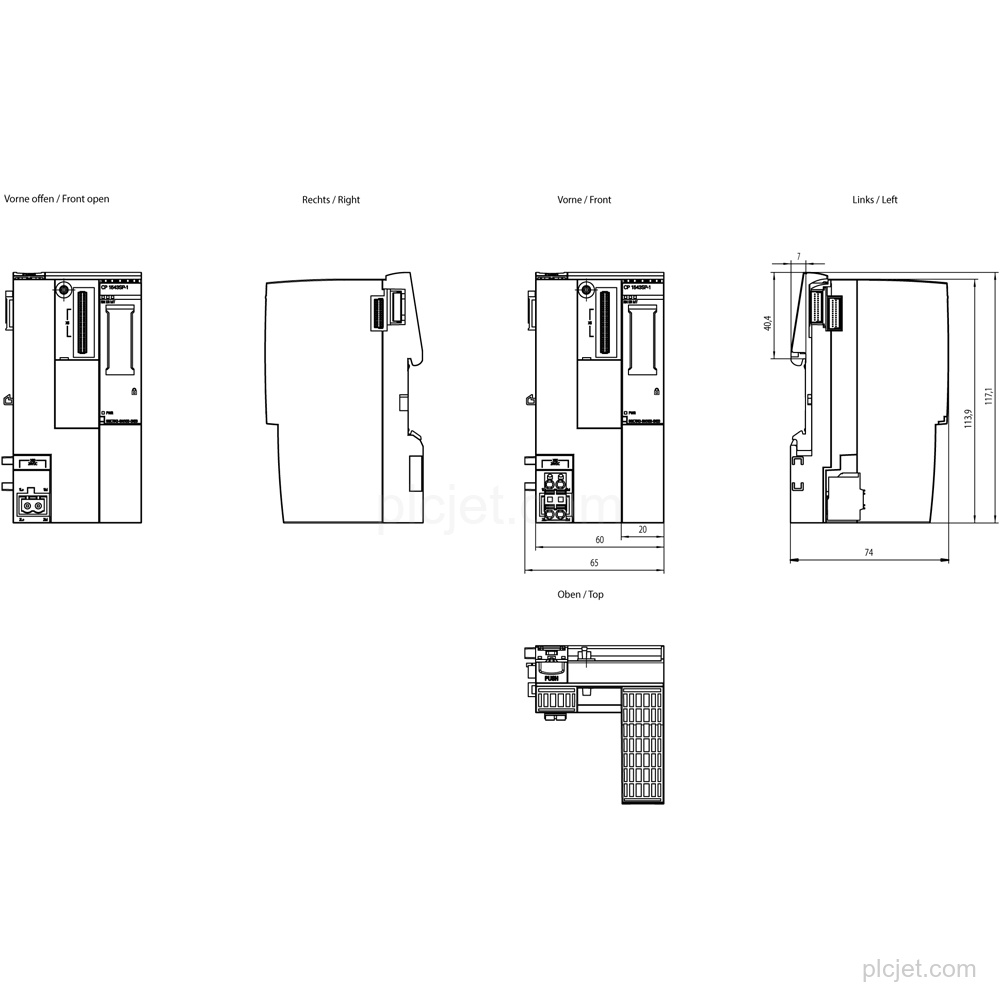

| Mounting | 35 mm DIN-rail mounting |
| Protection class | IP20 |
| Configuration software | STEP 7 Professional V14 (TIA Portal) or higher |
Key Features
Provides 1 Industrial Ethernet interface with a transfer rate of 10 … 100 Mbit/s and 2 electrical connections via an ET 200SP bus adapter (RJ45, FC, SCRJ), integrated switch.
Supports TCP/IP, ISO-on-TCP, UDP, PG/OP, S7 routing, IP broadcast/multicast, SNMP v1/v3, DHCP, secure email, IPv4/IPv6 and NTP.
Includes a stateful-inspection firewall and VPN connection with IPsec, SINEMA RC, up to 4 connections, AES-256, AES-192, AES-128, 3DES-168 and DES-56 encryption.
Supports up to 32 connections for open communication by means of T blocks, with a maximum data volume of 65536 byte per ISO on TCP connection.
Uses DC 24 V supply, with a supply-voltage range of 19.2 … 28.8 V and 6 W power loss. It supports 35 mm DIN-rail mounting.
Frequently Asked Questions
What is Siemens 6GK7543-6WX00-0XE0?

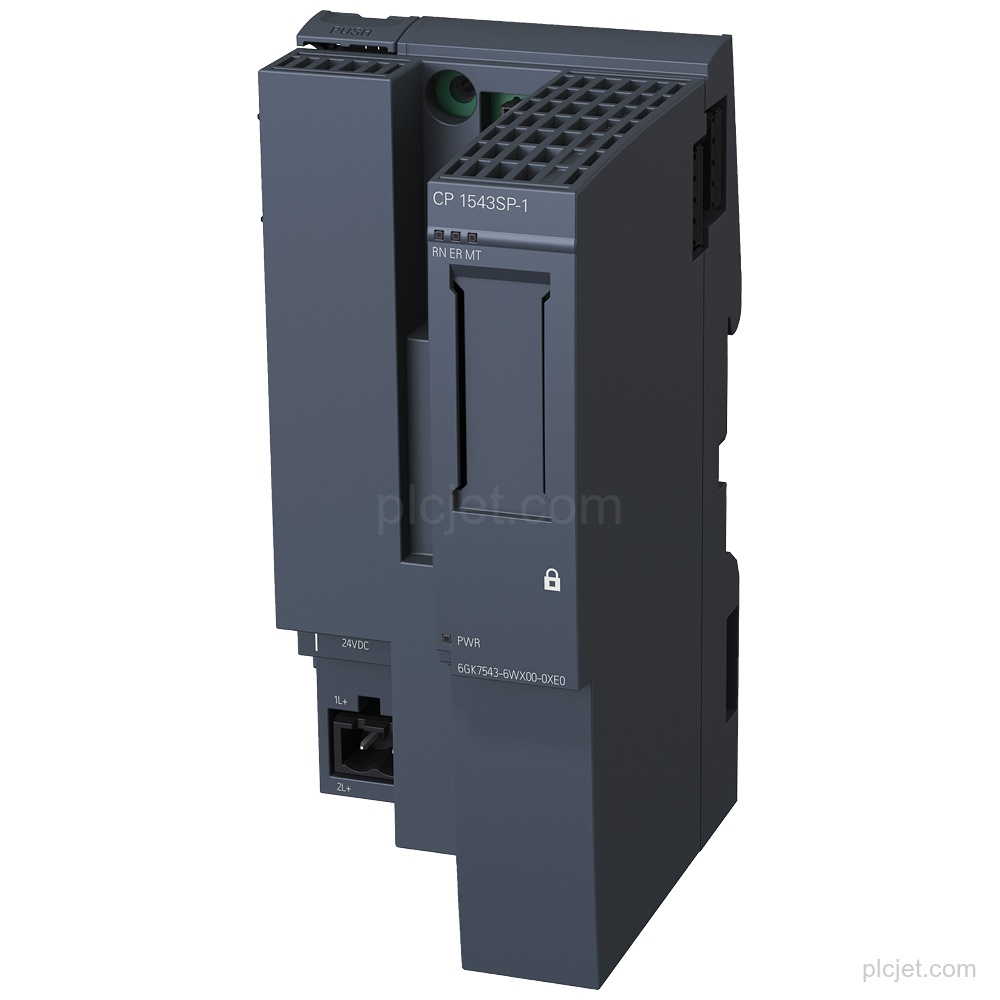

It is a CP 1543SP-1 communications processor for connecting an SIMATIC S7-ET 200SP to Industrial Ethernet.
What supply does the CP 1543SP-1 use?
The supply is DC 24 V, with a supply-voltage range of 19.2 … 28.8 V and 6 W power loss.
How is Siemens 6GK7543-6WX00-0XE0 mounted?
It supports 35 mm DIN-rail mounting.
What is required for the electrical connection?
An ET 200SP bus adapter is required; the connection can use RJ45, FC or SCRJ, with an integrated switch.
