Product Overview
Technical Summary
| Input supply | 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz |
|---|---|
| Low-overload rated power | 0.55 kW | 0.75 hp |
| High-overload rated power | 0.37 kW | 0.50 hp |
| Low-overload rated current | 1.70 A |
| High-overload rated current | 1.30 A |
| Maximum output current | 2.60 A |
| Output frequency for vector control | 0 … 240 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Communication | USS/MODBUS RTU |
| Degree of protection | IP20 / UL open type |
| Frame size | FSAA |
Key Features
Rated power: 0.55 kW | 0.75 hp at low overload; rated current: 1.70 A.
Rated power: 0.37 kW | 0.50 hp at high overload; rated current: 1.30 A.
Input: 3 AC, 380 … 480 V +10 % -20 %, 47 … 63 Hz.
Standard digital inputs: 6; fail-safe digital inputs: 1; digital outputs: 1 relay changeover contact and 1 transistor; analog input: 1 differential; analog output: 1 non-isolated.
Communication: USS/MODBUS RTU. Degree of protection: IP20 / UL open type; integrated filter: Class A.
Frame size: FSAA. Dimensions: 73 mm width × 155 mm depth. Net weight: 1.40 kg (3.09 lb).
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is Siemens 6SL3210-1KE11-8AB2, a SINAMICS G120C converter.
What input supply does this converter use?
Input supply is 3 AC, 380 … 480 V +10 % -20 % at 47 … 63 Hz.
What control and feedback functions are supported?
It supports V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, and sensorless vector control. Vector control, with sensor, encoderless torque control, and torque control, with encoder are not supported.

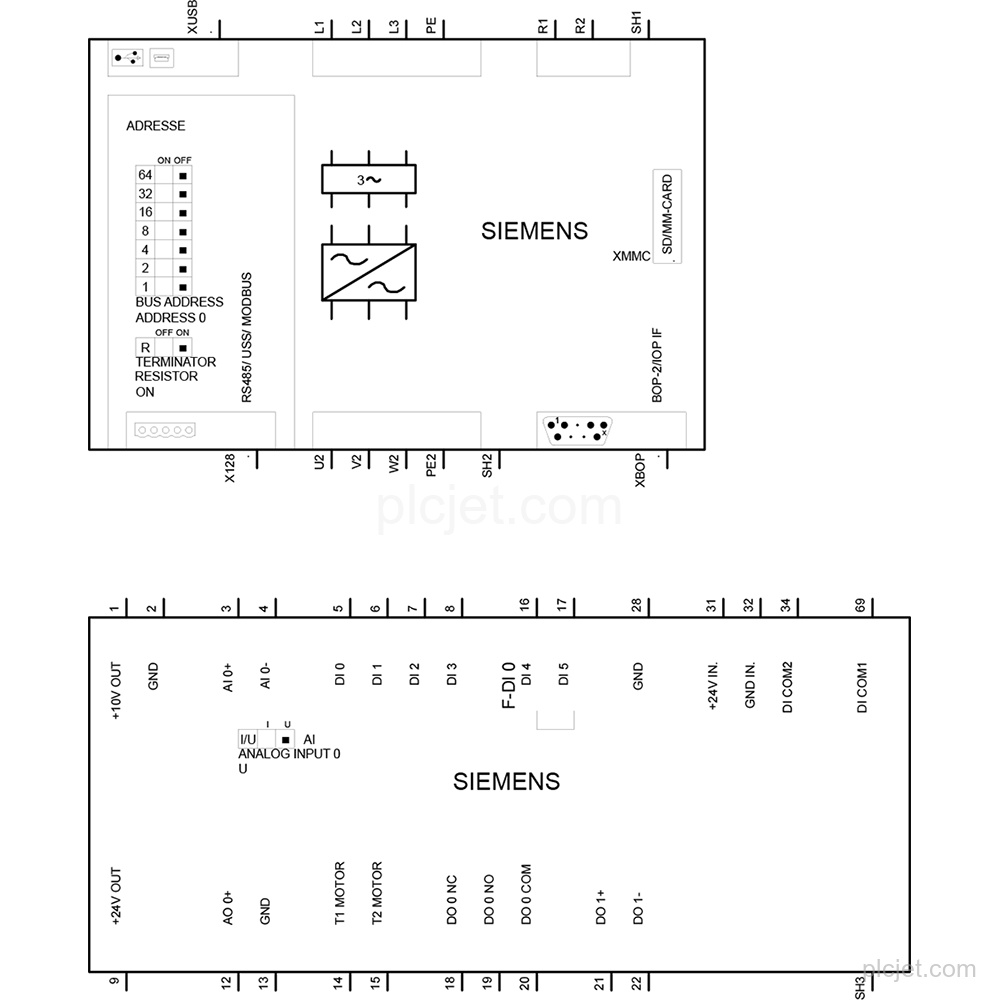

Which communication and I/O interfaces are provided?
Communication is USS/MODBUS RTU. The interface has 6 standard digital inputs, 1 fail-safe digital input, 1 relay changeover contact, 1 transistor output, 1 differential analog input, and 1 non-isolated analog output.
What project details should accompany a quotation request?
Provide the requested quantity, destination, schedule context, and any additional BOM line items for quotation review.
