Product Overview
Applications
Connects to a SCADA system by IEC 60870-5 104, DNP3, Telecontrol Server Basic and ST7 capable control center.
Supports permanent and demand-oriented connections for communication with a control center.
Technical Summary
| Product type | CP 1542SP-1 IRC |
|---|---|
| Industrial Ethernet transfer rate | 10 … 100 Mbit/s |
| Industrial Ethernet interfaces | 1 |
| Open communication connections, maximum | 32 |
| S7 communication connections, maximum | 16 |
| Supply voltage | 24 V; 19.2 … 28.8 V |
| Mounting | 35 mm DIN-rail mounting |
| Protection class | IP20 |
Key Features
1 Industrial Ethernet interface with 10 … 100 Mbit/s transfer rate and 2 electrical connections via an ET 200SP bus adapter (RJ45, FC, SCRJ), with integrated switch.
Supports up to 32 connections for open communication by means of T blocks, with a maximum data volume of 65536 byte per ISO on TCP connection.
Supports DNP3, IEC 60870-5 and SINAUT ST7 protocol communication, with data buffering for TCSB 64000 events, SINAUT ST7 32000 telegrams, DNP3 100000 events and IEC 60870-5 100000 events.
DC supply with 24 V nominal voltage and a 19.2 … 28.8 V supply range; power loss is 6 W. The unit supports 35 mm DIN-rail mounting.
Requires STEP 7 Professional V14 (TIA Portal) or higher.
Frequently Asked Questions
What is the exact product type of 6GK7542-6VX00-0XE0?

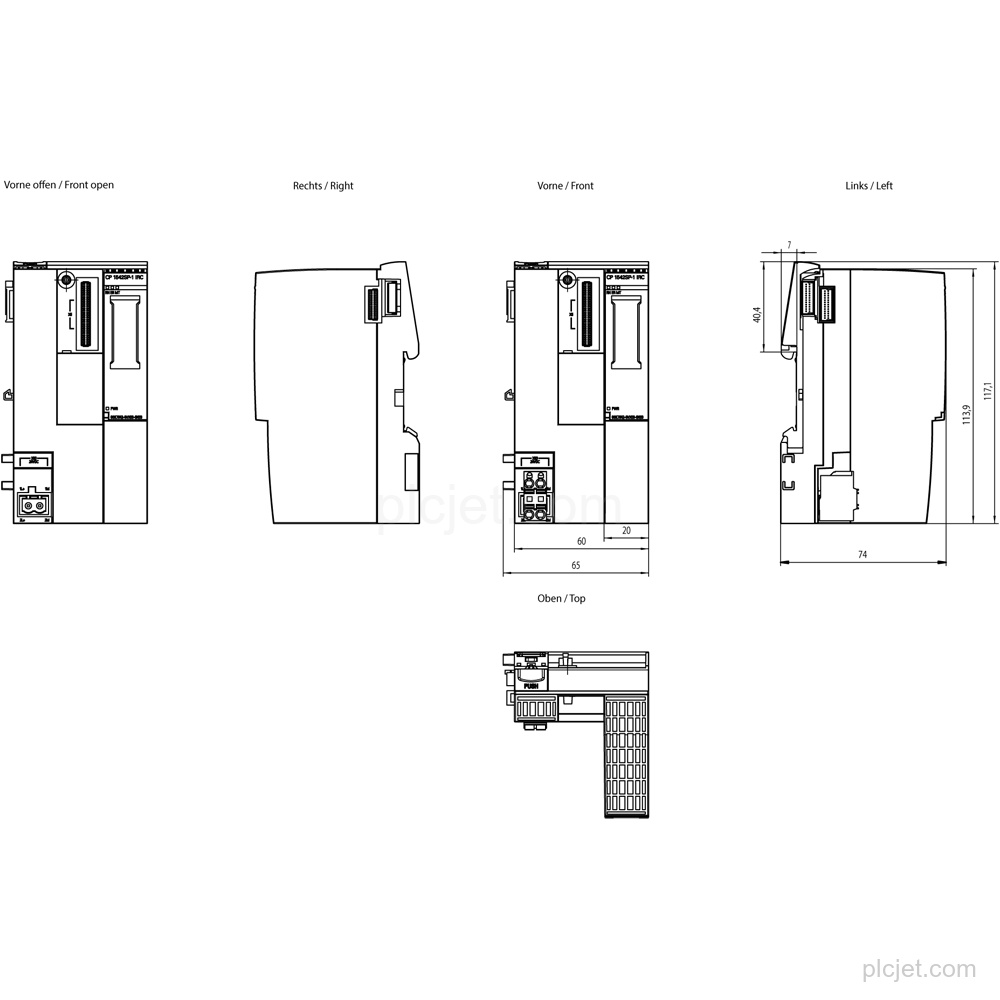

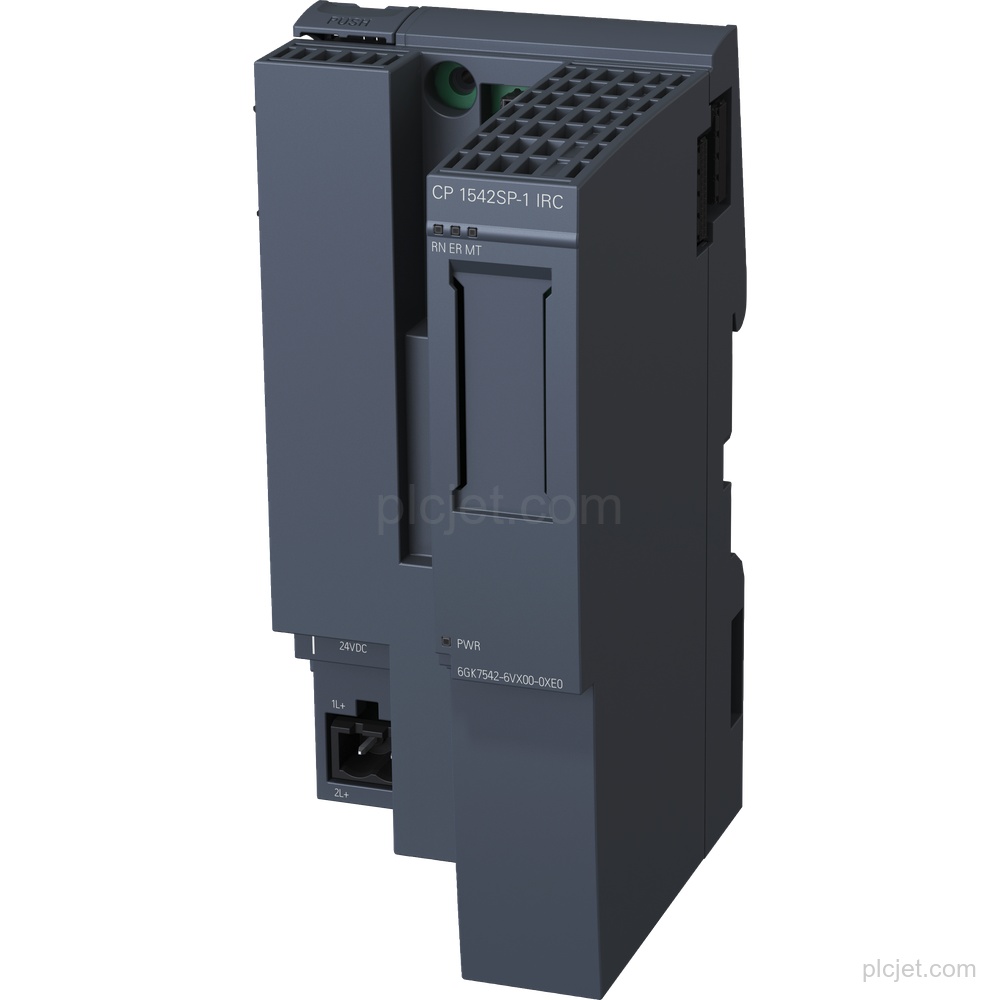

It is the CP 1542SP-1 IRC communication processor with SIMATIC NET product brand name.
How many open communication connections does it support?
It supports up to 32 open communication connections by means of T blocks.
What should be specified when requesting this line item?
Specify the exact order number, requested quantity, destination, schedule context and any additional BOM lines.
