Product Overview
Applications
Connects PROFINET with CAN or CANopen networks through the PN/CAN Link Gateway.
Technical Summary
| Product type | PN/CAN Link |
|---|---|
| Gateway function | PROFINET to CAN or CANopen networks |
| Supply voltage | 24 V DC; permissible range 20.4 V to 28.8 V |
| PROFINET transmission rate, max. | 100 Mbit/s |
| PROFINET RJ45 ports | 2 |
| CAN connection | 9-pin sub D socket |
| CAN transmission rate | 50 kbit/s to 1 000 kbit/s |
| CAN maximum number of devices | 126 |

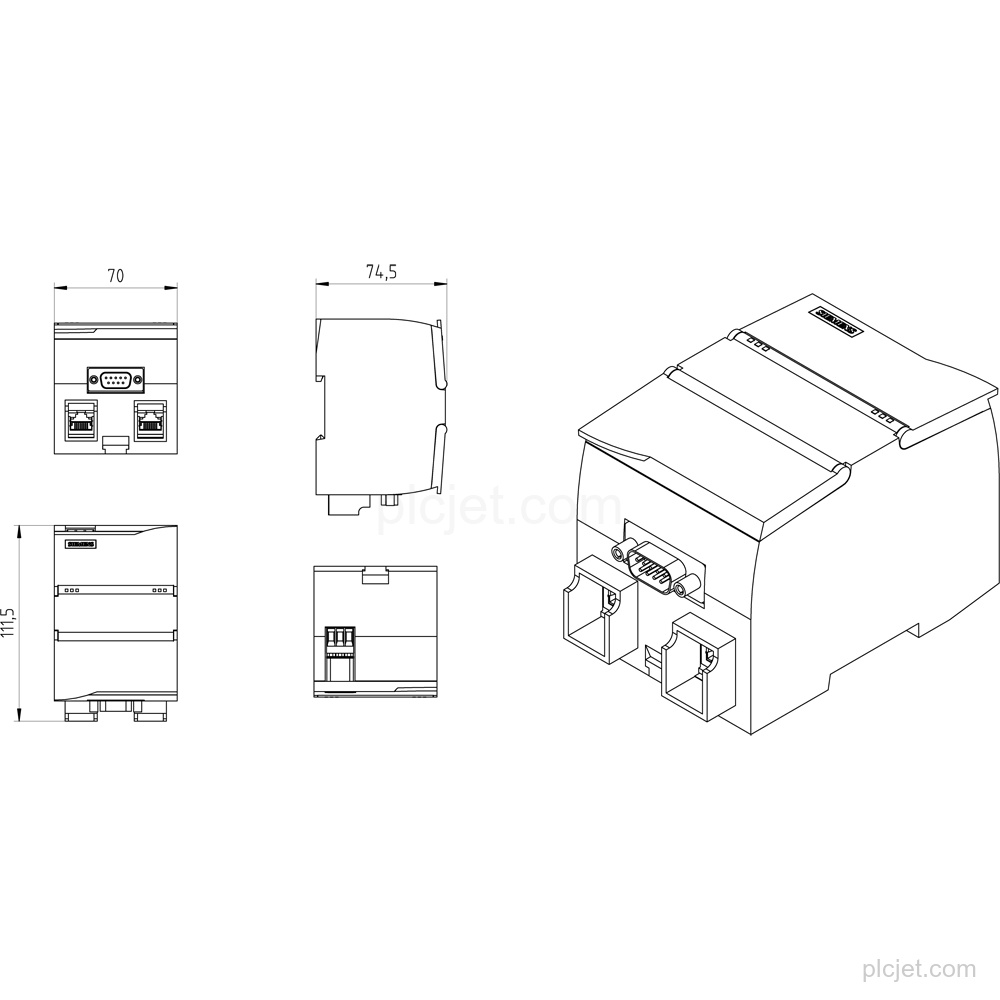

| Mounting | DIN rail, wall mounting, portrait mounting |
| Firmware version | V2.4.0 |
| Protection | IP20 |
Key Features
Connects PROFINET to CAN or CANopen networks and supports CAN 2.0A/B.
PROFINET IO device and Open IE communication are supported; the maximum transmission rate is 100 Mbit/s.
One isolated CAN interface according to CiA 303-1 uses a 9-pin sub D socket and supports 50 kbit/s to 1 000 kbit/s.
Rated supply is 24 V DC, with a permissible range of 20.4 V to 28.8 V and reverse polarity, overvoltage, and short-circuit protection.
Supports DIN rail, wall mounting, and portrait mounting; rail mounting and control cabinet installation are supported.
Firmware version V2.4.0 supports firmware updates; configuration is possible with STEP 7 TIA Portal from version STEP 7 V14 or higher.
Frequently Asked Questions
What is the exact product type of Siemens 6BK1620-0AA00-0AA0?
It is a PN/CAN Link Gateway for connecting PROFINET to CAN or CANopen networks.
What supply voltage does the gateway use?
It uses 24 V DC, with a permissible range of 20.4 V to 28.8 V.
What CAN connection is provided?
It provides one isolated CAN interface with a 9-pin sub D socket and a transmission rate from 50 kbit/s to 1 000 kbit/s.
How is the gateway mounted?
It supports DIN rail, wall mounting, and portrait mounting, as well as control cabinet installation.
