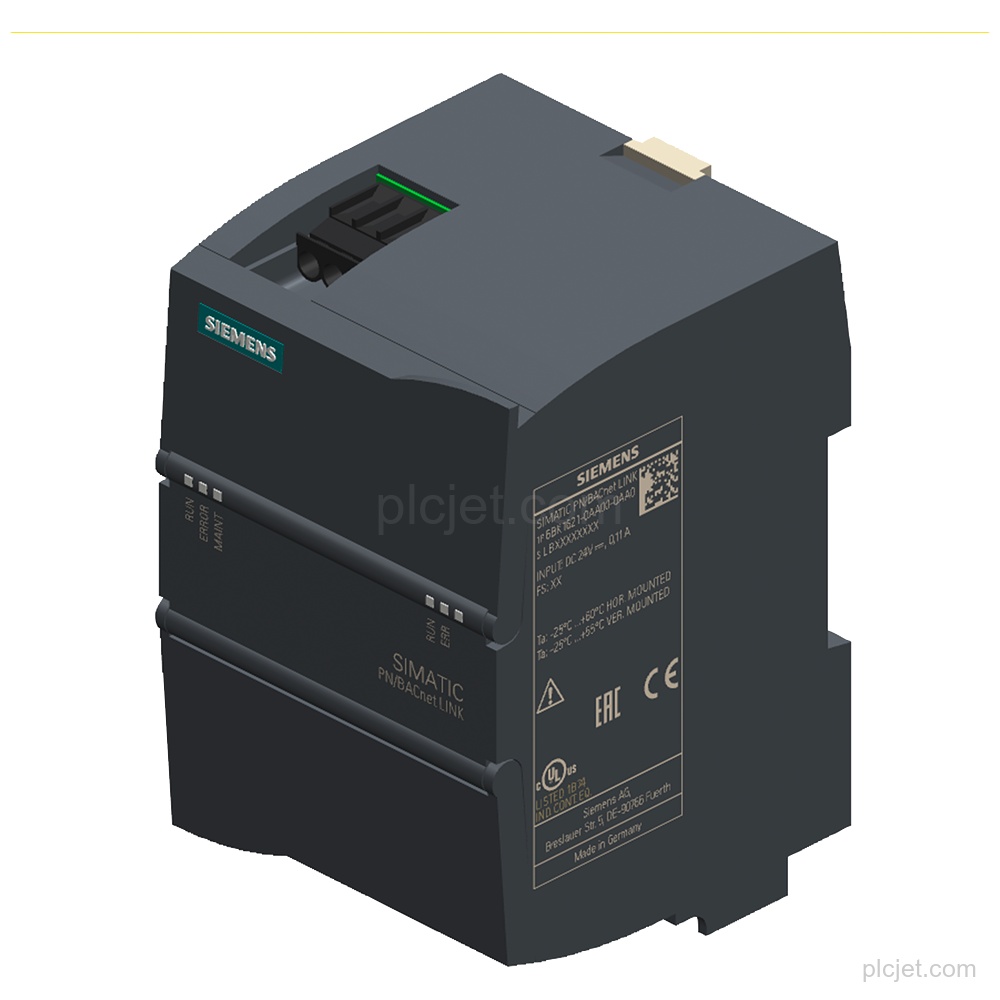

Product Overview
Applications
Used as a coupling module between PROFINET and BACnet/IP Fieldbus.
Technical Summary

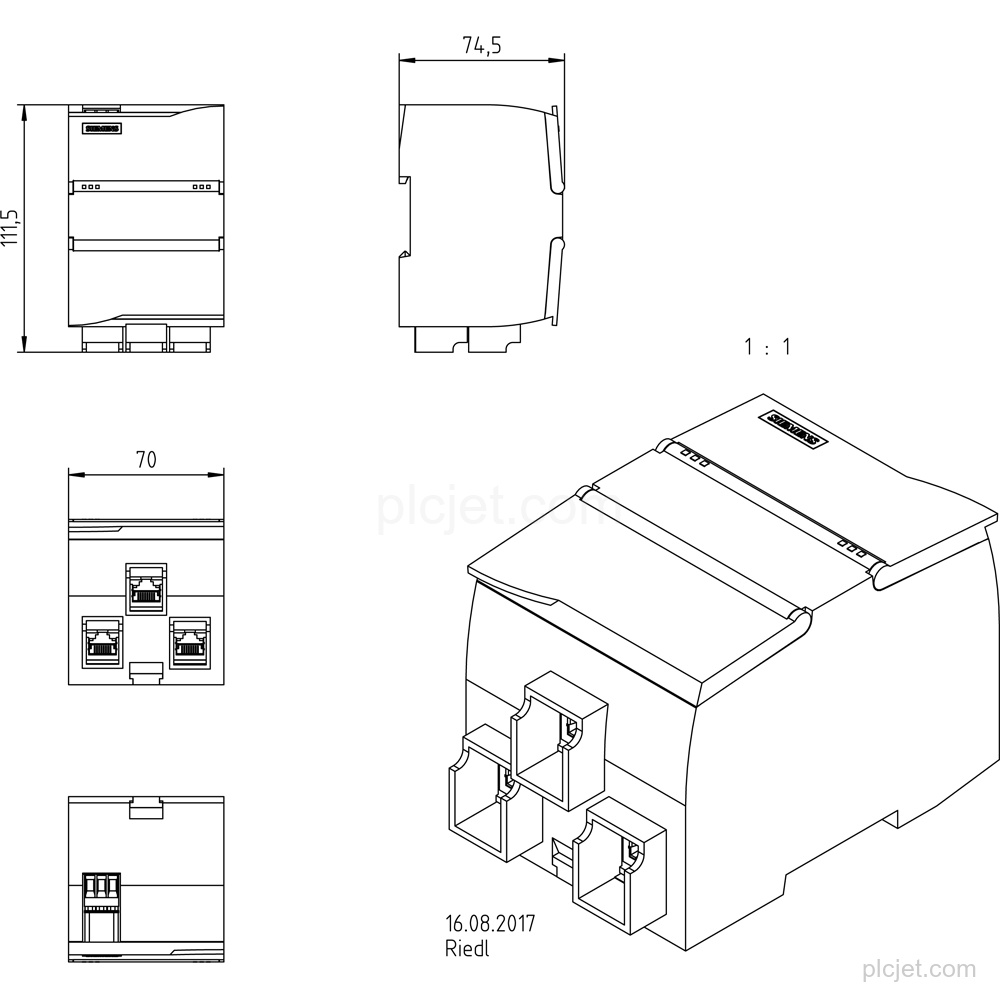

| Product type | PN/BACnet Link |
|---|---|
| Supply voltage | 24 V DC; permissible range: 20.4 V to 28.8 V DC |
| PROFINET ports | 2 RJ45 ports; 2 FC (FastConnect) connections |
| PROFINET transmission rate, max. | 100 Mbit/s |
| BACnet device profile | B-GW |
| BACnet objects/object references | 1 000 |
| BACnet subscription services | 1 000 |
| Mounting | DIN rail, wall mounting, portrait mounting |
| Protection degree | IP20 |
| STEP 7 TIA Portal | Configurable/integrated from version V14 SP1 |
| PROFINET GSD version | GSDML V2.3.x |
Key Features
Couples PROFINET to BACnet/IP Fieldbus with Device-Profile B-GW.
Rated supply value: 24 V DC; permissible range: 20.4 V to 28.8 V DC.
Has 2 RJ45 ports, 2 FC (FastConnect) connections and an integrated switch; maximum transmission rate: 100 Mbit/s.
Supports 1 000 BACnet objects/object references and 1 000 subscription services.
Supports DIN rail, wall mounting and portrait mounting. Recommended mounting position: horizontal. Protection degree: IP20.
STEP 7 TIA Portal configurable/integrated from version V14 SP1; GSDML V2.3.x; firmware update possible: Yes.
Frequently Asked Questions
What is the exact product type?
The product type designation is PN/BACnet Link, order number 6BK1621-0AA00-0AA0.
What supply voltage does the module use?
Supply voltage is DC, with a rated value of 24 V and a permissible range of 20.4 V to 28.8 V DC.
What interfaces and ports are provided?
It has 2 PROFINET RJ45 ports, 2 FC (FastConnect) connections and 1 BACnet/IP RJ45 port.
What mounting options are supported?
Mounting options are DIN rail, wall mounting and portrait mounting. The recommended mounting position is horizontal.
