Product Overview
Technical Summary
| Product type | SIMATIC DP spare part for ET 200S |
|---|---|
| Digital inputs | 2 |
| Input voltage | 24 V DC rated value |
| Input signal 0 | -30 to +5 V |
| Input signal 1 | +11 to +30V |
| Input delay | Parameterizable: 0.1 / 0.5 / 3 / 15 ms |
| Connectable encoder | 2-wire sensor |
| Diagnostics | Short-circuit detection and parameterizable hardware interrupt |
| Group error indication | SF red LED |
| Packing unit | 5 units per packing unit |
Key Features
The spare part has 2 digital inputs with a DC input voltage rated value of 24 V.
Input delay for standard inputs is parameterizable at 0.1 / 0.5 / 3 / 15 ms.
It supports 2-wire sensors with a permissible quiescent current of 1.5 mA maximum.
Diagnostics include short-circuit detection of outputs to ground, module by module, plus an SF red group-error LED and green digital-input status indicators per channel.
Supply voltage is 24 V DC from the power module. Reverse-polarity and electronic short-circuit protection are provided.

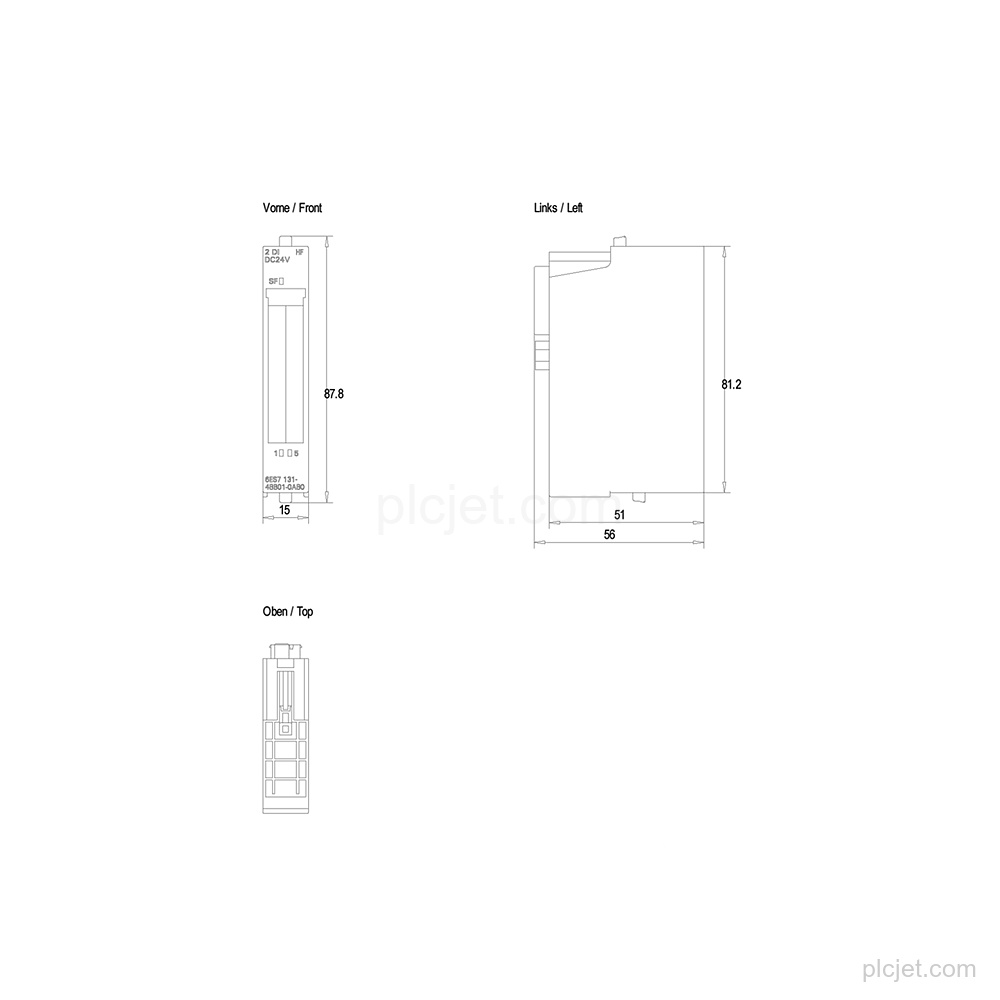

Width is 15 mm, height is 81 mm, depth is 52 mm, and approximate weight is 35 g.
Frequently Asked Questions
What is the exact configuration of 6ES7131-4BB01-0AB0?
It is a Siemens SIMATIC DP spare part for ET 200S with 2 digital inputs, 24 V DC input voltage, 15 mm width, parameterizable input delay, encoder short-circuit diagnostics and an SF group-error LED.
What input signal range does this module support?
For signal "0", the input voltage is -30 to +5 V. For signal "1", it is +11 to +30V.
Does the module support 2-wire sensors?
Yes. A 2-wire sensor is connectable, with a permissible quiescent current of 1.5 mA maximum.
What is included in the packing configuration?
The product description specifies 5 electronic modules per packing unit.
