Product Overview
Applications
The source identifies the module for maritime application and for use in hazardous locations.
Technical Summary
| Product type | SIMATIC DP electronic module for ET 200S |
|---|---|
| Digital inputs | 4 |
| Input voltage | 24 V DC rated value |
| Input signal 0 | -30 to +5 V |
| Input signal 1 | +11 to +30V |
| Encoder connection | 2-wire sensor; permissible quiescent current, max. 1.5 mA |
| Input delay | Parameterizable: 0.1 / 0.5 / 3 / 15 ms |
| Protection | Reverse polarity protection; electronic short-circuit protection |
| Packing unit | 5 units per packing unit |
| Product lifecycle | Product cancellation |
Key Features
4 digital inputs with a 24 V DC rated input voltage and IEC 61131 type 1 input characteristic.
Supports 2-wire sensors, with short-circuit diagnostics and a red SF group-error LED.
Standard inputs have parameterizable delay values of 0.1 / 0.5 / 3 / 15 ms.

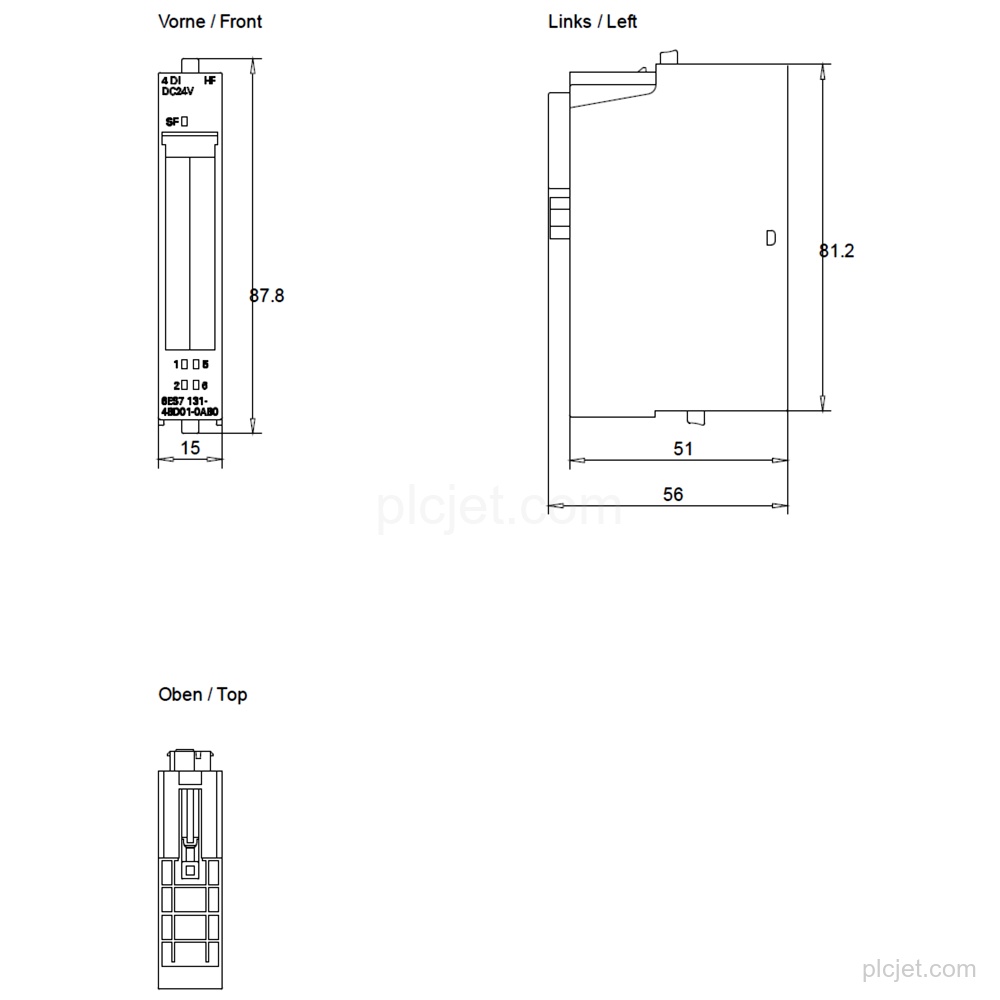

Width: 15 mm; height: 81 mm; depth: 52 mm.
Rated value: 24 V DC from the power module; reverse polarity and electronic short-circuit protection are provided.
5 units per packing unit. Product cancellation.
Frequently Asked Questions
What is the exact product type?
It is a Siemens SIMATIC DP electronic module for ET 200S, order number 6ES7131-4BD01-0AB0.
How many digital inputs does the module have?
It has 4 digital inputs with a 24 V DC rated input voltage.
Which encoder can be connected?
A 2-wire sensor can be connected; its permissible quiescent current is max. 1.5 mA.
What are the module dimensions?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
What configuration detail should be included in a quotation request?
Include the requested quantity, destination, schedule context, and any additional BOM lines.
