Product Overview
Technical Summary
| Digital outputs | 2 source outputs (PNP, current-sourcing) |
|---|---|
| Rated load voltage | 24 V DC; from power module |
| Rated output current | 2 A for signal "1" |
| Output current permissible range | 7 mA to 2.4 A for signal "1" |
| Short-circuit protection | Yes |
| Packing unit | 5 electronic modules |
| Product lifecycle | Product cancellation |
Key Features
Digital outputs
2 source outputs (PNP, current-sourcing) with short-circuit protection.
Load voltage
Rated load voltage L+: 24 V DC from the power module.
Output current
Rated output current for signal "1": 2 A; permissible range: 7 mA to 2.4 A.

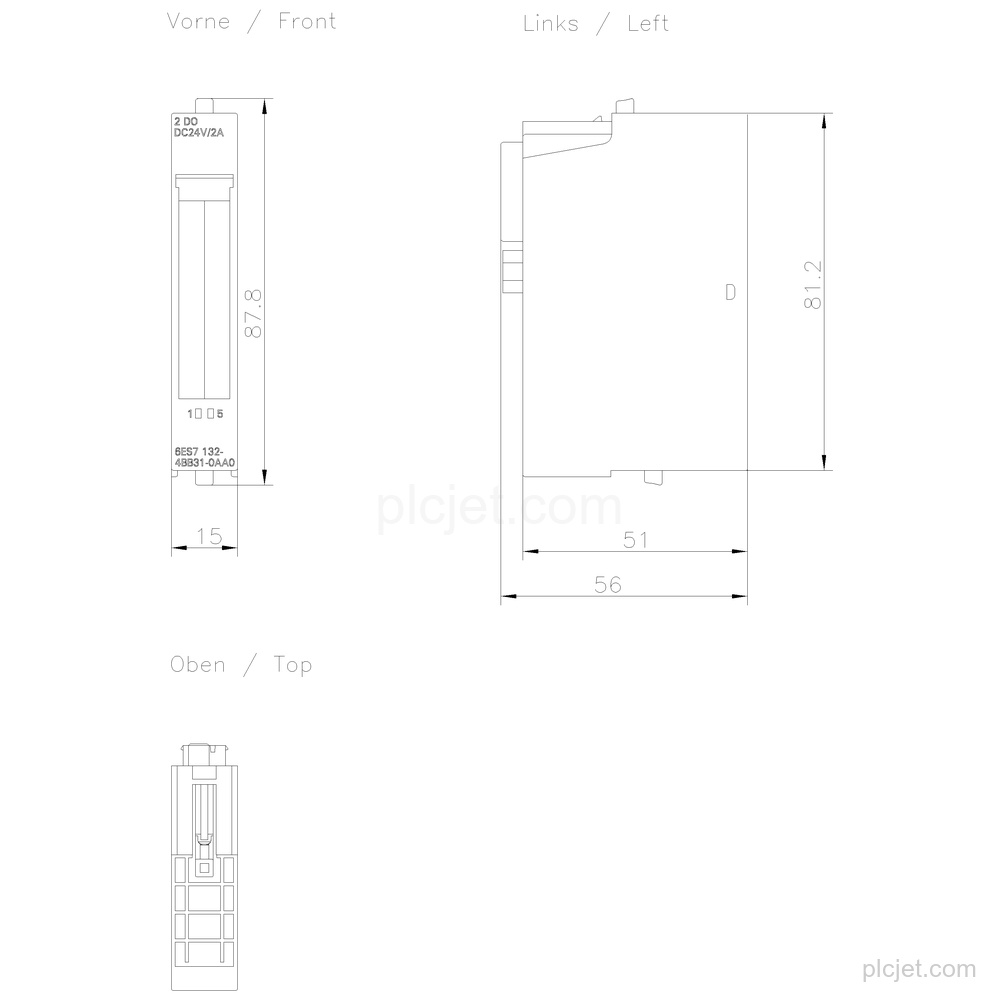

Module dimensions
Width: 15 mm; height: 81 mm; depth: 52 mm.
Packing unit
5 electronic modules per packing unit.
Product lifecycle
Product cancellation.
Frequently Asked Questions
What is the exact configuration of Siemens 6ES7132-4BB31-0AA0?
It is a SIMATIC DP spare part for ET 200S with 2 source digital outputs, 24 V DC rated load voltage, and 15 mm width.
What output current does the 6ES7132-4BB31-0AA0 provide?
The rated output current for signal "1" is 2 A, with a permissible range from 7 mA to 2.4 A.
Does the 6ES7132-4BB31-0AA0 include 5 modules?
It is described as 5 electronic modules per packing unit.
