Product Overview
Technical Summary
| Digital output type | Source output (PNP, current-sourcing) |
|---|---|
| Number of digital outputs | 2 |
| Rated load voltage L+ | 24 V DC; From power module |
| Output current for signal "1", rated value | 2 A |
| Output current for signal "1", permissible range | 7 mA to 2.4 A |
| Output delay with resistive load | "0" to "1": max. 100 μs; "1" to "0": max. 400 μs |
| Switching frequency with resistive load | max. 100 Hz |
| Total output current per module | max. 4 A |
| Diagnostics | Wire break and short-circuit, channel by channel; group error SF (red) LED |
Key Features
2 source outputs (PNP, current-sourcing) with 2 A rated output current for signal "1".
24 V DC rated load voltage supplied from the power module.
Short-circuit and wire-break diagnostics are available channel by channel; a red group error SF LED is provided.
Short-circuit protection is available, with substitute values connectable as 0/1.

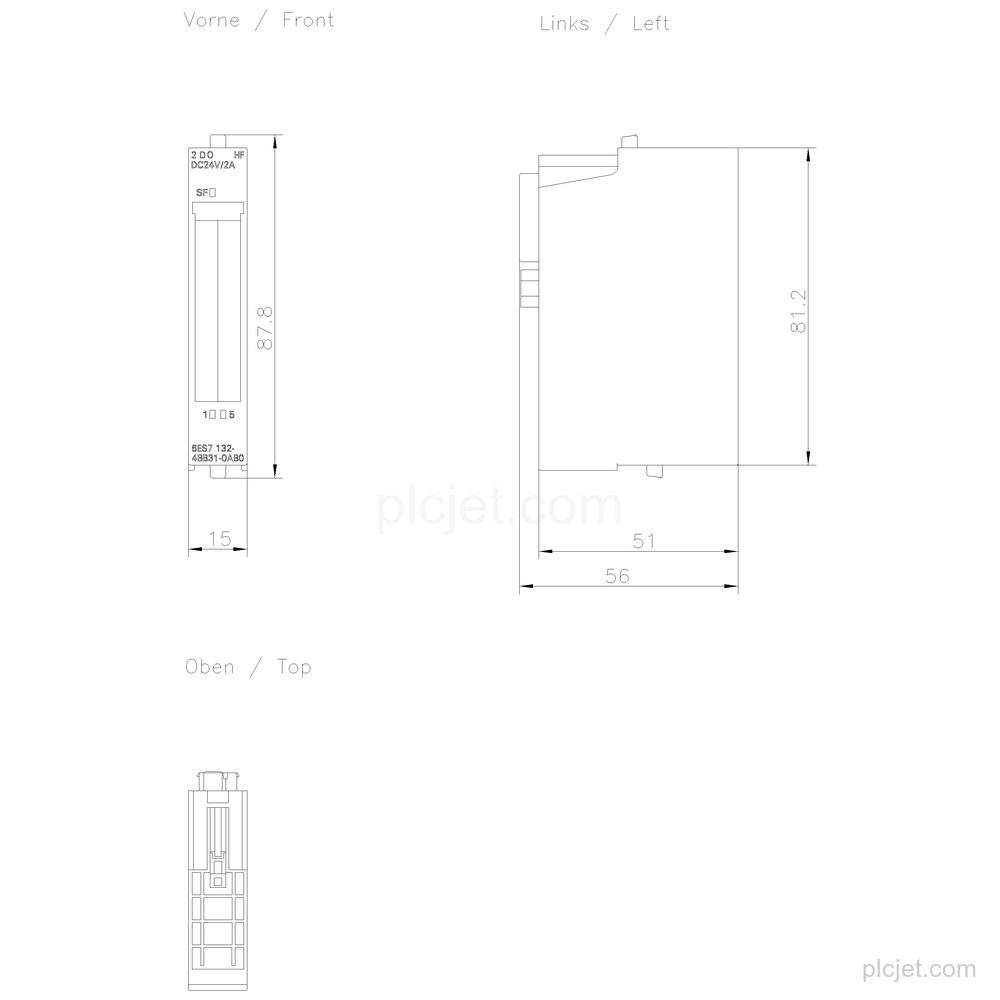

15 mm width, 81 mm height, and 52 mm depth.
Product cancellation.
Frequently Asked Questions
What is the exact line item?
It is Siemens 6ES7132-4BB31-0AB0, a spare part with 2 source digital outputs.
What load voltage does the module use?
The rated load voltage is 24 V DC from the power module.
What diagnostics are available?
Wire-break and short-circuit diagnostics are available channel by channel, with a red group error SF LED.
What are the module dimensions?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
Can this line item be included in a quotation request?
Yes. Submit the requested quantity, destination, schedule context, and any additional BOM lines.
