Product Overview
Applications
Controls a digital input.
Technical Summary
| Product type | SIMATIC DP spare part for ET 200S |
|---|---|
| Digital outputs | 4 source outputs (PNP, current-sourcing) |
| Rated load voltage | 24 V DC; from power module |
| Rated output current | 0.5 A for signal "1" |
| Output current range | 7 mA to 600 mA for signal "1" |
| Short-circuit protection | Yes |
| Packing unit | 5 units |
| Product lifecycle | Product cancellation |
Key Features
4 source outputs (PNP, current-sourcing) with short-circuit protection.
24 V DC from the power module.
0.5 A rated value for signal "1"; permissible range: 7 mA to 600 mA.

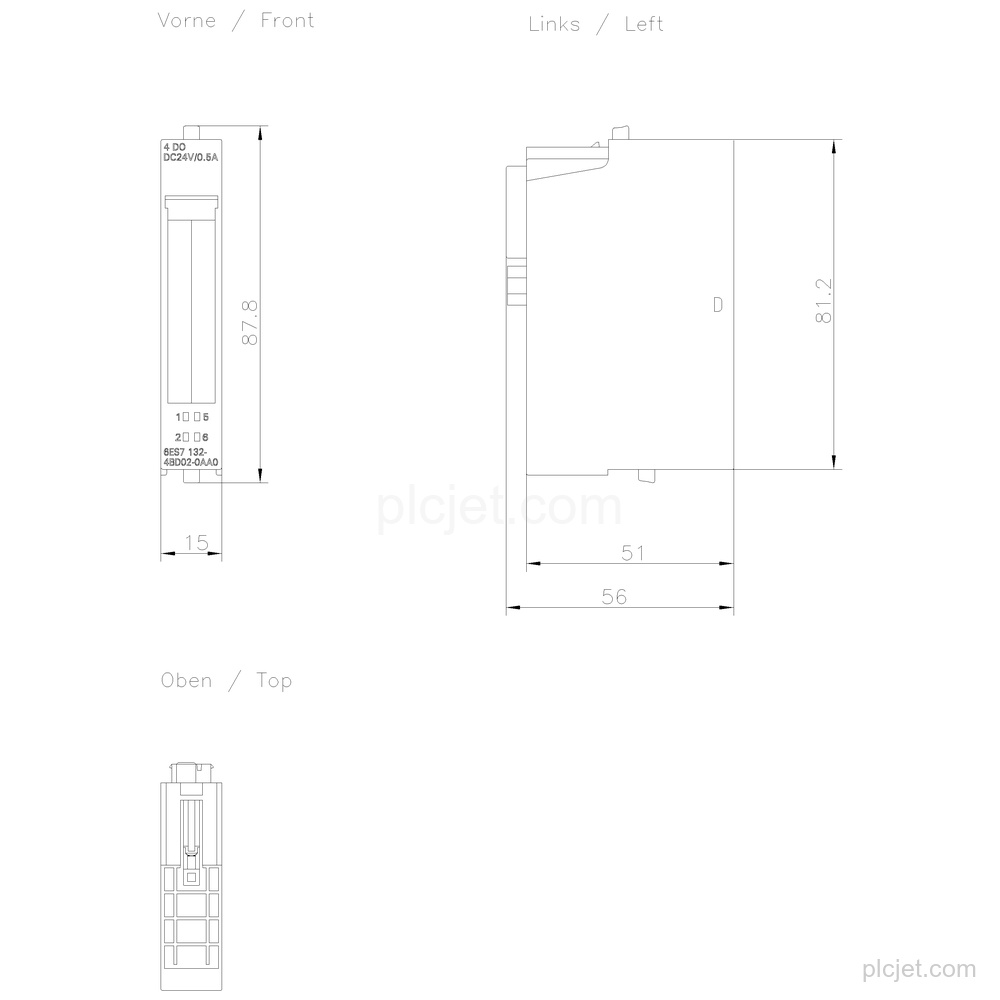

15 mm width, 81 mm height, and 52 mm depth.
5 units per packing unit.
Product cancellation.
Frequently Asked Questions
What is Siemens 6ES7132-4BD02-0AA0?
It is a SIMATIC DP spare part with 5 electronic modules for ET 200S, 4 source digital outputs, 15 mm width, and 5 units per packing unit.
What load voltage does it use?
The rated load voltage is 24 V DC from the power module.
What output current is supported?
The rated output current for signal "1" is 0.5 A, with a permissible range from 7 mA to 600 mA.
Is short-circuit protection provided?
Yes, the digital outputs have short-circuit protection.
How should this line item be requested?
Provide the requested quantity and destination, and identify any additional BOM lines for the project quotation.
