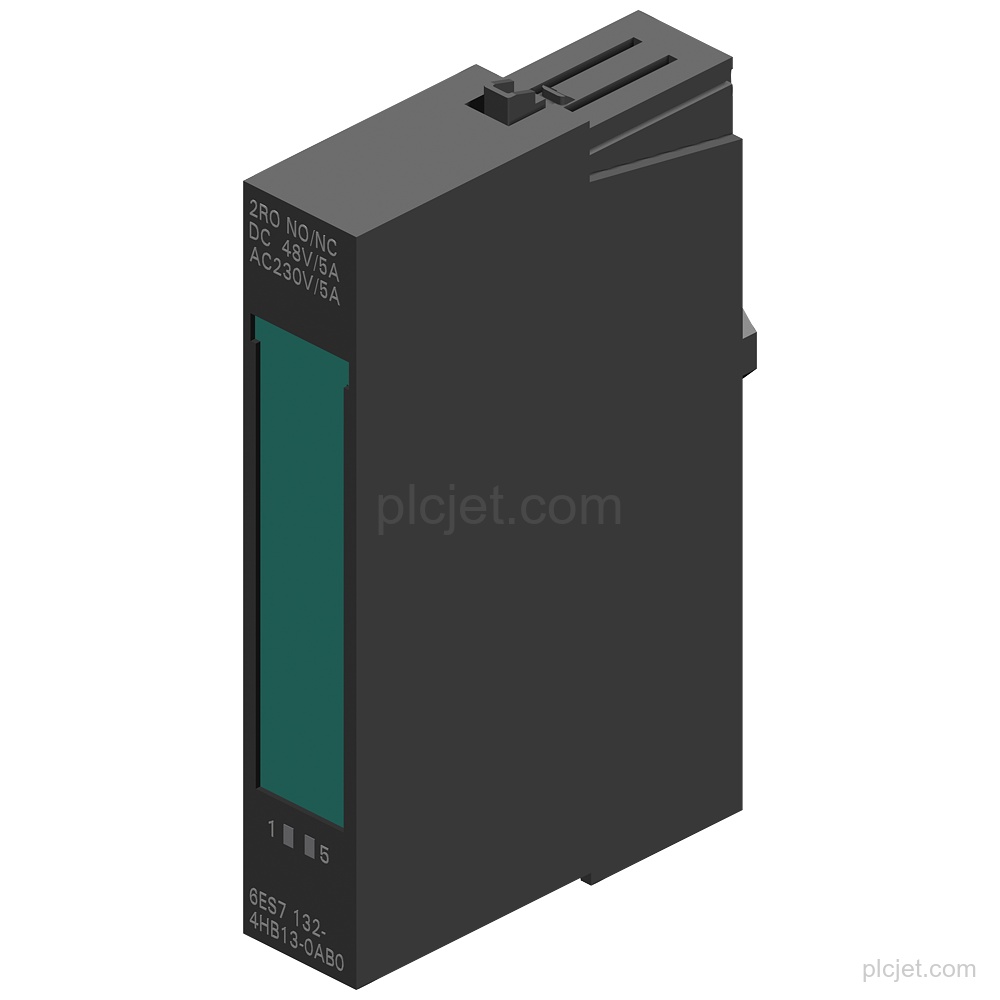

Product Overview
Technical Summary
| Product type | SIMATIC DP electronic module for ET 200S |
|---|---|
| Digital outputs | 2 relay outputs |
| Output contacts | Isolated change-over contacts |
| Load voltage | 24 V rated value (DC), from power module |
| Output current | 5 A rated value for signal "1" |
| Switching frequency | 2 Hz max. with resistive load; 0.5 Hz max. with inductive load; 2 Hz max. on lamp load |
| Mounting load | Horizontal installation: 5 A per channel up to 50 °C; 4 A per channel up to 60 °C |
| Packing unit | 5 units per packing unit |
Key Features
2 digital relay outputs with isolated change-over contacts.
24 V-48 V DC/5 A and 24 V-230 V AC/5 A.
Substitute values are connectable: 0/1.
The relay outputs have no short-circuit protection and must be fused externally with 6 A.

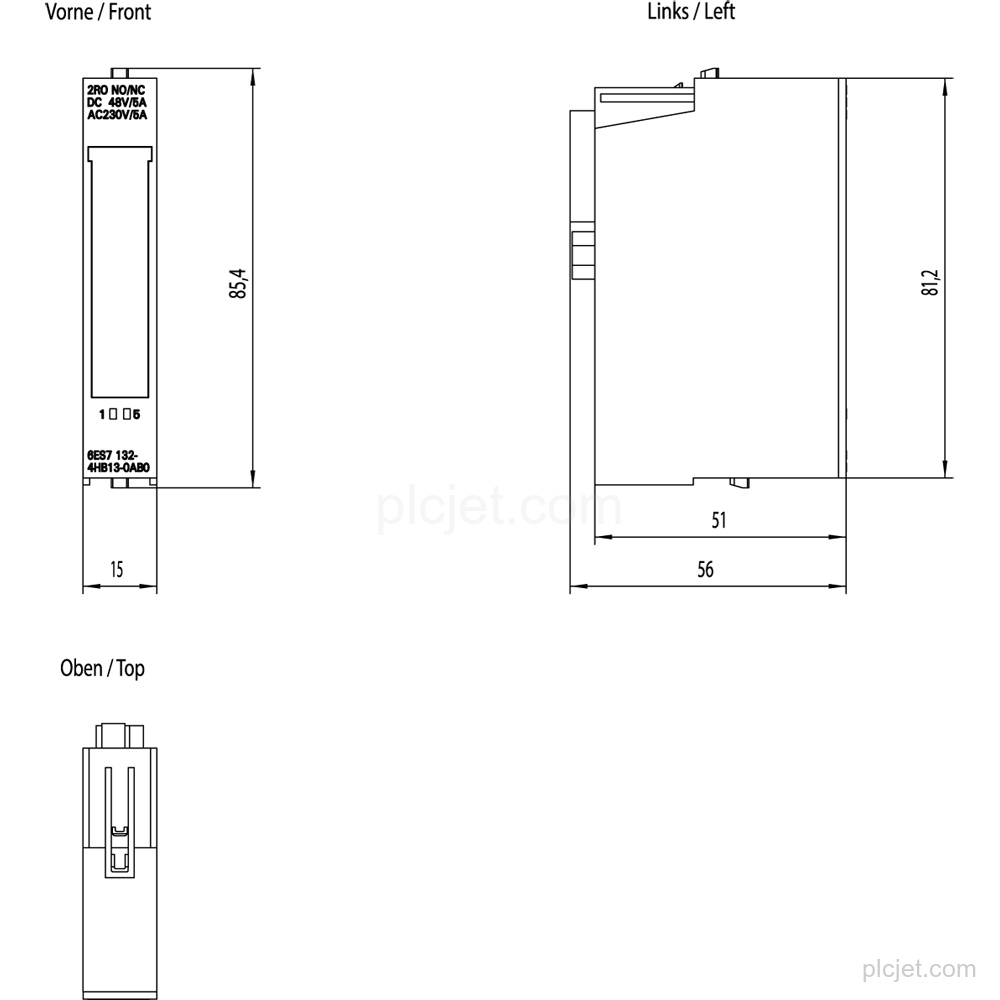

Width: 15 mm.
Product cancellation.
Frequently Asked Questions
What is Siemens 6ES7132-4HB13-0AB0?
It is a SIMATIC DP ET 200S electronic module with 2 relay outputs per module and isolated change-over contacts.
What output ratings does this relay module have?
It supports 24 V-48 V DC/5 A and 24 V-230 V AC/5 A.
Does the module include short-circuit protection?
No. The relay outputs must be fused externally with 6 A.
