Product Overview
Technical Summary
| Product type | SIMATIC DP ET 200S electronics module |
|---|---|
| Analog inputs | 2 |
| Input ranges | 1 V to 5 V; -10 V to +10 V; -2.5 V to +2.5 V; -5 V to +5 V |
| Resolution | Maximum 16 bit; 15 bit: 1 V to 5 V and ±2.5 V; 16 bit: ±10 V and ±5 V |
| Rated load voltage | 24 V DC |
| Module cycle time | 0.1 ms |
| Maximum cycle time, all channels | 250 μs |
| Conversion time per channel | 15 μs |
| Protection | Reverse polarity protection: Yes |
| Product lifecycle | Product cancellation |
| Product status | Spare part |
Key Features
2 analog voltage inputs.
Maximum resolution is 16 bit; 15 bit applies to 1 V to 5 V and ±2.5 V ranges, while 16 bit applies to ±10 V and ±5 V ranges.
24 V DC, with reverse polarity protection.
0.1 ms module cycle time; maximum cycle time for all channels is 250 μs.

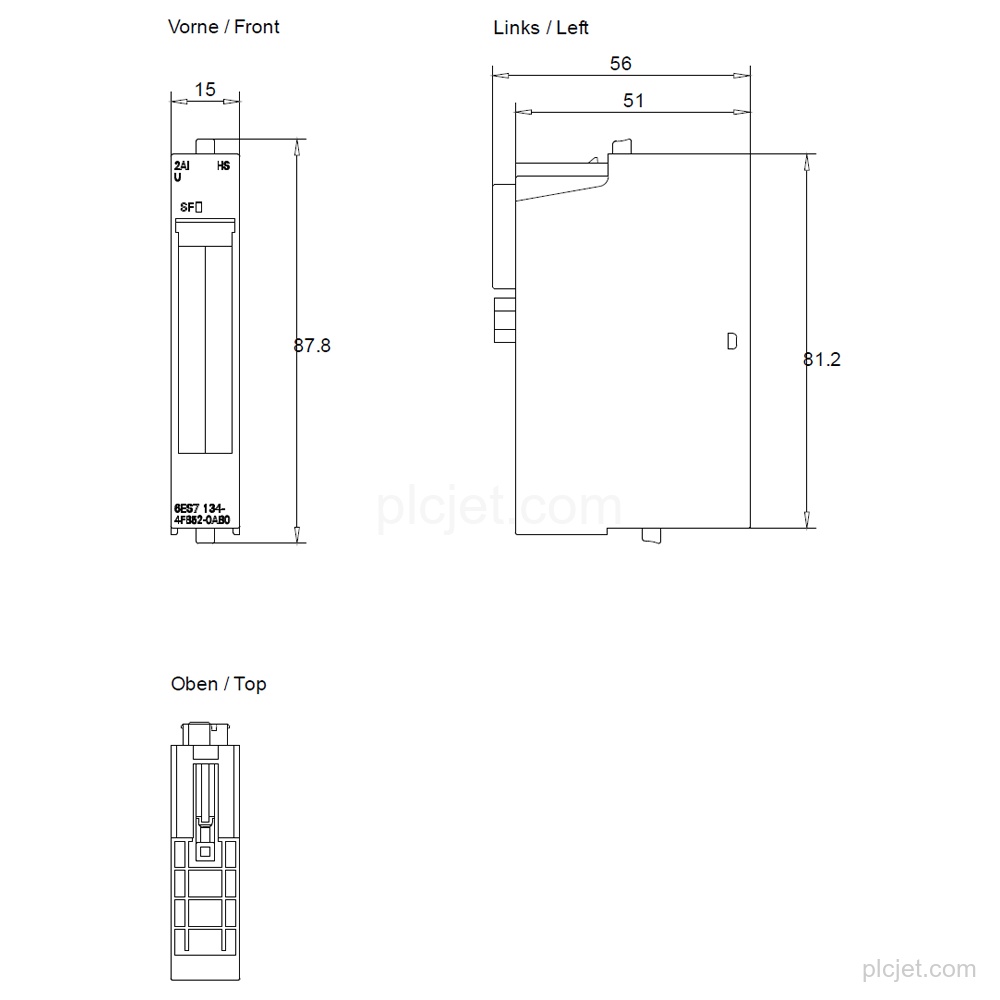

15 mm width, 81 mm height, and 52 mm depth.
Product cancellation; supplied as a spare part.
Frequently Asked Questions
What is the exact module configuration?
It is the Siemens SIMATIC DP ET 200S electronics module 6ES7134-4FB52-0AB0 with 2 analog voltage inputs, 15 mm width, and a 0.1 ms module cycle time.
What input ranges does the module support?
It supports 1 V to 5 V, -10 V to +10 V, -2.5 V to +2.5 V, and -5 V to +5 V voltage ranges.
What is the rated load voltage?
The rated load voltage is 24 V DC, with reverse polarity protection.
What resolution is available?
Maximum resolution is 16 bit; 15 bit applies to 1 V to 5 V and ±2.5 V, and 16 bit applies to ±10 V and ±5 V.
