Product Overview
Applications
Measures temperature using supported B, E, J, K, L, N, R, S, and T thermocouples.
Supports voltage measurement with a rated input range of -80 mV to +80 mV.
Technical Summary
| Product type | SIMATIC DP electronics module for ET 200S, 4 AI TC |
|---|---|
| Input capacity | 4 analog inputs |
| Rated voltage input range | -80 mV to +80 mV |
| Thermocouple types | B, E, J, K, L, N, R, S, T |
| Resolution | 16 bit; 15 bit + sign |
| Rated load voltage | 24 V DC; from power module |
| Conversion time | 65 ms; 55 / 65 ms with an additional 20 ms on activated wire-break test |
| External temperature compensation | Possible, one external compensating box per channel |
| Protection and diagnosis | Reverse polarity protection; wire break, group error, and overflow/underflow diagnoses |
| Lifecycle | Product cancellation |
Key Features
4 analog inputs for thermocouples and voltage measurement.
Rated voltage input range: -80 mV to +80 mV; input resistance: 1 MΩ.
Supports types B, E, J, K, L, N, R, S, and T.
Resolution with overrange: 16 bit; 15 bit + sign. Conversion time per channel: 65 ms; 55 / 65 ms with an additional 20 ms on activated wire-break test.

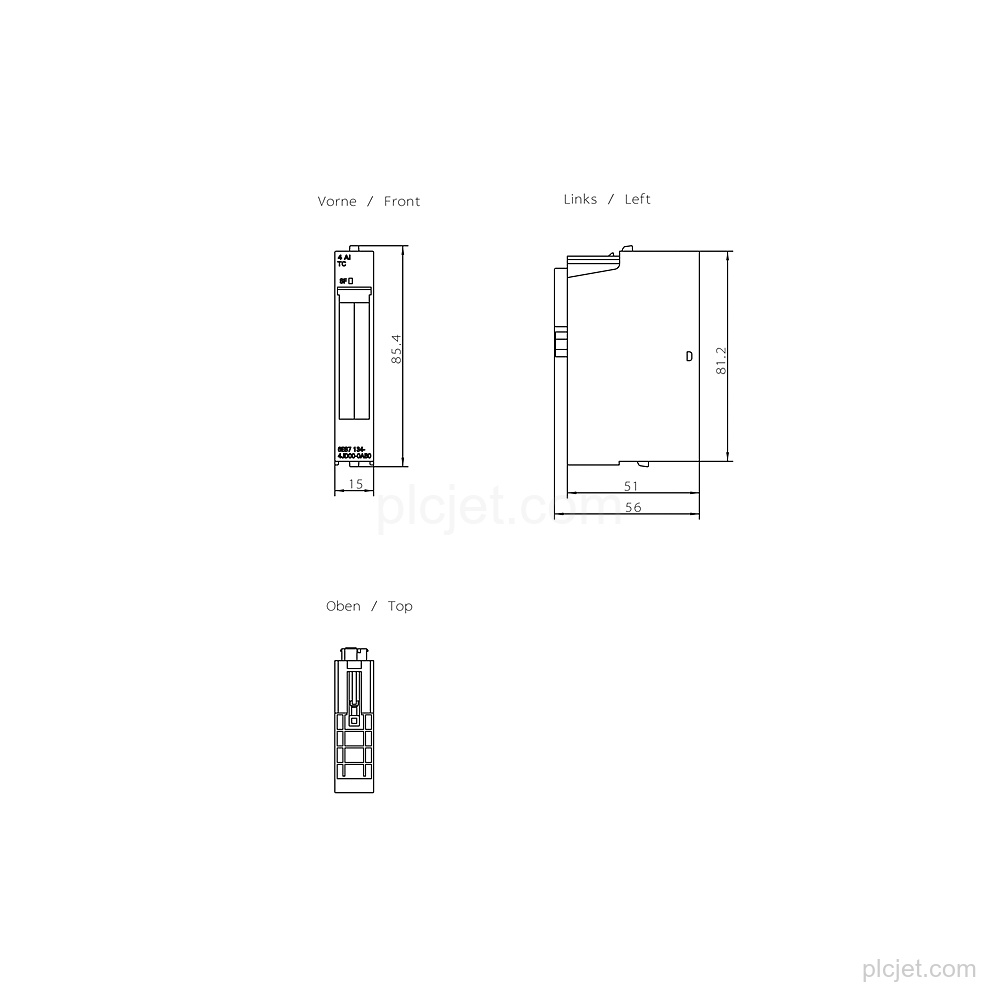

Rated load voltage: 24 V DC from the power module. Width: 15 mm; height: 81 mm; depth: 52 mm; weight, approx.: 40 g.
Frequently Asked Questions
What is the exact Siemens line item?

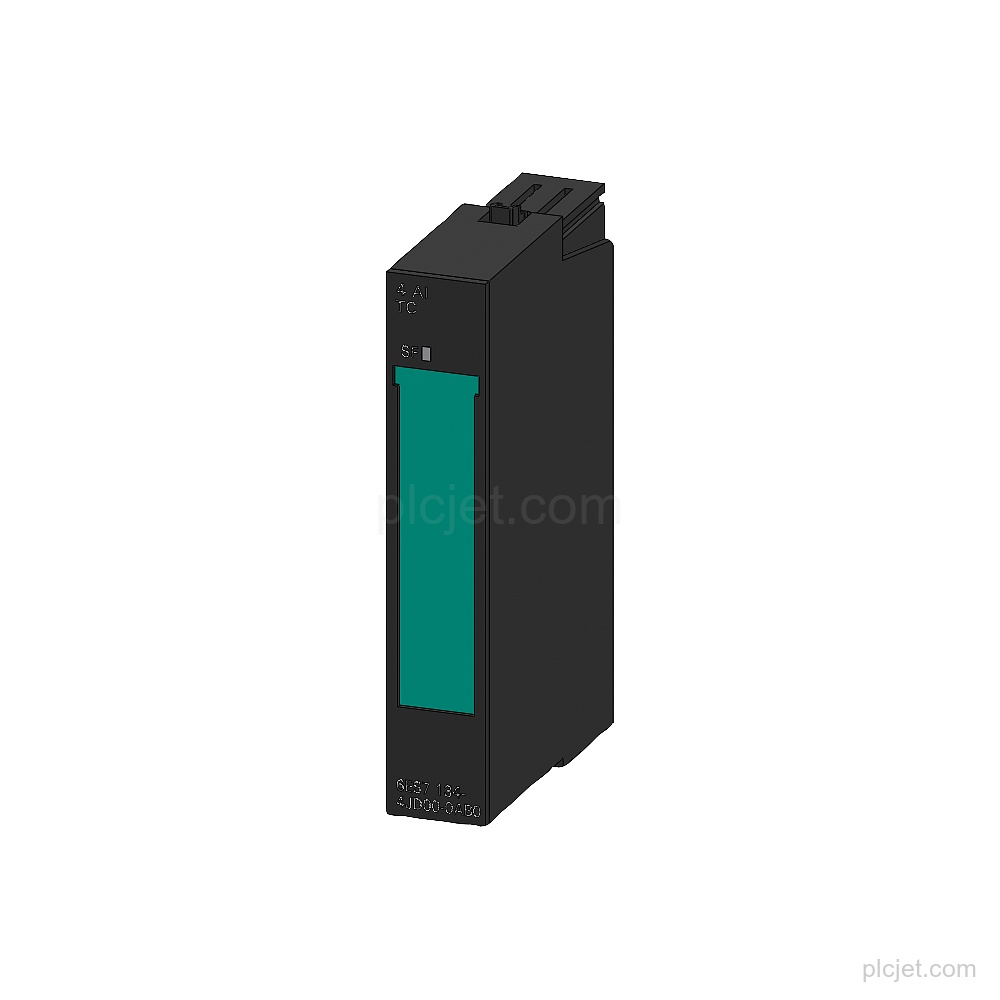

It is Siemens 6ES7134-4JD00-0AB0, a SIMATIC DP electronics module for ET 200S and a spare part.
Which input signals does the module support?
It has 4 analog inputs for voltage measurement and thermocouple types B, E, J, K, L, N, R, S, and T.
Does it include internal temperature compensation?
Internal temperature compensation is not possible. External temperature compensation is possible, with one external compensating box per channel.
What configuration details should accompany a quotation request?
Please provide the requested quantity, destination, schedule context, and any additional BOM lines.
