Measures temperature through supported thermocouple types B, C, E, J, K, L, N, R, S and T.
Technical Summary
| Order number | 6ES7134-4NB01-0AB0 |
|---|---|
| Module type | SIMATIC DP electronics module for 2AI TC |
| Analog inputs | 2 |
| Rated load voltage | 24 V DC; From power module |
| Thermocouple input range | -80 mV to +80 mV |
| Resolution with overrange | 16 bit including sign, max. |
| Internal temperature compensation | Yes |
| Product lifecycle | Product cancellation |
Key Features
The module has 2 analog inputs for thermocouple measurement.
It supports -80 mV to +80 mV input ranges and thermocouple types B, C, E, J, K, L, N, R, S and T, with 16 bit resolution including sign.
Internal temperature compensation is supported; external compensation is possible with one external compensating box per channel.

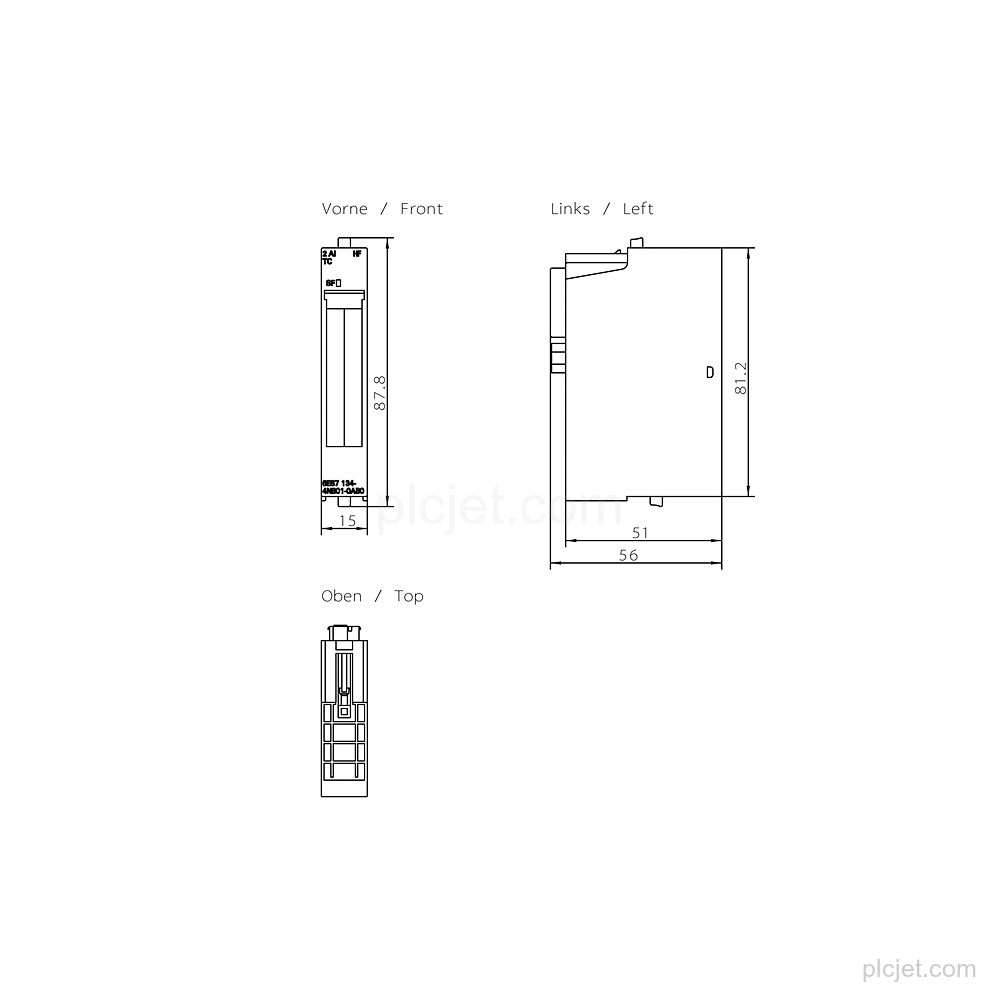

The module is 15 mm wide, 81 mm high and 52 mm deep, with an approximate weight of 40 g.
The integrating measurement principle provides parameterizable digital filtering in four stages.
Product cancellation.
Frequently Asked Questions
What is the exact Siemens line item?
The exact line item is Siemens 6ES7134-4NB01-0AB0, a SIMATIC DP electronics module for 2AI TC.
How many analog inputs does 6ES7134-4NB01-0AB0 have?
It has 2 analog inputs.
Which thermocouple types are supported?
Supported types are B, C, E, J, K, L, N, R, S and T.
Does the module include internal temperature compensation?
Yes, internal temperature compensation is supported. External compensation is possible with one external compensating box per channel.
