Product Overview
Technical Summary
| Analog outputs | 2 |
|---|---|
| Output ranges | 1 V to 5 V; -10 V to +10 V |
| Cycle time, all channels, max. | 1.5 ms |
| Rated load voltage | 24 V DC; From power module |
| Resolution with overrange, max. | 14 bit; 1 to 5 V: 12 bit, ±10 V: 13 bit + sign |
| Load impedance with voltage outputs, min. | 1 kΩ |
| Voltage output, short-circuit current, max. | 25 mA |
| Product lifecycle | Product cancellation |
Key Features
2 analog voltage outputs with a maximum cycle time of 1.5 ms for all channels.
Supports 1 V to 5 V and -10 V to +10 V; maximum resolution is 14 bit including sign, with 12 bit for 1 V to 5 V and 13 bit + sign for ±10 V.
Rated load voltage is 24 V DC from the power module, with reverse polarity protection and voltage-output short-circuit protection.
Supports two-wire voltage-output connection without compensation of line resistances and four-wire voltage-output connection.

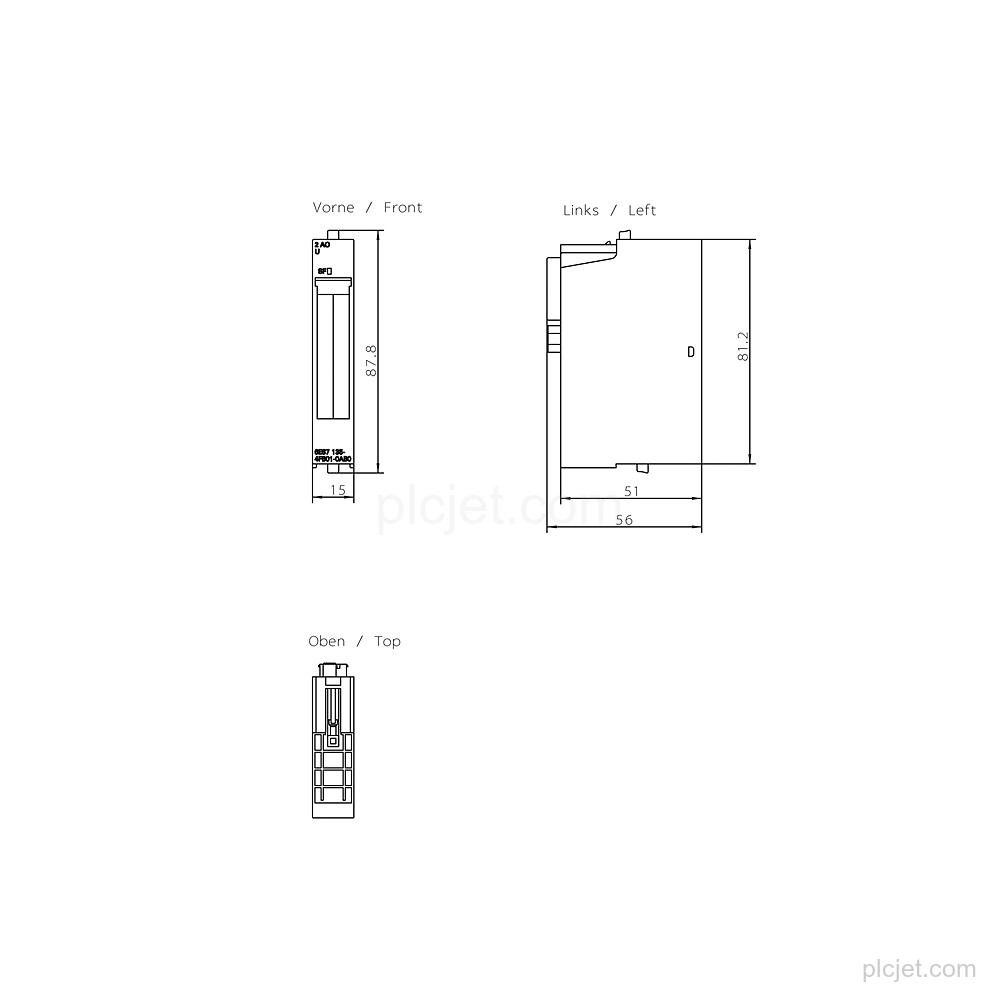

15 mm width, 81 mm height, and 52 mm depth; shielded cable length is up to 200 m.
Product cancellation.
Frequently Asked Questions
What is the exact Siemens line item?
It is Siemens 6ES7135-4FB01-0AB0, a SIMATIC ET200S electronics module.
Which voltage output ranges does it support?
It supports 1 V to 5 V and -10 V to +10 V.
What supply and output protection does it have?
The rated load voltage is 24 V DC from the power module. Reverse polarity protection and voltage-output short-circuit protection are available.
What mounting dimensions should be retained in the quotation?
The module is 15 mm wide, 81 mm high, and 52 mm deep.
