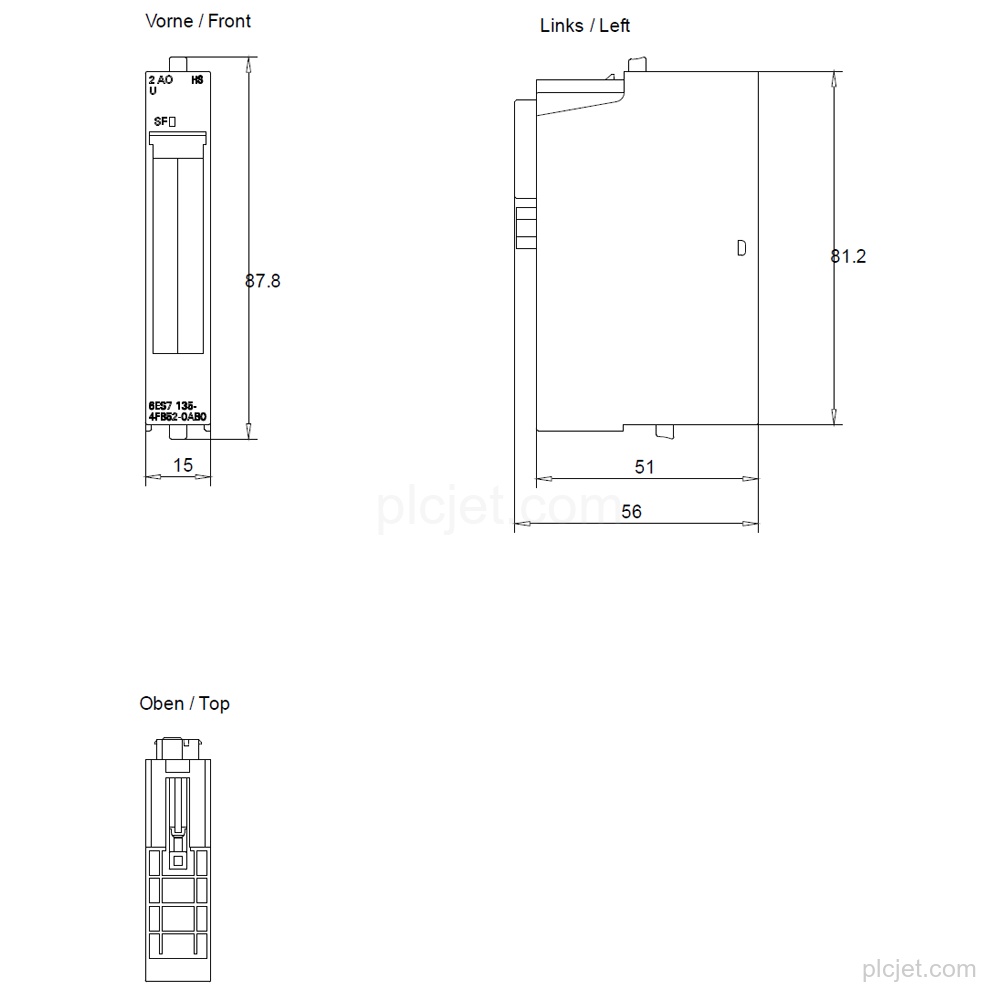

Product Overview
Technical Summary
| Product type | SIMATIC DP electronics module for ET 200S |
|---|---|
| Analog outputs | 2 voltage outputs |
| Output ranges | 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Resolution | 16 bit including sign, maximum with overrange |
| Supply | 24 V DC from power module |
| Cycle time | 0.25 ms maximum, all channels |
| Load impedance | 1 kΩ minimum with voltage outputs |
| Connection | Two-wire or four-wire voltage-output connection |
| Protection | Reverse polarity and voltage-output short-circuit protection |
| Lifecycle | Product cancellation |
Key Features
2 analog voltage outputs with a maximum cycle time of 0.25 ms for all channels.
Supports 1 V to 5 V, -5 V to +5 V and -10 V to +10 V.
Maximum resolution with overrange is 16 bit including sign; 1 to 5 V: 14 bit, ±10 V: 15 bit + sign, ±5 V: 14 bit + sign.
Rated load voltage L+ is 24 V DC from the power module, with reverse polarity protection and voltage-output short-circuit protection.
Supports two-wire voltage-output connection without compensation of line resistances and four-wire voltage-output connection.
Product cancellation.
Frequently Asked Questions
What is the exact product identity?
It is the Siemens SIMATIC DP electronics module 6ES7135-4FB52-0AB0 for ET 200S, with 2 analog voltage outputs.
Which voltage output ranges does this module support?
It supports 1 V to 5 V, -5 V to +5 V and -10 V to +10 V.
What supply and load conditions are specified?
The rated load voltage L+ is 24 V DC from the power module. Load impedance with voltage outputs is 1 kΩ minimum.
Which connection options are available for the actuators?
The module supports two-wire voltage-output connection without compensation of line resistances and four-wire voltage-output connection.
