Product Overview
Technical Summary
| Product type | SIMATIC DP electronics module 2 AO I High Feature for ET 200S; spare part |
|---|---|
| Analog outputs | 2 |
| Cycle time (all channels), max. | 0.5 ms |
| Output ranges, current | -20 mA to +20 mA; 4 mA to 20 mA |
| Load voltage L+, rated value (DC) | 24 V |
| Resolution with overrange, max. | 16 bit including sign |
| Load impedance with current outputs, max. | 500 Ω |
| Product lifecycle | Product cancellation |
Key Features
2 analog current outputs with a maximum cycle time of 0.5 ms for all channels.
Supports -20 mA to +20 mA and 4 mA to 20 mA current output ranges.
Maximum resolution is 16 bit including sign; current relative to output range is (+/-) 0.1 %, with a basic error limit of (+/-) 0.05 % at 25 °C.
24 V DC rated load voltage with reverse polarity protection; input current from load voltage L+, without load, is maximum 80 mA.
Supports two-wire connection for current output; four-wire connection for current output is not supported.

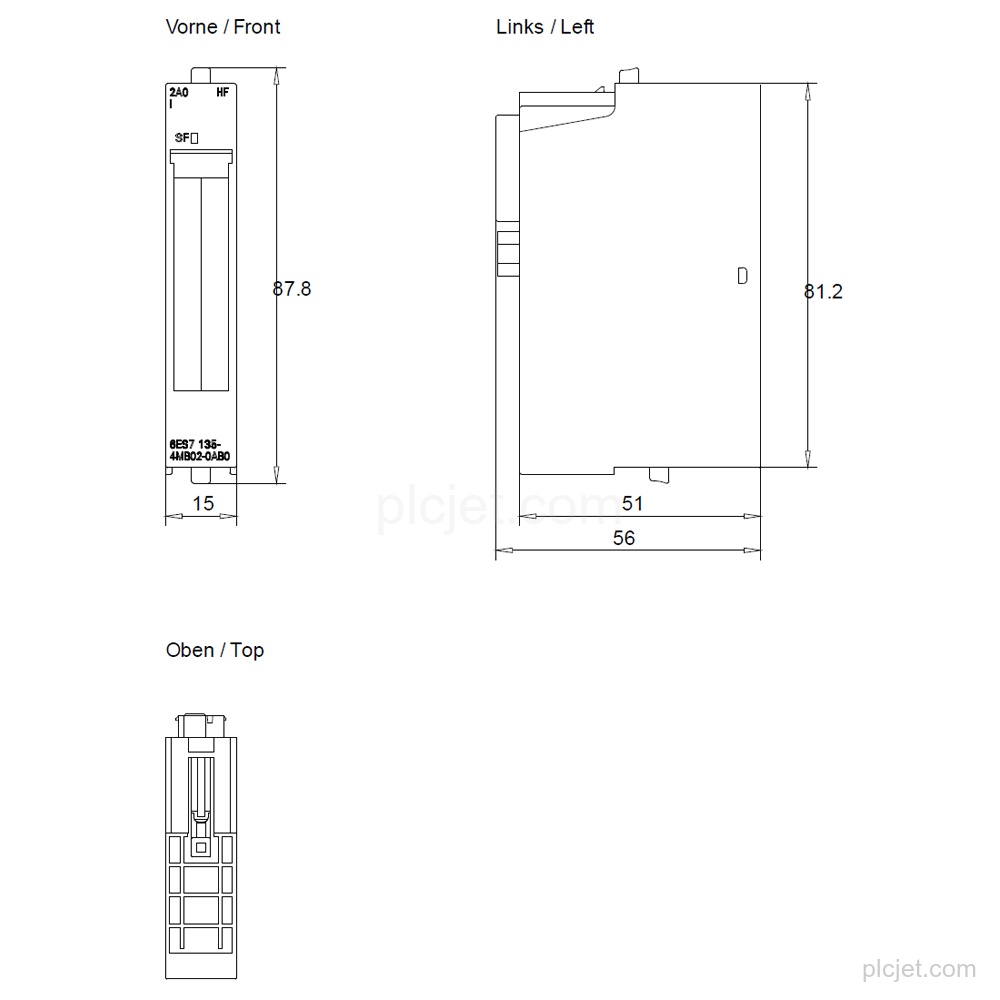

The module has 15 mm width, 81 mm height, 52 mm depth, approximate weight of 40 g, and product lifecycle status Product cancellation.
Frequently Asked Questions
Which exact line item is this module?
It is Siemens 6ES7135-4MB02-0AB0, a SIMATIC DP electronics module 2 AO I High Feature for ET 200S and a spare part.
What current output ranges and connection type does it support?
It supports -20 mA to +20 mA and 4 mA to 20 mA output ranges, with two-wire connection for current output. Four-wire connection for current output is not supported.
What supply and cycle-time values should be retained in the quotation?
The rated load voltage L+ is 24 V DC, and the maximum cycle time for all channels is 0.5 ms.
