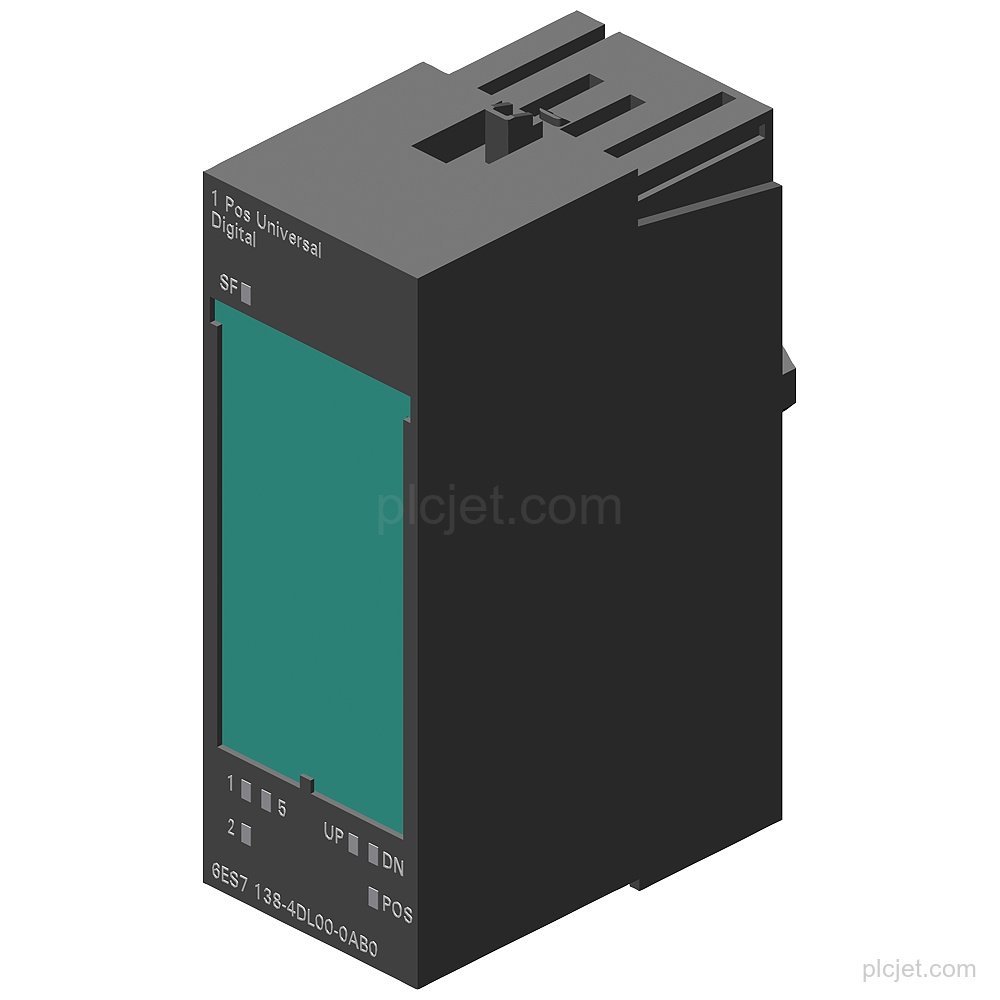

Product Overview
Applications
Used for controlled positioning with digital outputs for 5 V/24 V incremental encoders and SSI encoders.
Technical Summary
| Product | 6ES7138-4DL00-0AB0 |
|---|---|
| Product family | SIMATIC DP electronics module for ET 200S |
| Function | Controlled positioning with digital outputs |
| Connectable encoders | 1 maximum; incremental encoder (symmetrical), incremental encoder (asymmetrical), or absolute encoder (SSI) |
| Rated load voltage | 24 V DC |
| Permissible load-voltage range | 20.4 V to 28.8 V DC |
| Encoder supply | 24 V; 5 V: No; output current, max.: 500 mA |
| Output current for signal "1" | 7 mA to 600 mA for 0 to 60 °C |
| Output switching frequency | 100 Hz maximum with resistive load; 2 Hz maximum with inductive load; 10 Hz maximum on lamp load |
| Product lifecycle | Product cancellation |
Key Features
Electronics module for ET 200S with controlled positioning and digital outputs.
Supports 1 connectable encoder, including symmetrical or asymmetrical incremental encoders and absolute encoders (SSI).
Rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V and reverse polarity protection.
Provides 24 V encoder supply with short-circuit protection and maximum output current of 500 mA; 5 V encoder supply is not available.
Output current for signal "1" is 7 mA to 600 mA for 0 to 60 °C; switching frequency is up to 100 Hz with resistive load.

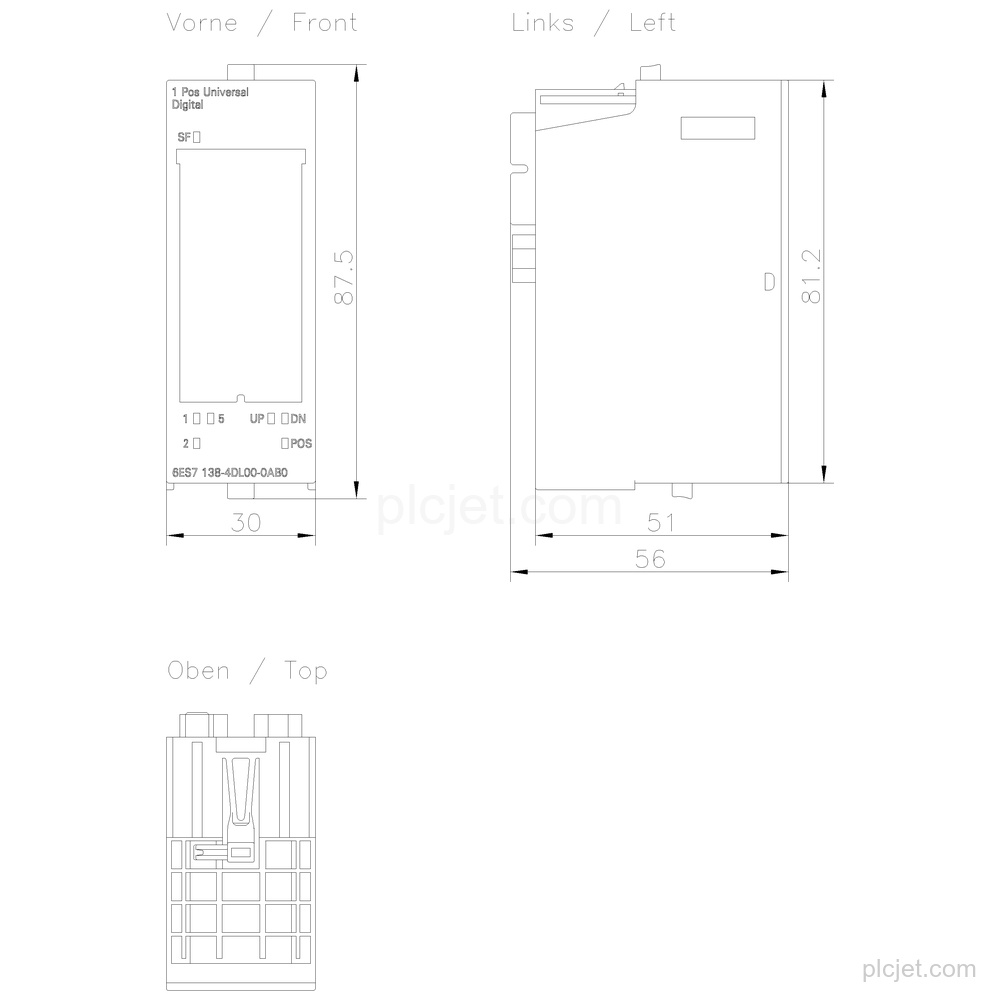

Dimensions are 30 mm wide, 81 mm high, and 52 mm deep; product lifecycle: Product cancellation.
Frequently Asked Questions
What is the exact product identity?
It is 6ES7138-4DL00-0AB0, a SIMATIC DP electronics module for ET 200S.
Which encoder types can this module connect?
It supports 1 connectable encoder: a symmetrical incremental encoder, asymmetrical incremental encoder, or absolute encoder (SSI).
What supply voltage does the module use?
The rated load voltage is 24 V DC, with a permissible range of 20.4 V to 28.8 V DC.
What is the selected encoder-supply configuration?
It has 24 V encoder supply with short-circuit protection and maximum output current of 500 mA. It is without 5 V encoder supply.
Can this line item be included in a quotation request?
Yes. Include the requested quantity, destination, schedule context, and any additional BOM lines when submitting the project or multi-line quotation request.
