Product Overview
Technical Summary
| Product type | SIMATIC DP electronics module for ET 200S, 4 F-DO PROFIsafe |
|---|---|
| Rated load voltage L+ | 24 V DC |
| Digital outputs | 4 transistor outputs |
| Rated output current for signal "1" | 2 A |
| Load resistance range | 12 Ω to 1 kΩ |
| Output switching frequency | 30 Hz max. with resistive load; 0.1 Hz max. with inductive load; 10 Hz max. with lamp load; symmetrical |
| Total output current per group | 6 A max. horizontal installation up to 40 °C; 5 A max. up to 55 °C; 4 A max. up to 60 °C; 4 A max. vertical installation up to 40 °C |
| Safety performance | PLe according to ISO 13849-1; SIL 3 according to IEC 61508; safety class 4 according to EN 954 |
| Potential separation | Between digital outputs and backplane bus: Yes; between channels: No; between channels and load voltage L+: No |
Key Features
4 transistor digital outputs with PROFIsafe; rated output current for signal "1": 2 A.
Rated load voltage L+: 24 V DC; reverse polarity protection: No.
Short-circuit protection and diagnostics function: Yes; wire-break and short-circuit diagnoses: Yes.
Up to PLe according to ISO 13849-1 and SIL 3 according to IEC 61508; safety class 4 according to EN 954.

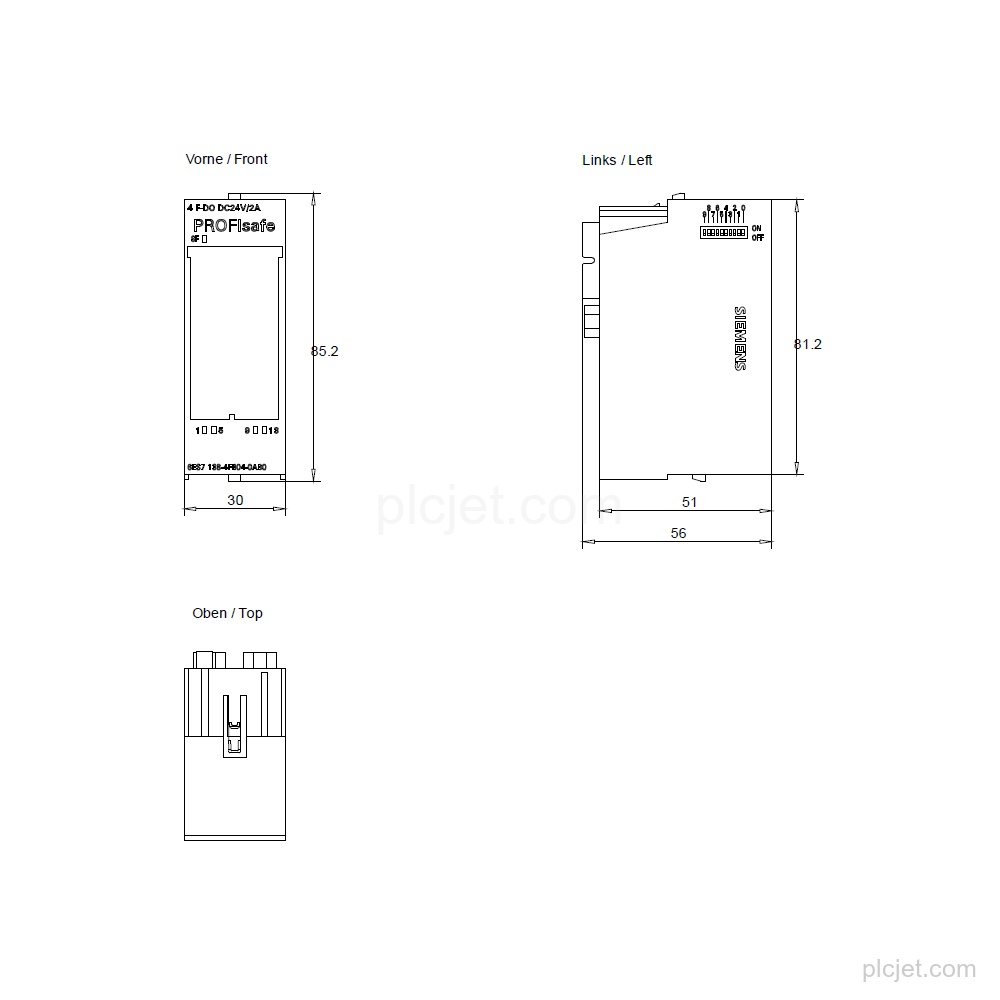

30 mm width, 81 mm height and 52 mm depth; 85 g approximate weight.
Frequently Asked Questions
What is the exact product identity?

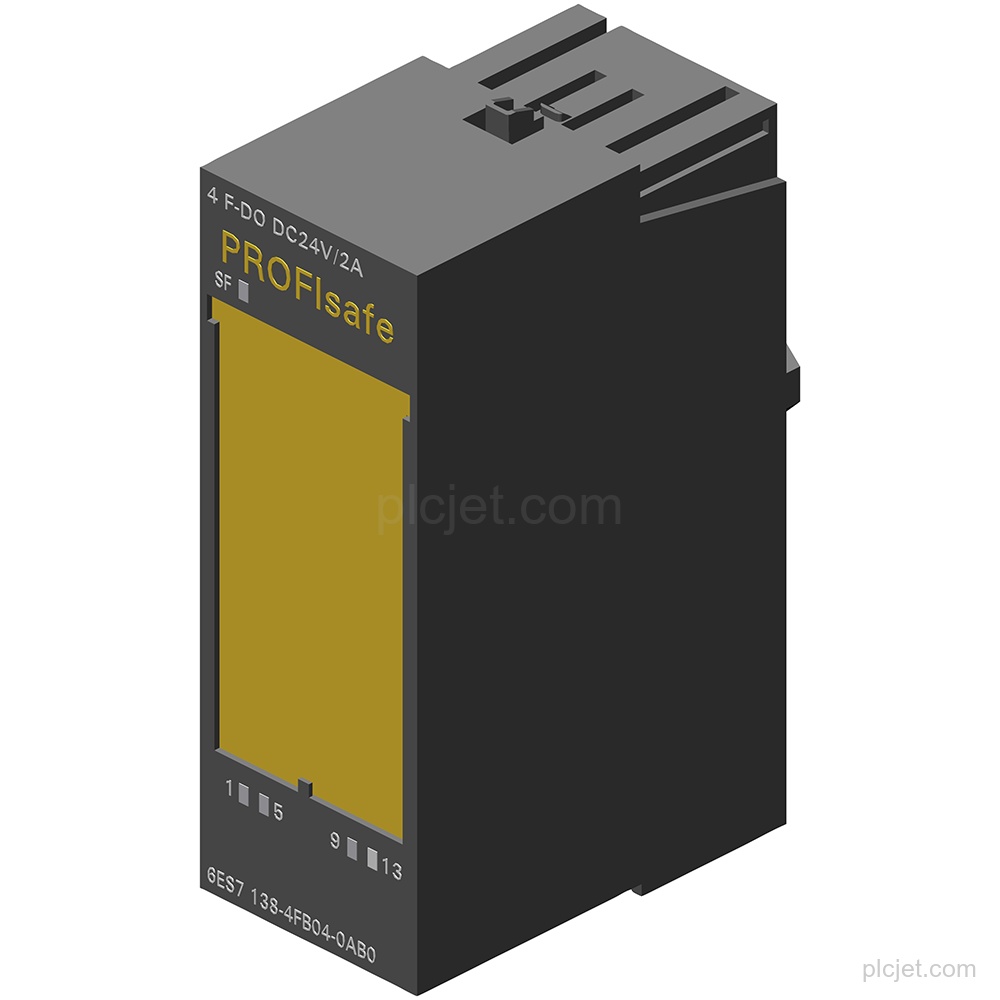

It is the Siemens 6ES7138-4FB04-0AB0 SIMATIC DP electronics module for ET 200S with 4 F-DO PROFIsafe.
What supply voltage does the module use?
Its rated load voltage L+ is 24 V DC, with no reverse polarity protection.
How many digital outputs does it have?
It has 4 transistor digital outputs.
What output current is available for signal "1"?
The rated output current is 2 A, with a permissible range from 20 mA to 2.4 A.
